DJM-V10
1
2 3 4
A
B
C
D
E
F
1
2 3 4
Barrier
(DEC3861)
Barrier
(DEC3860)
Barrier
(DEC3929)

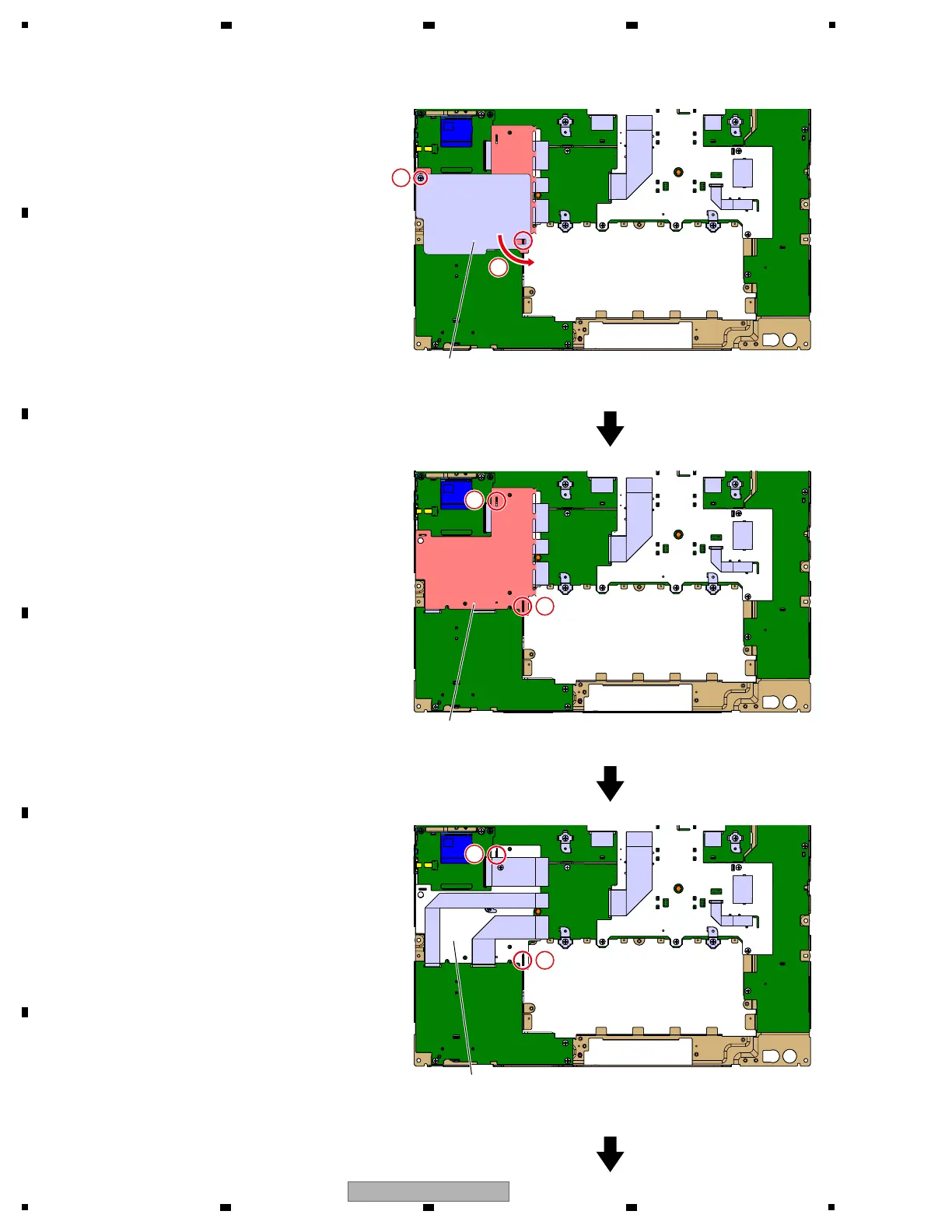

3 Remove the one screw.
(BBZ30P060FTC)
4 Turn the Barrier 90 degrees counterclockwise
and then, unhook the one hook and remove
the Barrier.
5 Unhook the 2 hooks and then remove the
Barrier.
6 Unhook the 2 hooks and then remove the
Barrier.
3
5
5
• Bottom view
• Bottom view
6
6
• Bottom view
4
