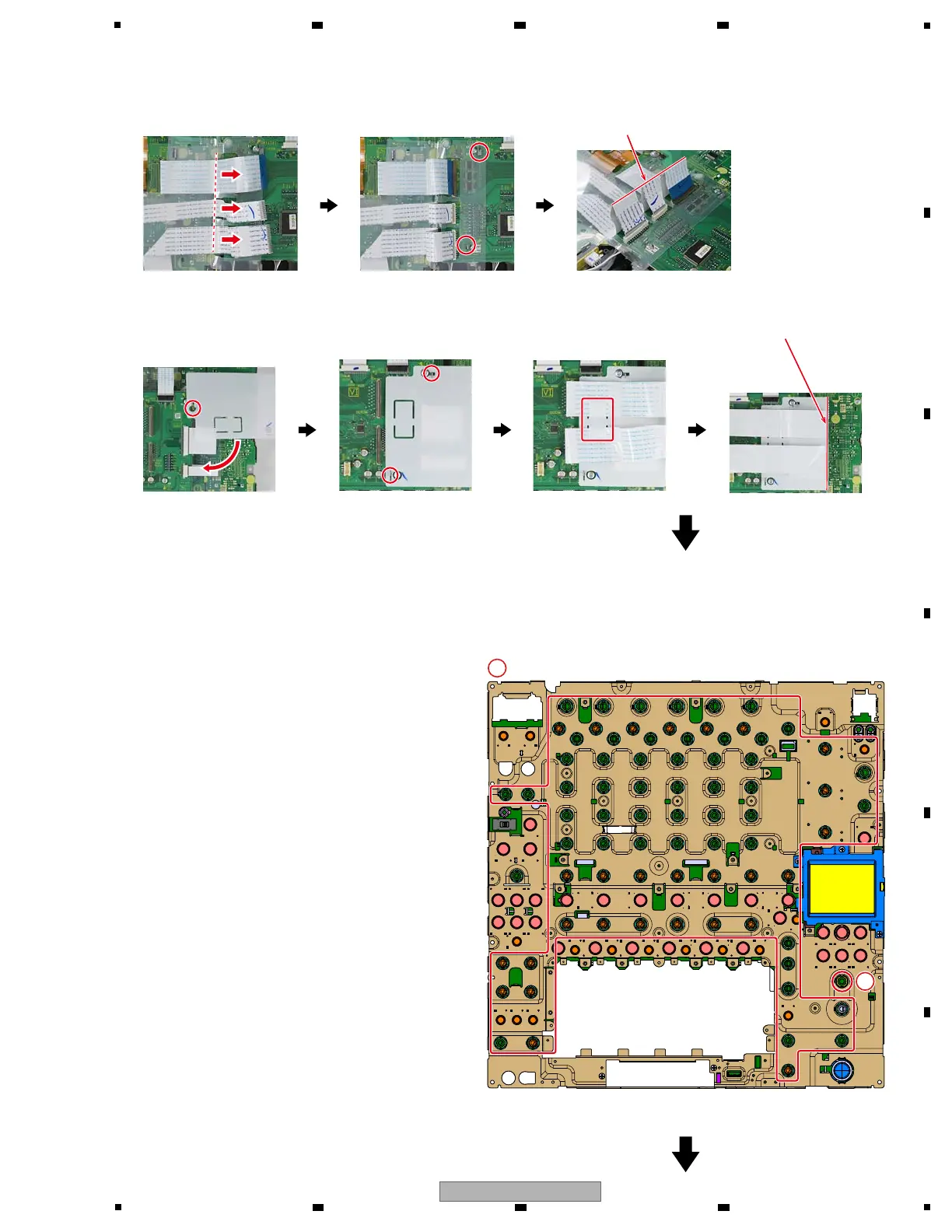

Pass FFC in slit of Barrier.
Attach Barrier.
With hook as the fulcrum,
turn it to the direction
of the arrow.
Put Barrier to the hook. Pass FFC to hook of Barrier Bend FFC to the edge of
Barrier.
Put Barrier to the hook. Bend FFC
[4-8] BFXB Assy
1 Remove the 77 nuts and 77 washers.
2 Remove the one nut.
2
1
×77×77
