AlphaTheta DJM-V10 - Page 98

98
DJM-V10
1
2 3 4
A
B
C
D
E
F
1
2 3 4
UCOM Assy
UCOM Assy
Bend
Bend
Bend
Hook
Bend
Barrier
(DEC3890)
Barrier
(DEC3861)

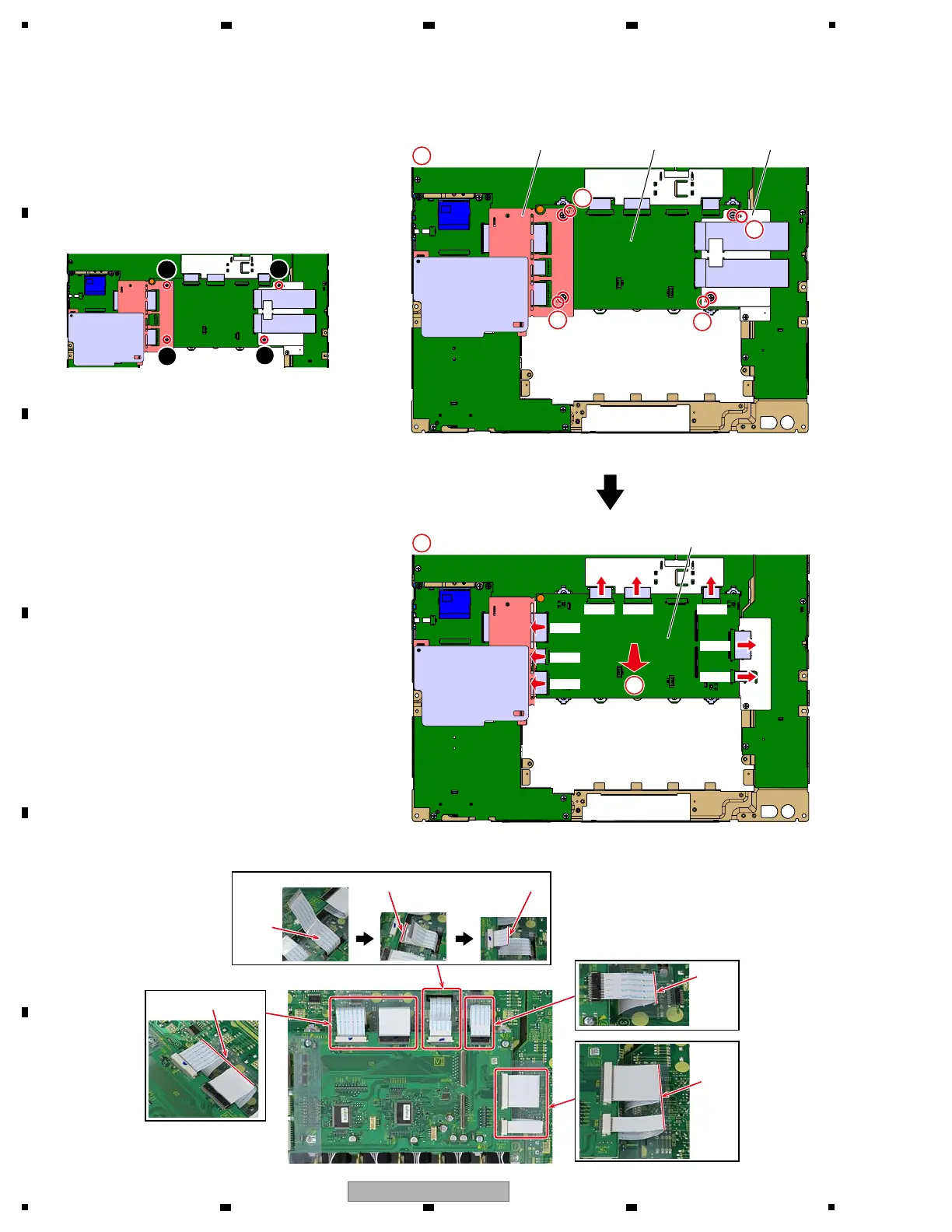

[4-7] UCOM Assy
1 Remove the 4 screws.
(BBZ30P060FTC)
2 Unhook the 2 hooks and then remove the
Barrier.
3 Unhook the 2 hooks of the Barrier.
4 Disconnect the 8 FFCs.
(CN8401, 8402, 8406, 8412, 8414, 8415,
8419, 8420)
5 Remove the UCOM Assy.
CN8415CN8415
CN8401
CN8401
CN8402
CN8402
CN8420
CN8420 CN8406CN8406 CN8412CN8412
CN8414
CN8414
CN8419
CN8419
Bend
1
2
3
3
2
×4×4
4
5
×8×8
g FFC styling
• Bottom view
• Bottom view
1
2
4
3
Screw tightening order
