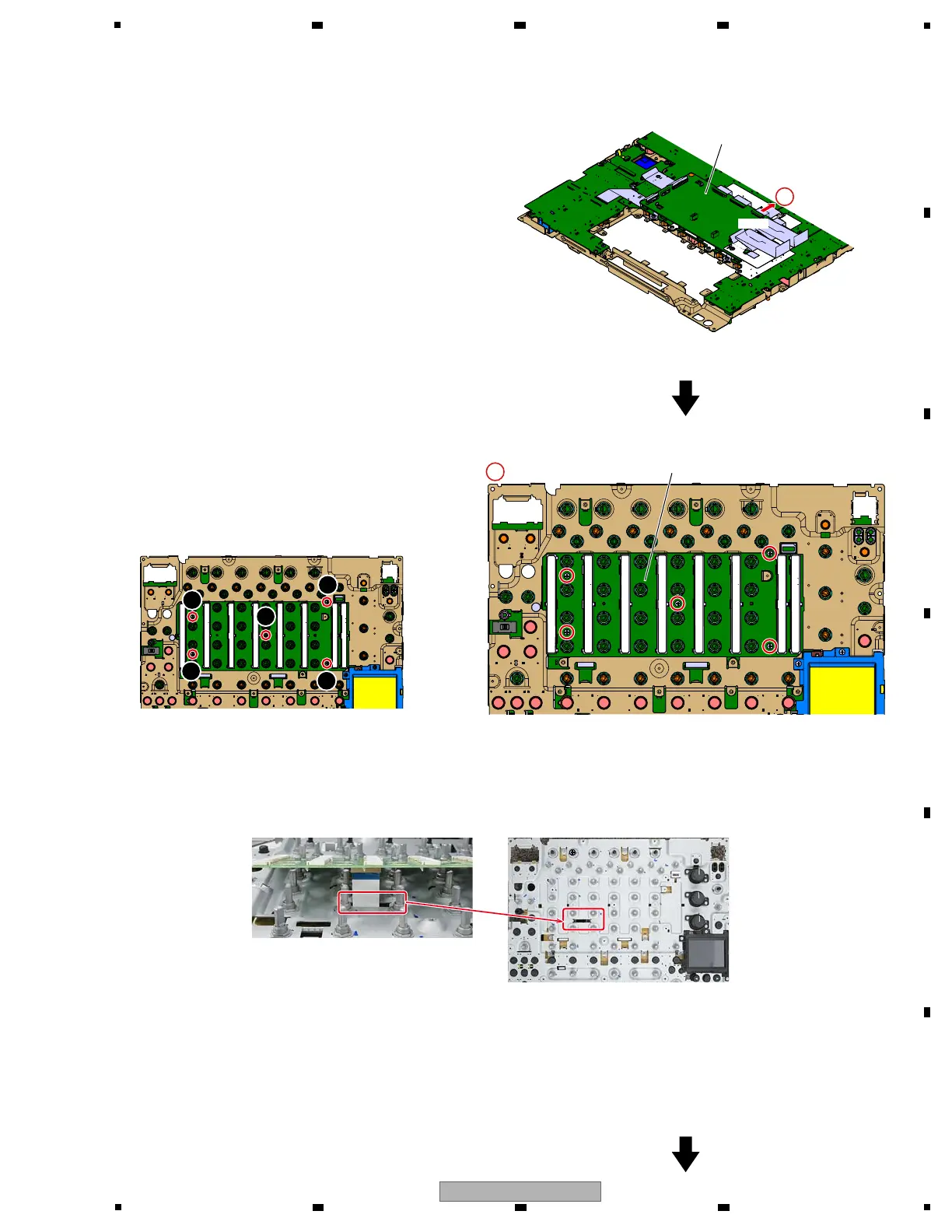

[4-6] LEDB Assy
1 Disconnect the one FFC.
(CN8410)
2 Remove the 5 screws and then remove the
LEDB Assy.
(BBZ30P060FTC)
Attach LEDB Assy to a Panel stay while inserting FFC in the slit of the Panel stay.
UCOM Assy
LEDB Assy
CN8410CN8410
2
×5×5
g Notes on assembling
• Bottom view
1
1
3
5
4
2
Screw tightening order
