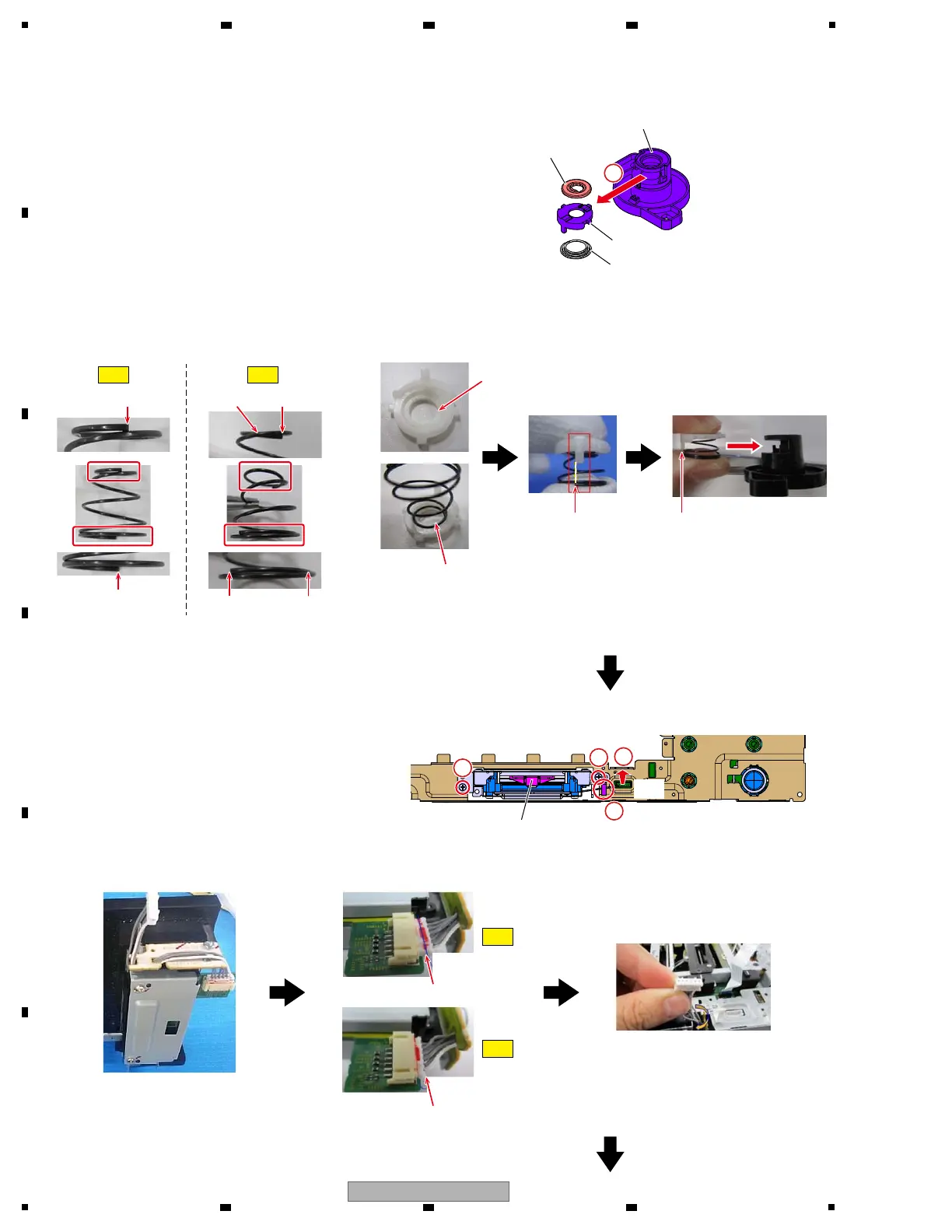

[4-5] Cross Fader Service Assy
1 Disconnect the one connector.
(CN7604)
2 Release the Jumper wire styling.
3 Remove the 2 screws and then remove the
Cross Fader Service Assy.
(BBZ30P060FTC)
Cross Fader Service Assy
OK
Confirm that condition of the spring is good.
Assembling
Holder
Spring/TRQ
Base/TRQ
Edge of Spring
Edge of Spring
Edge of Spring
Edge of Spring
Edge of Spring
Ring/TRQ
CN7604
(BFXB)
CN7604
(BFXB)
Insert it after turning the connector
2.5 clockwise.
Insert it after turning the connector
2.5 clockwise.
NG
OK
NG
Insert it with this condition.
Edge of Spring position
Match to projection of
Base/TRQ.
Concave part
Insert the Spring
to concave part.
Crossing
Not inserted tightly
Inserted tightly
Crossing
3 Remove the Base/TRQ, Ring/TRQ and
Spring/TRQ.
3
3
1
2
3
g Notes on assembling
g Jumper wires styling
