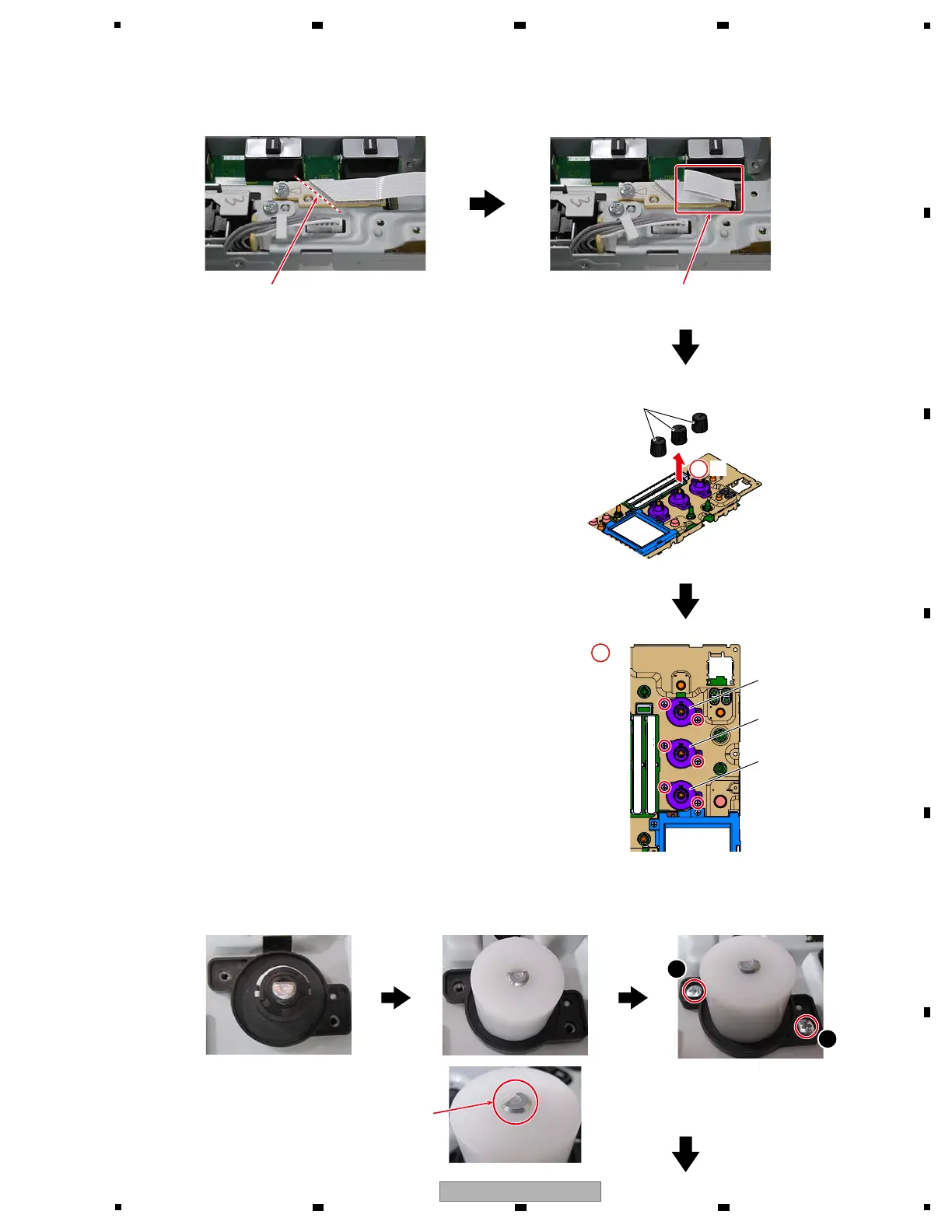

[4-4] M-ISO knob
1 Remove the 3 knobs.
Knob
Holder Section
Holder Section
Holder Section
Insert the Holder Section to the VR. Insert the Jig (GGF1732).
Confirm that the tip of
VR sticks out from the jig.
Tighten 2 screws according to order.
Remove the jig.
g FFC styling
Bend FFC in conformity to the line on the silk. Bend FFC in fig. after insert it to connector.
2 Remove the 6 screws and then remove the
3 Holder Section.
(BBZ30P060FTC)
2
1
×6×6
×3
×3
g Notes on assembling
1
2
