Pass FFC in slit of Barrier.
Put Barrier to the hook.
Pass FFC in slit Pass FFC in slit
Bend FFC in conformity to the line on the silk.
CUEVR Assy
[4-9] CUEVR Assy
1 Remove the 2 screws and then remove the
2 Stays.
(BBZ30P060FTC)
2 Remove the 4 screws.
(BBZ30P060FTC)
3 Unhook the 2 hooks and then remove the
Barrier.
4 Remove the 3 screws and then remove the
CURVR Assy
(BBZ30P060FTC)
Caution:
When diagnosing the CUEVR Assy, there are
differences in the procedure for removing the
UCOM Assy depending on the contents of the
diagnosis.
Follow the procedure of "5.5 CUEVR ASSY
DIAGNOSIS METHOD".

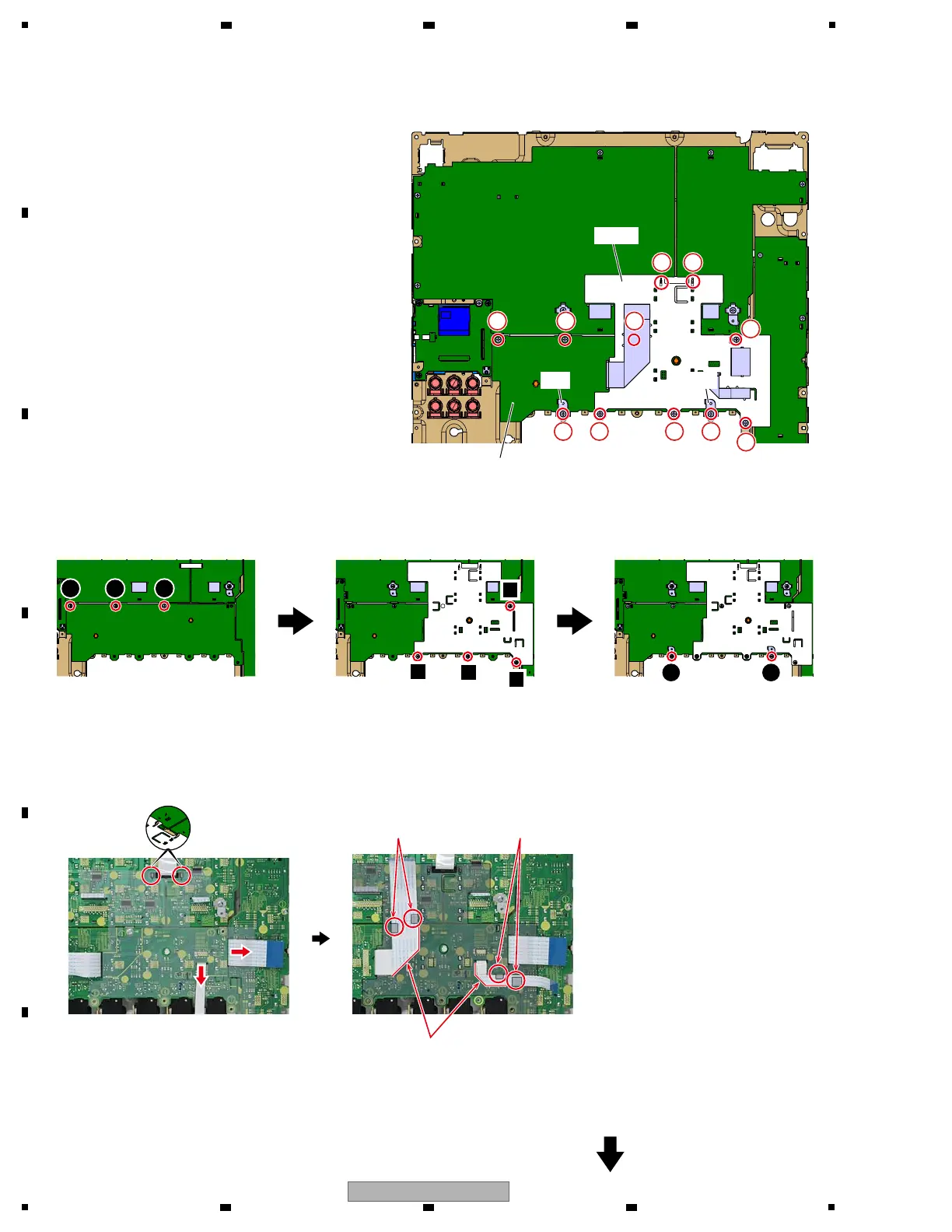

g Barrier and FFC styling
StayStay
BarrierBarrier
StayStay
• Bottom view
1 2 2
4 4 4
3 3
2
2
1
1
1 2
32
Screw tightening order
1
2
3
4
To Next Page
