AlphaTheta DJM-V10 - Page 103

103
DJM-V10
5
6 7 8
5
6 7 8
A
B
C
D
E
F
SFXB Assy
PNLR Assy PNLL Assy

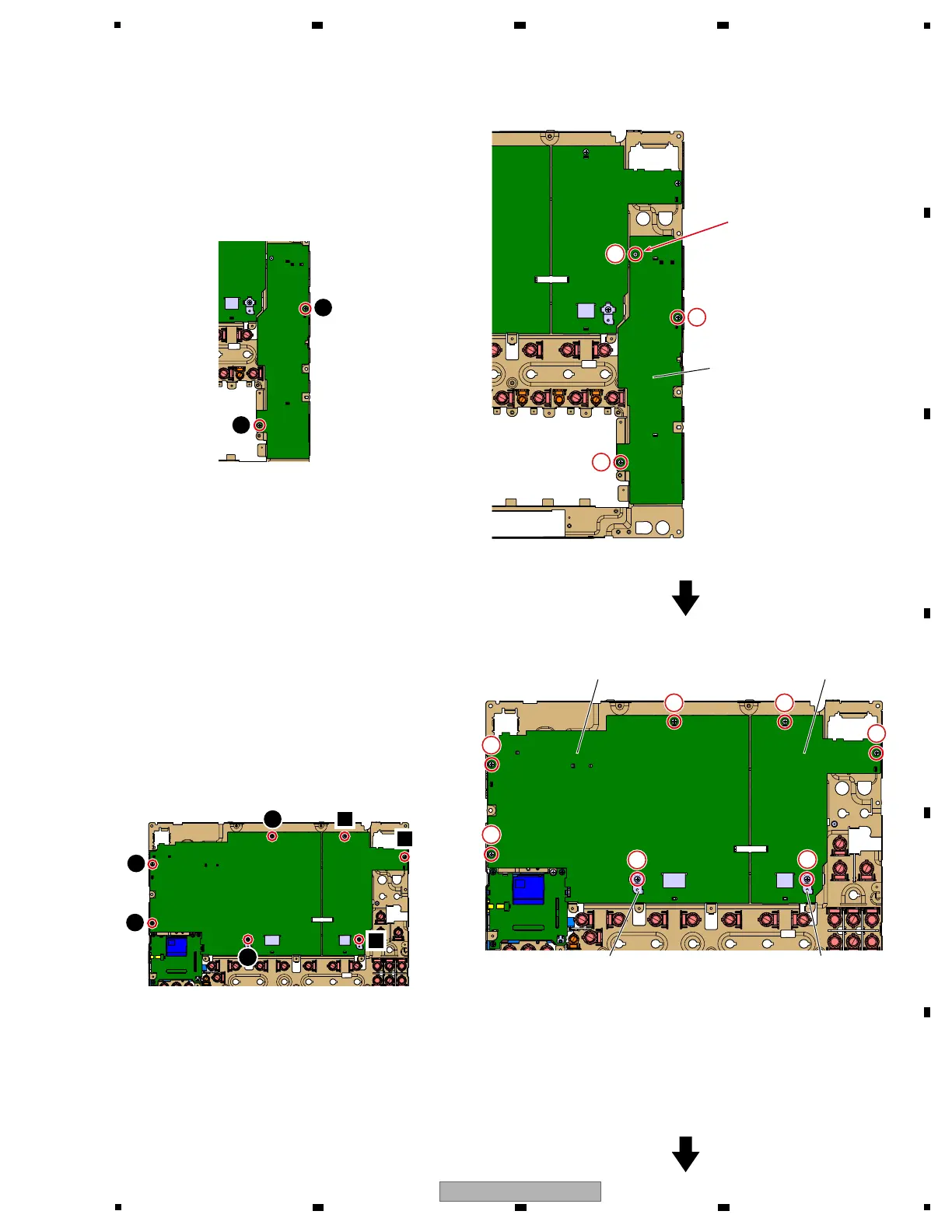

[4-10] SFXB Assy
1 Remove the 2 screws.
(BBZ30P060FTC)
2 Unlock the Spacer and then remove the
SFXB Assy.
[4-11] PNLR and PNLL Assys
1 Remove the 4 screws and then remove the
PNLR Ass.
(BBZ30P060FTC)
2 Remove the 3 screws and then remove the
PNLL Assy.
(BBZ30P060FTC)
Notes on assembling
Insert the Spacer before
tightening the screws.
StayStay StayStay
• Bottom view
• Bottom view
1
1
1
1
1
1
2
2
2
2
1
1
3
2
4
2
Screw tightening order
Screw tightening order
1
2
3
