2
2

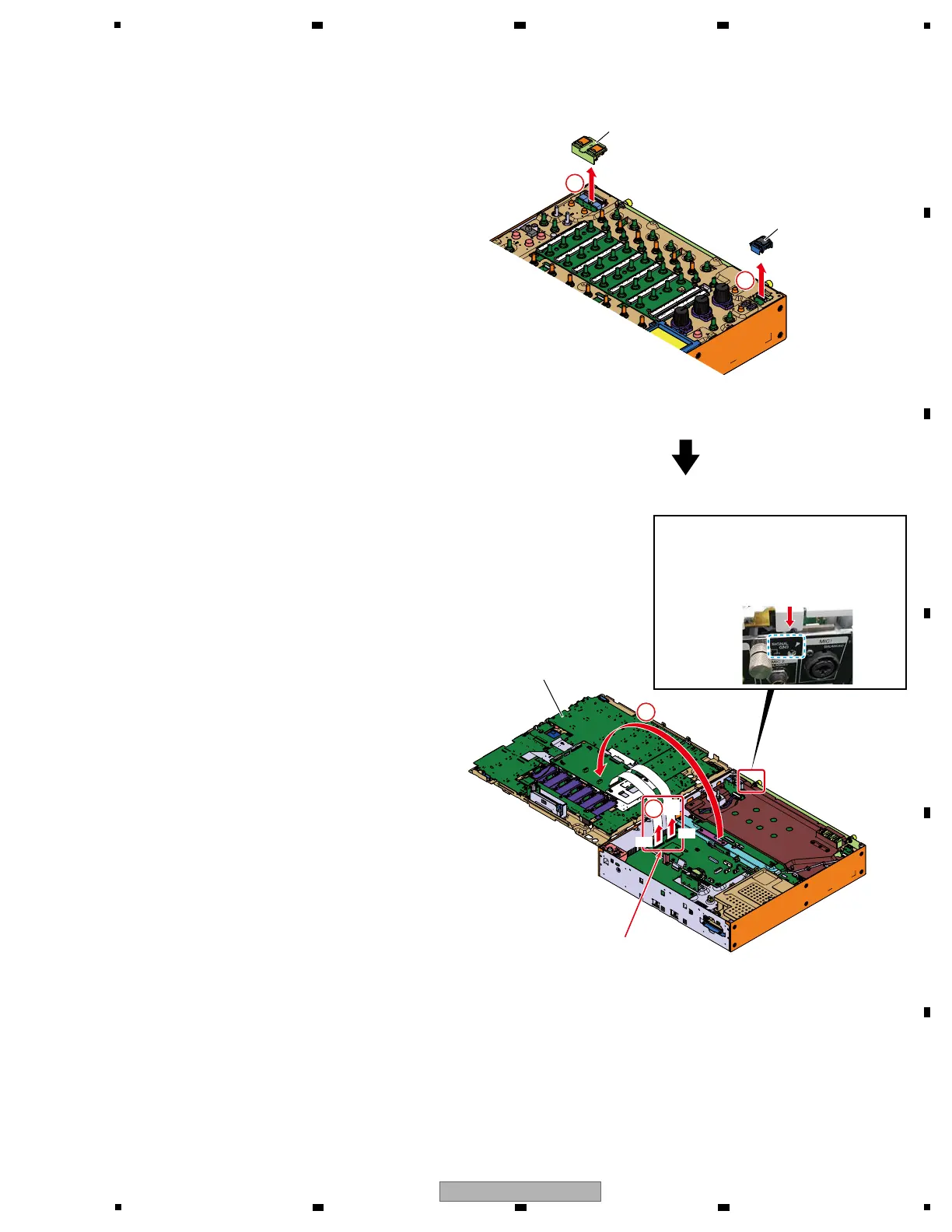

2 Remove the USBA panel Assy and the USBB
panel Assy.
3 Open the Control panel Section in the
direction of the arrow, and remove it.
4 Disconnect the 2 FFCs.
(CN7, 9)
3
4
Control panel Section
USBA panel Assy
USBB panel Assy
Do not damage the FFC
at the chassis edges.
Notes on assembling
When attaching the Control panel to
the product, be careful not to damage
the part shown in the figure below on
the rear panel.
×2×2
CN7CN7
CN9
CN9
To Next Page
