Installation instructions
10 Amatron+ BAG0082.2 10.10
3.2 Battery cable
The required operating voltage is 12 V and must
taken directly from the battery.
Before connecting the
AMATRON
+
to a tractor with sev-
eral batteries, it must be clarified, by
referring to the tractor operating in-
structions or by asking the tractor ma-
nufacturer, which battery the computer
must be connected to!
1. Install and secure the battery cable from the
tractor cab to the tractor battery. When in-
stalling the battery cable, make sure there
are no kinks.
2. Shorten the battery cable to the appropriate
length.

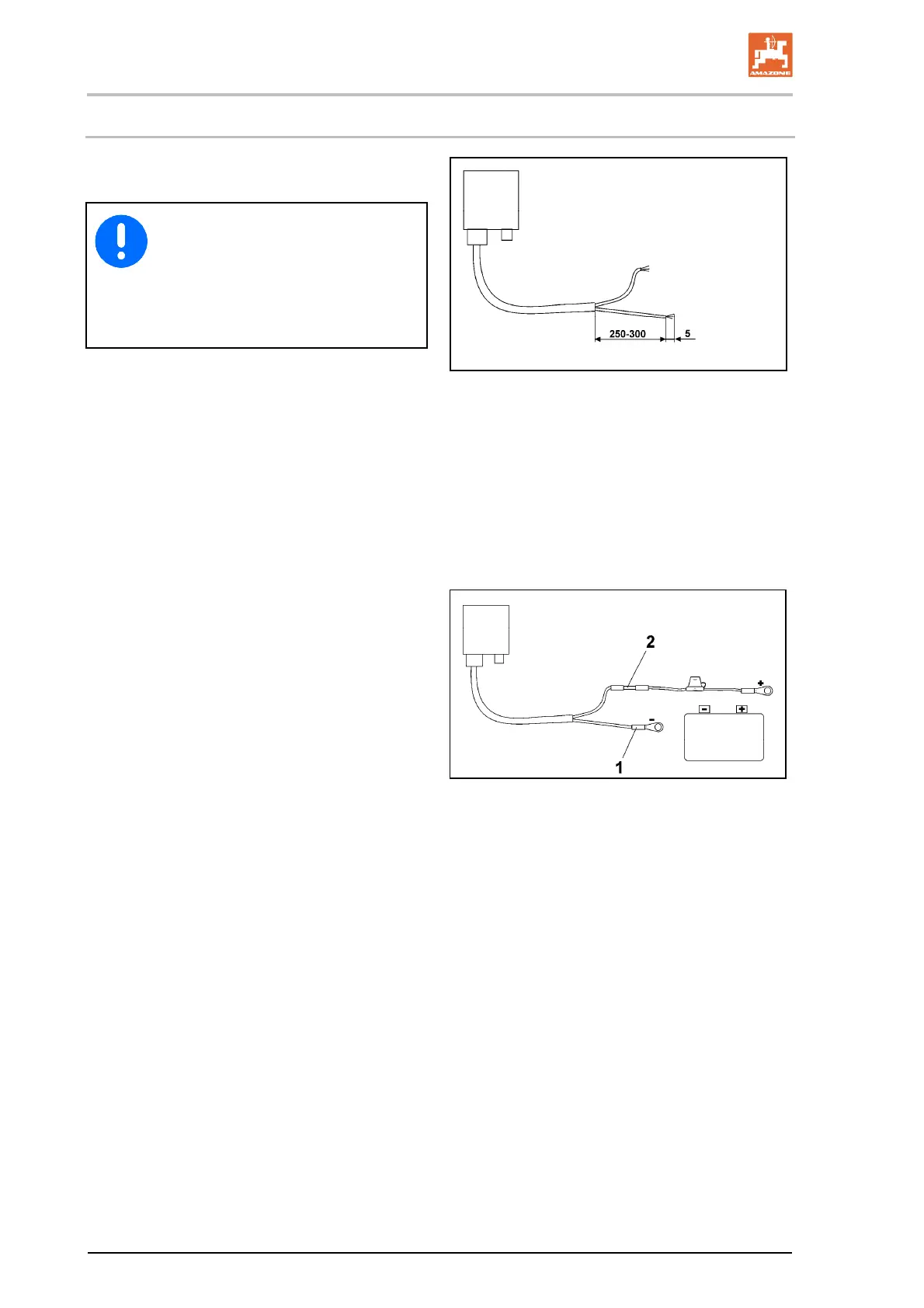

3. Strip the cable end (Fig. 3) approx. 250 to
300 mm.
Strip the cable ends (Fig. 3) individually
5 mm.
Fig. 3
4. Insert the blue cable core (earth) into loose
ring lug (Fig. 4/1).
5. Pass pinch through with pliers.
6. Insert brown cable core (+ 12 volts) into free
end of connector (Fig. 4/2) einführen
7. Pass pinch through with pliers.
8. Shrink-fit connector (Fig. 4/2) with heat
sou
rce (lighter or hairdryer) until the adhe-
sive emerges.
9. Connect the battery cable to the tractor
battery:
Brown cable core to +.
Blue cable core to -.
Fig. 4
