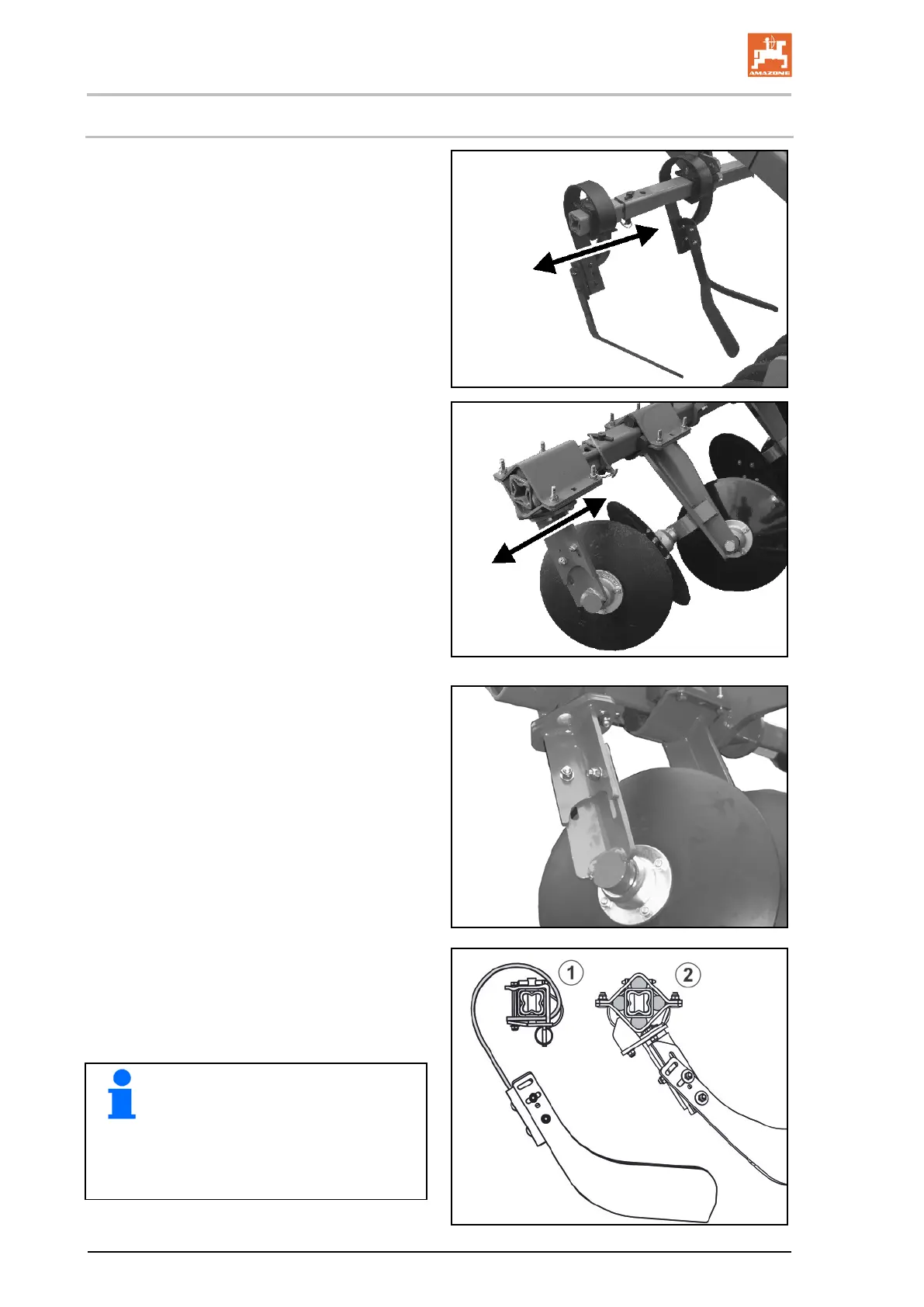

5.6 Boundary discs / side closer
Extendable boundary discs / side closers prepare
an even field with no lateral banks.
As an alternative to round discs, the machine can
also be equipped with serrated discs.
• When transporting the machine, completely
slide in both boundary discs / side closers,
fix with bolts and secure with linch pins.
• For operation, the boundary discs / side
closers can be secured in various holes.
• Adjustable boundary discs
The adjustable boundary discs (option) are ad-
justable in their length and the contact angle can
be changed by turning the discs.
• Side closer with overload safety
(1) Overload safety steel spring
(2) Overload safety rubber elements
• Side discs can also be mounted
on a tine arrangement.
• Side closers can also be mount-
ed on a disc arrangement.
42
Cenius 03 BAG0144.5 10.19
