EasySet 2 BAG0217.9
5.1.1 Calibrating the shutters
The shutters must be calibrated in the following situations:
• After working on the bottom group
.
• If the desired and actual spread rate do not concur.
Calibrate both shutters on the ZA-X
Prerequisite:
• Round steel with a diameter of 20 mm and a length of approx.
10 cm.
• Two persons

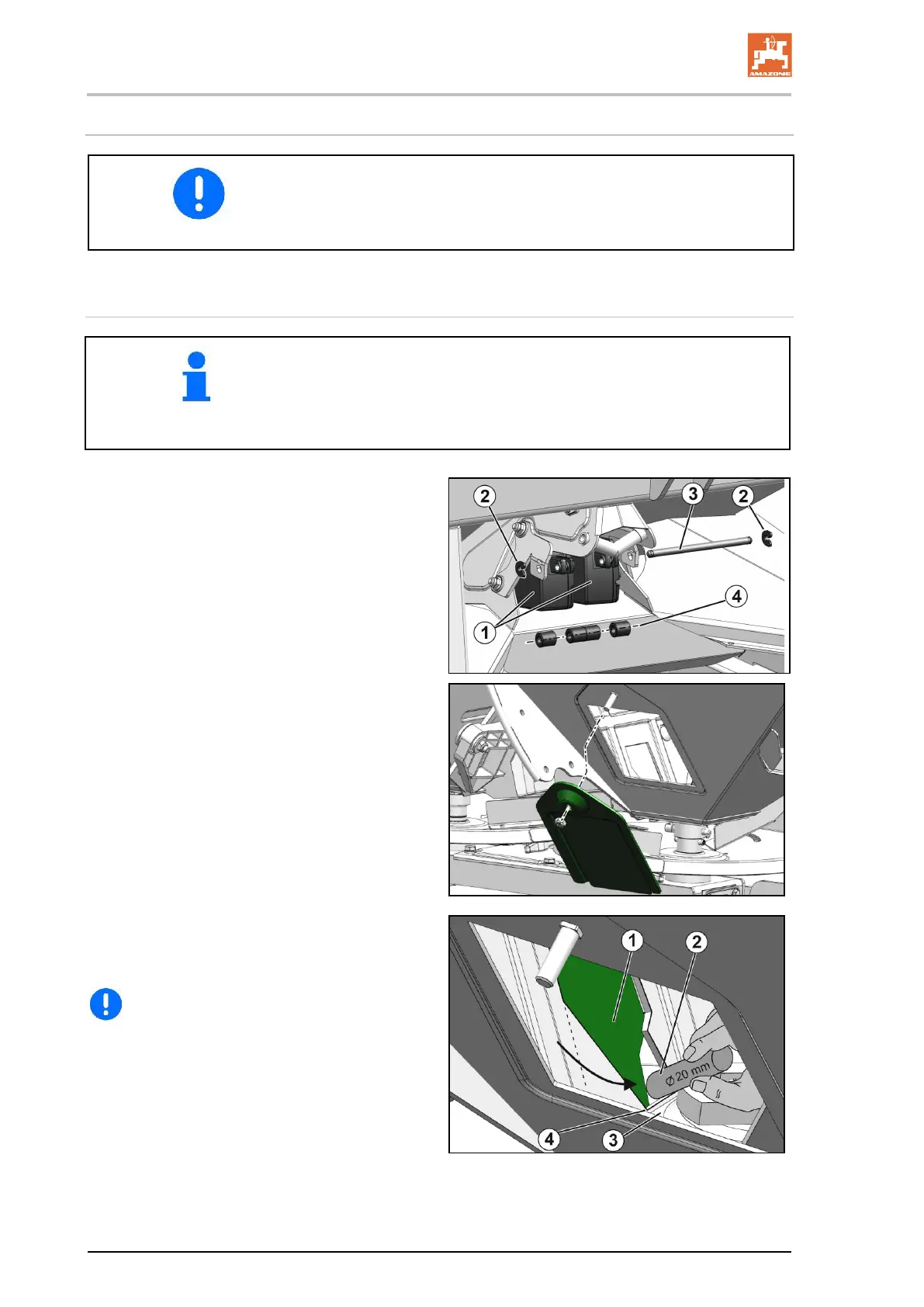

1. Unhook the motor (1) on the left and right.
To do so, remove the locking clip (2), pull
out the pin (3) and remove the sleeves (4).
2. Open shutter. For this purpose, slide both
motors slightly to the rear.
3. Remove the maintenance flaps on the left
and right.
4. Insert the round steel (2) through the right
maintenance flap vertically relative to the
shutter (1) into the right shutter openi
hold it tight.
The round steel must touch the shutter o-
pening (4) and must not rest on the bottom
plate (3)!
5. Close the right shutter manually until the
shutter touches the round steel.
To do so, pull the right motor back towards
the front.
