11. Master-Slave Parallel Operation
The eLoad provides Master/Slave configuration at all modes with current sharing capability. Please refer to
the steps below for eLoad configuration and control.
Available Mode Ranges
* CC Mode High Range
* CP Mode High Range
* CR Mode Low Range
* CV Mode Low Range
* CV Mode Mid-Range
* CV Mode Hi Range

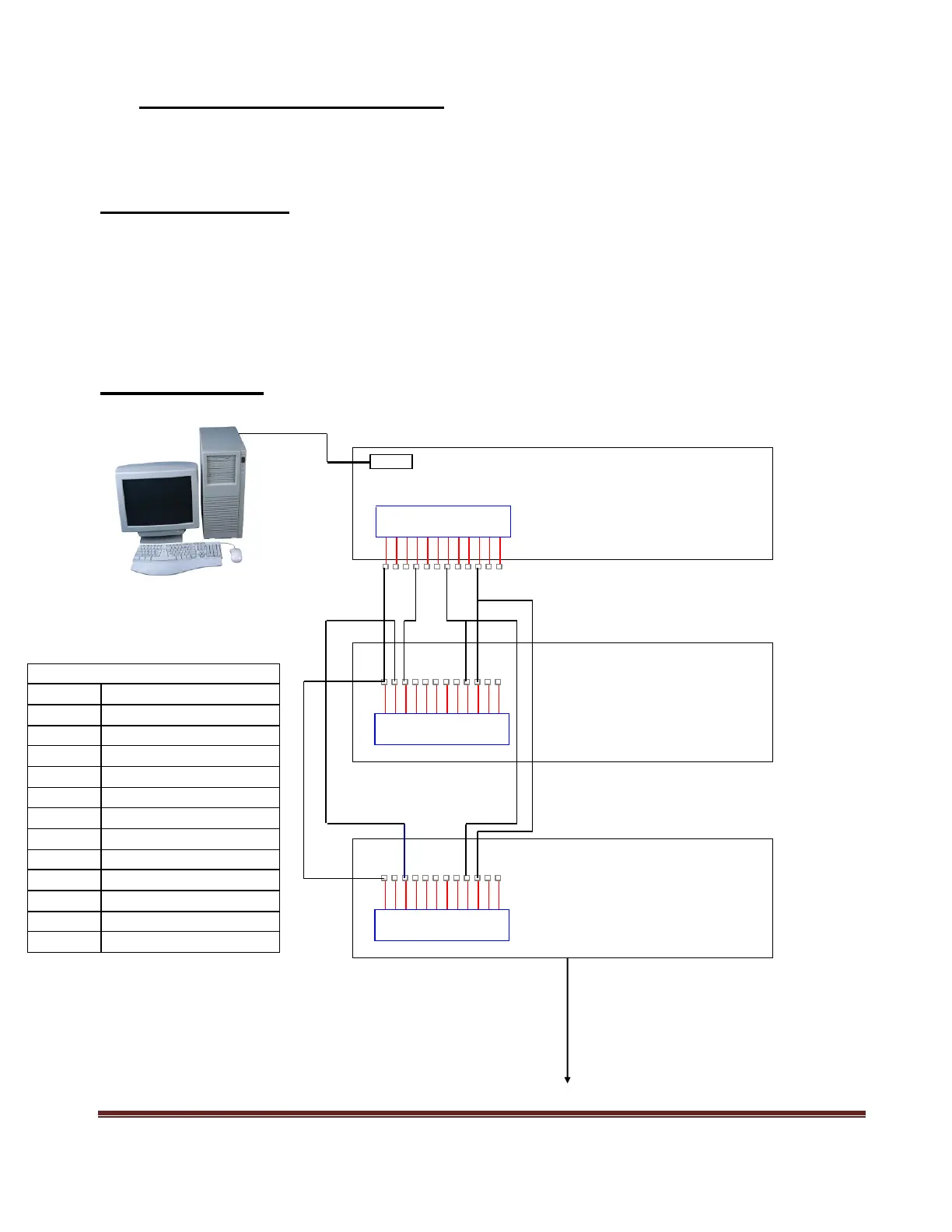

Setup Configuration
…………….
GPIB/RS-232/USB/ETHERNET
Master
Slave 1
External Programming Port
1 2 3 4 5 6 7 8 9 10 11 12
External Programming Port
1 2 3 4 5 6 7 8 9 10 11 12
External Programming Port
Pin
Definition
1
+Sense
2
-Sense
3
AGND (EXT_GND)
4
EXT PRG
5
VMON
6
IMON
7
NC
8
FAULT
9
PORT OUT
10
TRIGIN
11
TRIGOUT
12
EGND
Slave 2
External Programming Port
1 2 3 4 5 6 7 8 9 10 11 12
Rear View
