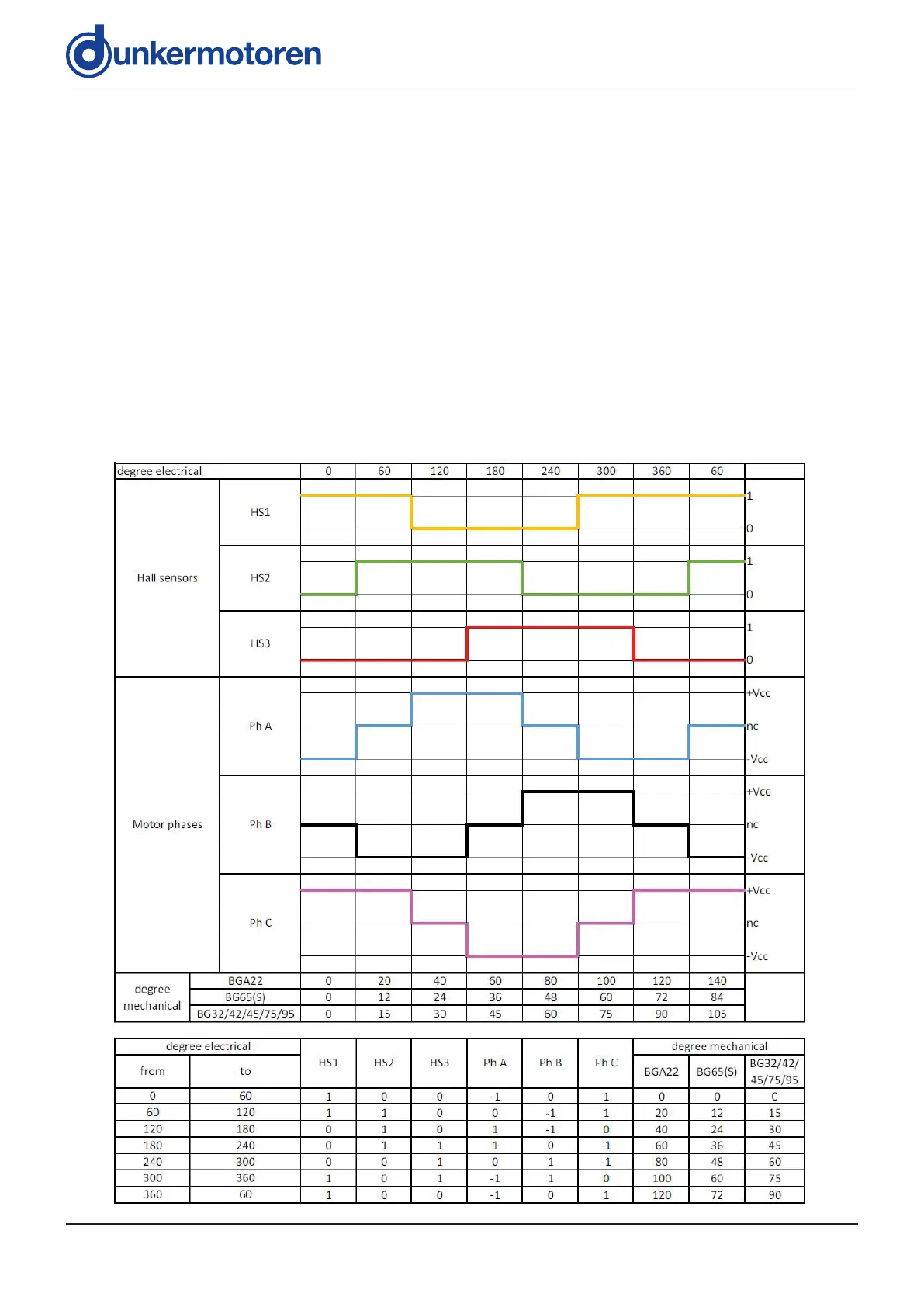

Folgende Abbildung zeigt die Kommutierung für fol-
gende Motortypen für Rechtslauf.
» BGA22: (18 Pulse/Umdrehung)
» BG32: (24 Pulse/Umdrehung)
» BG42: (24 Pulse/Umdrehung)
» BG45: (24 Pulse/Umdrehung)
» BG65(S): (30 Pulse/Umdrehung)
» BG75: (24 Pulse/Umdrehung)
» BG95: (24 Pulse/Umdrehung)
The following gure shows the commutation sequence
of the respective motor types for Clockwise.
» BGA22: (18 pulses/revolution)
» BG32: (24 pulses/revolution)
» BG42: (24 pulses/revolution)
» BG45: (24 pulses/revolution)
» BG65(S): (30 pulses/revolution)
» BG75: (24 pulses/revolution)
» BG95: (24 pulses/revolution)
7�2 Commutation 7.2 Kommutierung
Hallsensor-Folge in 3x 120°el.: HS1, HS2, HS3
Logik: AH=HS1\ & HS2 ; AL=HS1 & HS2\; BH= HS2\ &
HS3 ; BL=HS2 & HS3\ ; CH=HS3\ & HS1 ; CL=HS3 &
HS1\
H=High ; L=Low ; A,B,C = Phase ; \ = Not
Hall sensor sequence in 3x 120°el.: HS1, HS2, HS3
Logic: AH=HS1\ & HS2 ; AL=HS1 & HS2\; BH= HS2\ &
HS3 ; BL=HS2 & HS3\ ; CH=HS3\ & HS1 ; CL=HS3 &
HS1\
H=High ; L=Low ; A,B,C = Phase ; \ = Not
