Ametek dunkermotoren BG dCore Series Translation Of The Original Manual

Version 28-02-2018 | Page/ Seite 8 www.dunkermotoren.com
For series BG65S, BG75 and BG95/
Für die Motorbaureihen BG65S,
BG75 and BG95
Explanation/ Legende
Abbreviation/ Abkürzung English German
PhA Motor phase A Motorphase A
PhB Motor phase B Motorphase B
PhC Motor phase C Motorphase C
HS1 Hallsensor signal 1 Hallsensorsignal 1
HS2 Hallsensor signal 2 Hallsensorsignal 2
HS3 Hallsensor signal 3 Hallsensorsignal 3
U+ Hall Encoder supply Versorgung Geber
GND Hall Ground for encoder Masse Geber
ChA Incremental encoder channel A Inkrementalgeber Spur A
/ChA Incremental encoder channel A negated Inkrementalgeber Spur A negiert
ChB Incremental encoder channel B Inkrementalgeber Spur B
/ChB Incremental encoder channel B negated Inkrementalgeber Spur B negiert
ChI Incremental encoder index Inkrementalgeber Index
/ChI Incremental encoder index negated Inkrementalgeber Index negiert
3�6 Standards and guidelines 3.6 Zertikate / Konformitäten
EU guidelines, Machine guideline, EMC guideline and
Conformity available for download on www.dunkermoto-
ren.com
EG-Richtlinien, Maschinenrichtlinie, EMV-Richtlinie und
Konformitätserklärung downloadbar unter www.dunker-
motoren.de

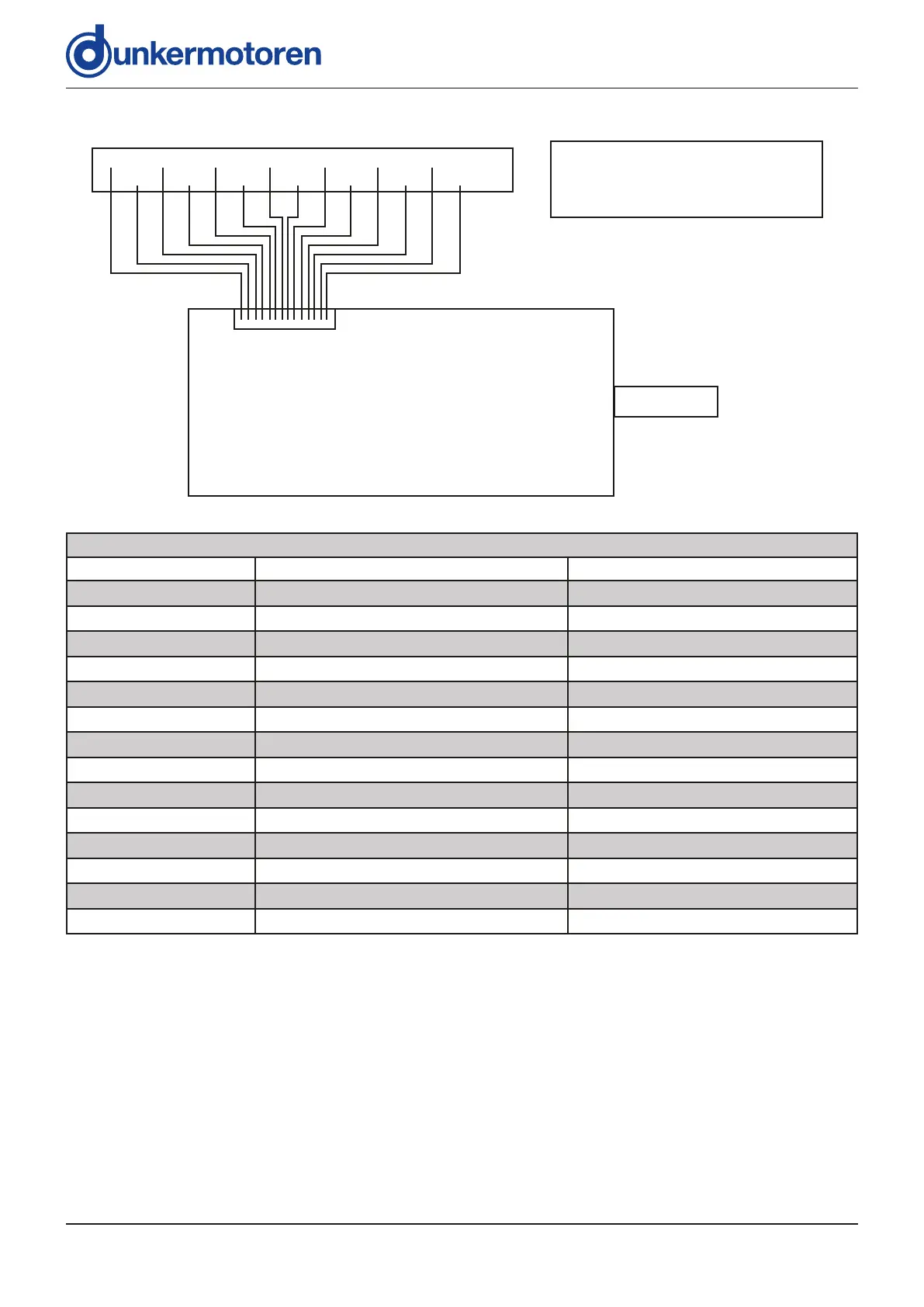

External controller/ Externer Regler
BG XX dCore
ChA
/ChA
ChB ChI
/ChB
Encoder integrated/
Geber integriert
/ChI
PhA PhC
PhB HS1
HS2 U+ Hall
HS3 GND Hall
