AMF 90XLi PINSPOTTER
400-088-011 Page 4 Rev. Date 10/04
Guards and Safety Precautions
All safety guards must be in place before operating the machine. When
maintenance is required, the following steps must be followed:
1. Disconnect the power plug before working on the pinspotter.
2. Remove guards only as required to perform the maintenance.
3. Once maintenance is complete, replace all guards.
4. Reconnect the power plug.
The Positive Ball Lift has two guards (see Figure 1) designed specifically to limit access
to the ball lift’s moving parts. These guards must remain in place during pinspotter
operation.
• The Upper Ball Lift Upper Guard (item 1) limits access to the main lift belt and upper
wheel and to bowling balls exiting the lift.
• The Rear Ball Lift Guard (item 2) limits access to the many belts, pulleys, and other
moving parts of the ball lift mechanism.

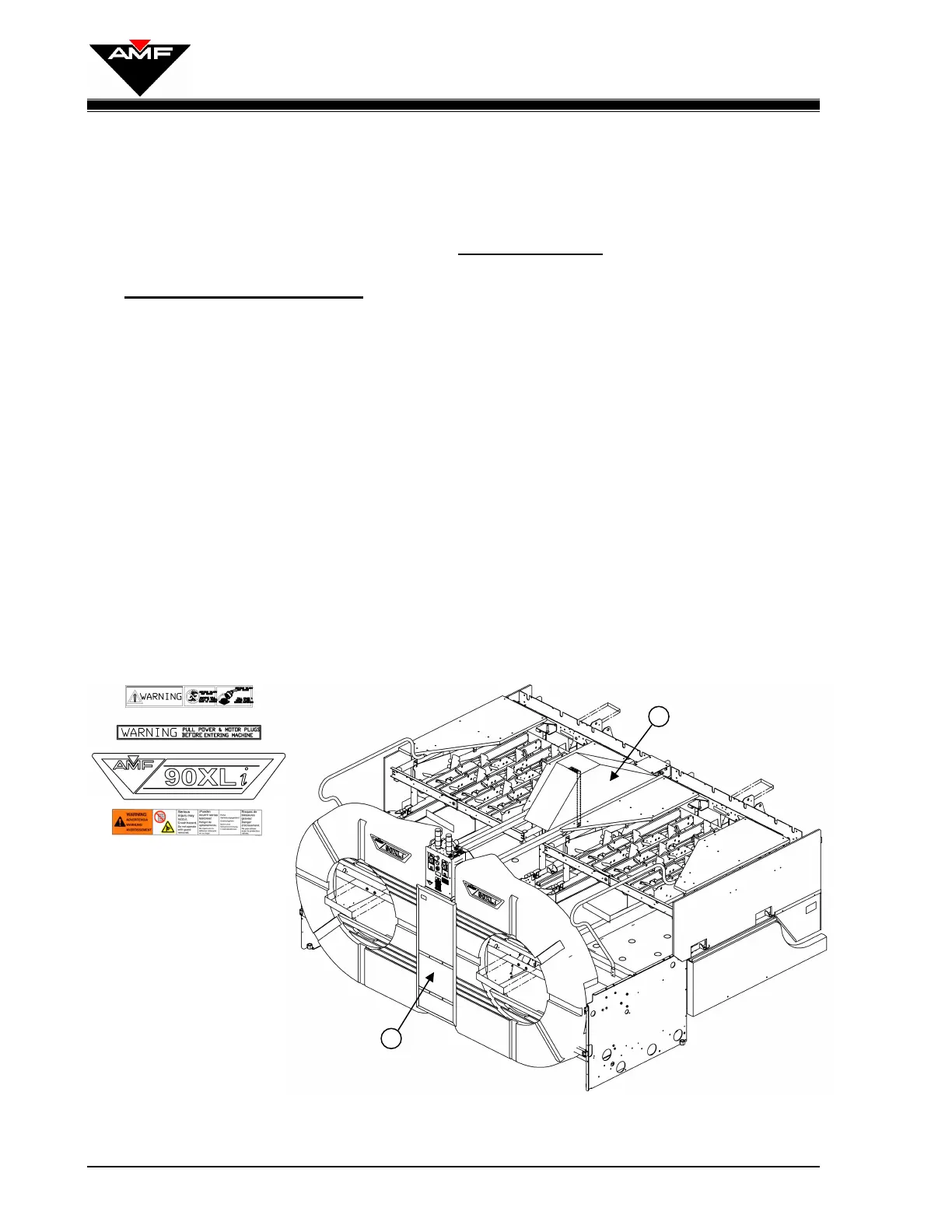

Figure 1
2
1
