SECTION 2.0

Operation & Adjustment

400-088-011 Page 2-7 Rev. Date 10/04

2.8 Trip Cam Adjustment

1. Turn the drive pulley to place the rudder in the center of its travel (center of ball lift).

2. Push the trip cam followers forward as far as they will go. There should be a

1/8-inch gap on each side between the trip cam and rollers (see Figure 2-8).

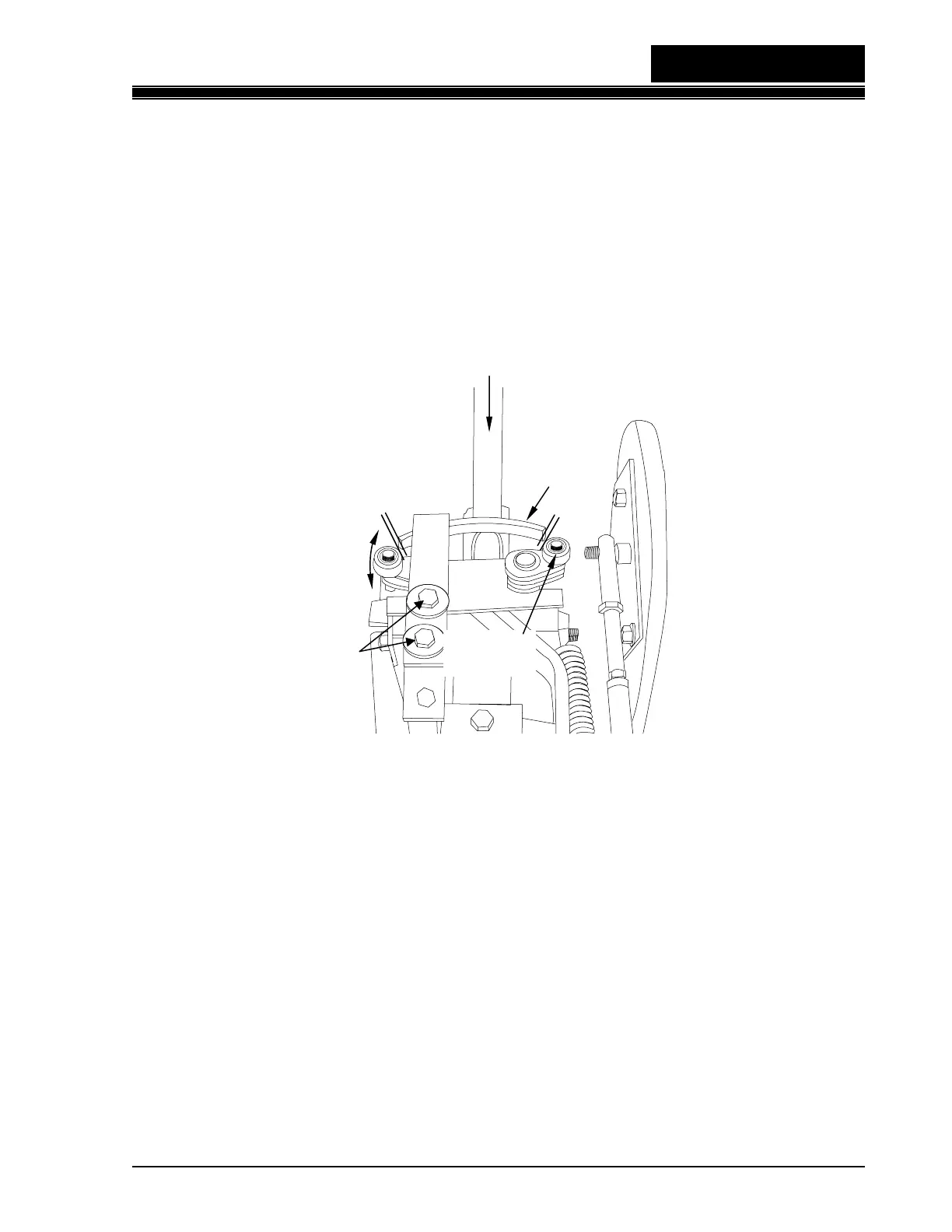

Figure 2-8

3. To adjust, loosen the trip cam bolts, reposition the cam, and retighten the bolts.

4. Recheck the clearance after tightening.

2.9 Reset Cam Adjustment

1. Rotate the drive pulley to place the rudder arm as far left as it will go, striking the

bumper. Hold this position.

2. Install the left reset cam and move its angled surface to touch the trip cam follower.

Tighten the cam’s mounting bolt.

3. Repeat Steps 1 and 2 for the right side reset cam.

SENSOR - BACK VIEW 2

Trip Cam

Follower

1/8”

Rudder at

Center of Ball

Return

Trip Cam Bolts
