AMF 90XLi PINSPOTTER
400-088-011 Page 2-10 Rev. 10/04
2.12 Lift Arm Adjustment
1. Measure the height of the lift arm above the door weldment (see Figure 2-11). This
distance should be no more than 1/8 inch. Adjust this gap by adjusting the length of
the rod that connects between the lift arm and the ratchet drive assembly (see
Figure 2-12). The rod has right hand threads on both ends, so one end of the rod
must be disconnected in order to make the adjustment. Shortening the rod raises
the lift arm, lengthening the rod lowers the lift arm. Tighten the jam nuts after
completing the adjustment.

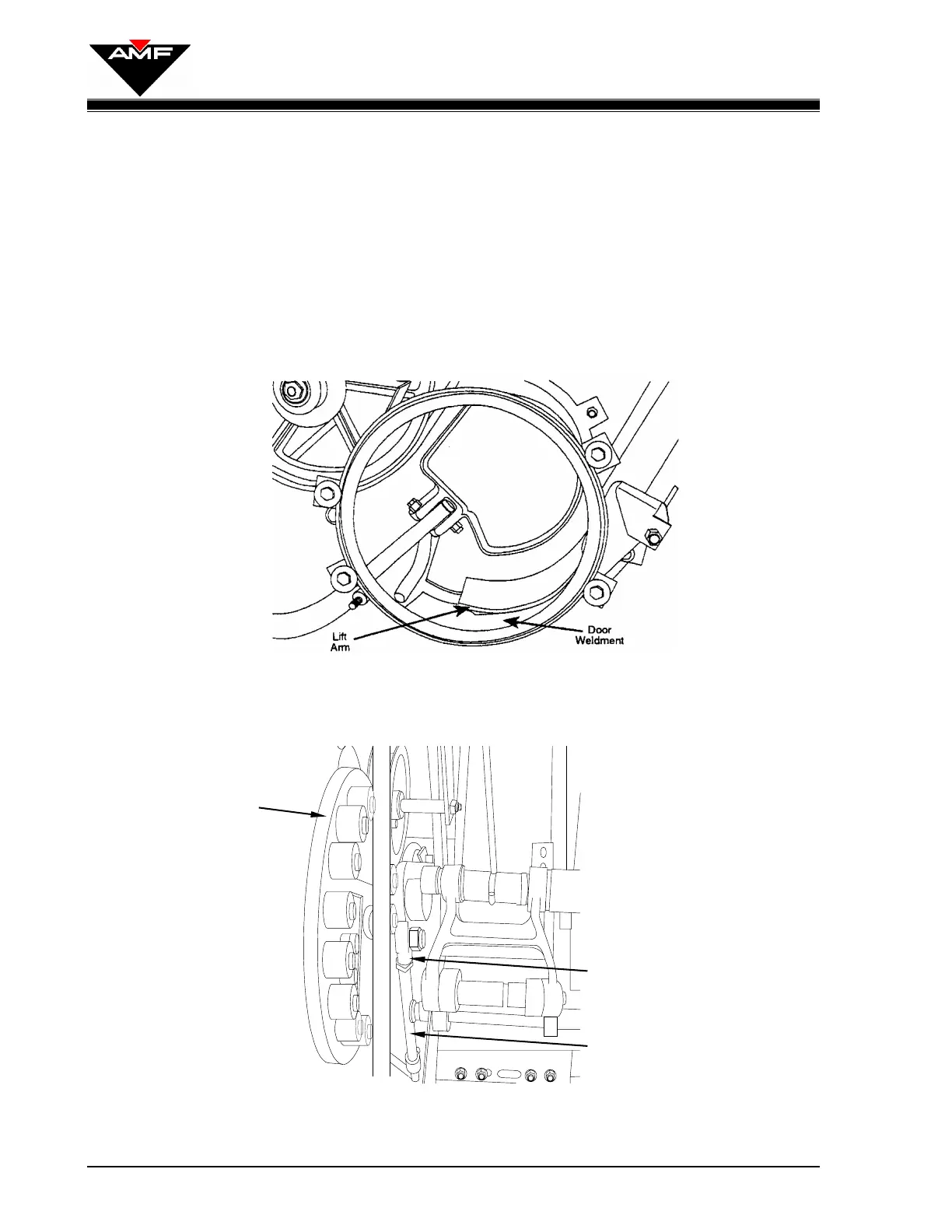

Figure 2-11
Figure 2-12
Ratchet Drive Assembly
LIFT ARM ADJUSTMNET
LIFT ARM ADJUSTMENT
Rod End
Adjustment Rod
