AMF 90XLi - Positive Ball Lift Lubrication Points (Figure 3-1)

AMF 90XLi PINSPOTTER
400-088-011 Page 3-2 Rev. 10/04
3.3 LUBRICATION POINTS

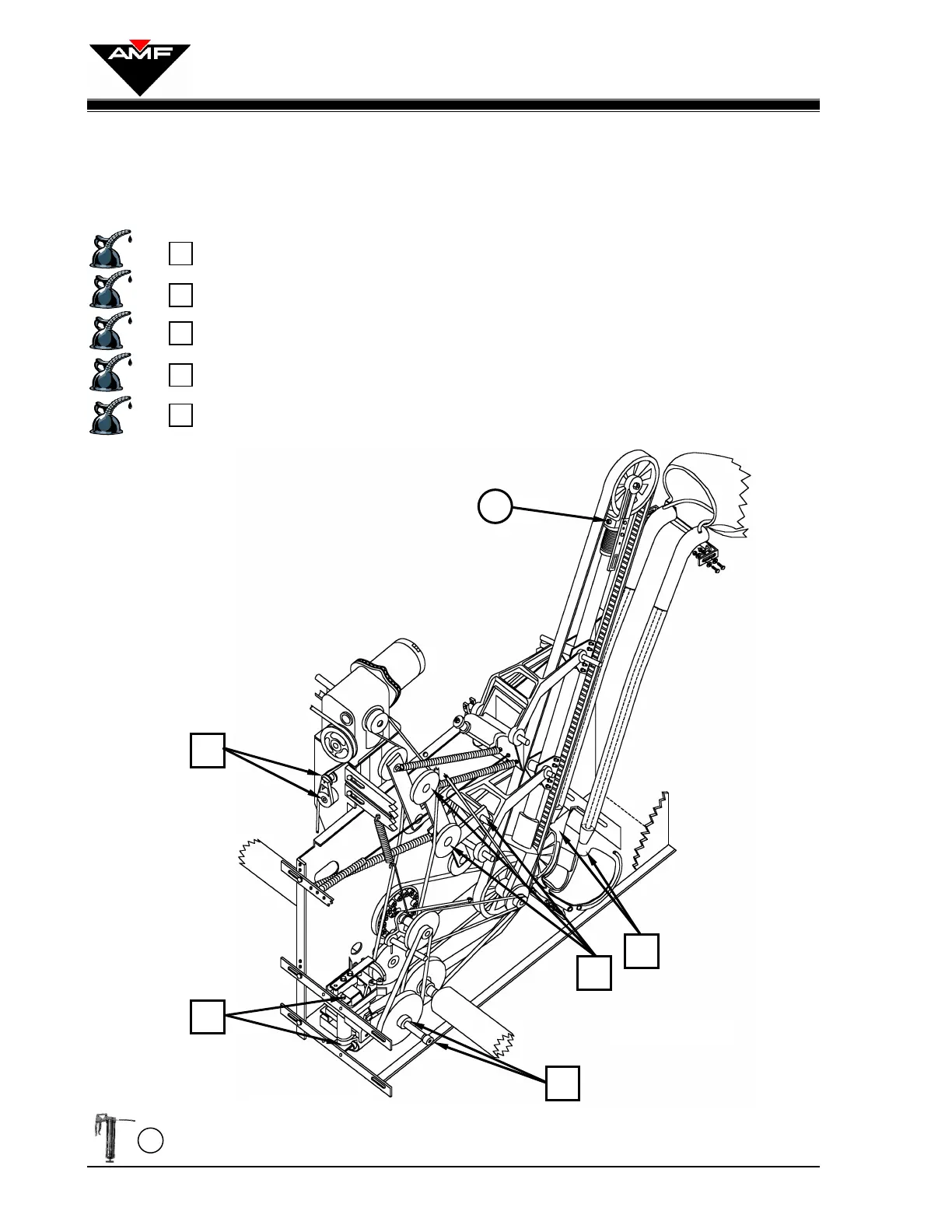

3.3.1 POSITIVE BALL LIFT (PBL) - Figure 3-1
1 Rudder arm pivot points (2 places): apply 2 drops of oil every 3 months.
2 Paddle drive pulley shaft (2 places): apply 2 drops of oil every 3 months.
3 Pin wheel belt tensioner (2 places): apply 2 drops of oil every 3 months.
4 PBL lift arm flange bearing (2 places): apply 2 drops of oil every 3 months.
5 Carpet belt tensioner assembly (6 places): apply 2 drops of oil every 2
months.
1 Apply grease (with Grease Gun) every 6 months.
3
1
2
5
1
4
Figure 4-1
PBL ASSEMBLED (REVISED)
