AMF 90XLi - Positive Ball Lift Lubrication Points (Figure 3-2)

SECTION 3.0
Lubrication
400-088-011 Page 3-3 Rev. Date 10/04
3.3.2 POSITIVE BALL LIFT - Figure 3-2
1 Idler pulley (2 places): apply 2 drops of oil to each side every 3 months.
2 Lower yoke pivot points (4 places): apply 2 drops of oil every 3 months.
3 Upper yoke pivot points (4 places): apply 2 drops of oil every 3 months.
4 Upper yoke upper shaft (2 places): apply 2 drops of oil every 3 months.
5 Lower yoke upper shaft (2 places): apply 2 drops of oil every 3 months.

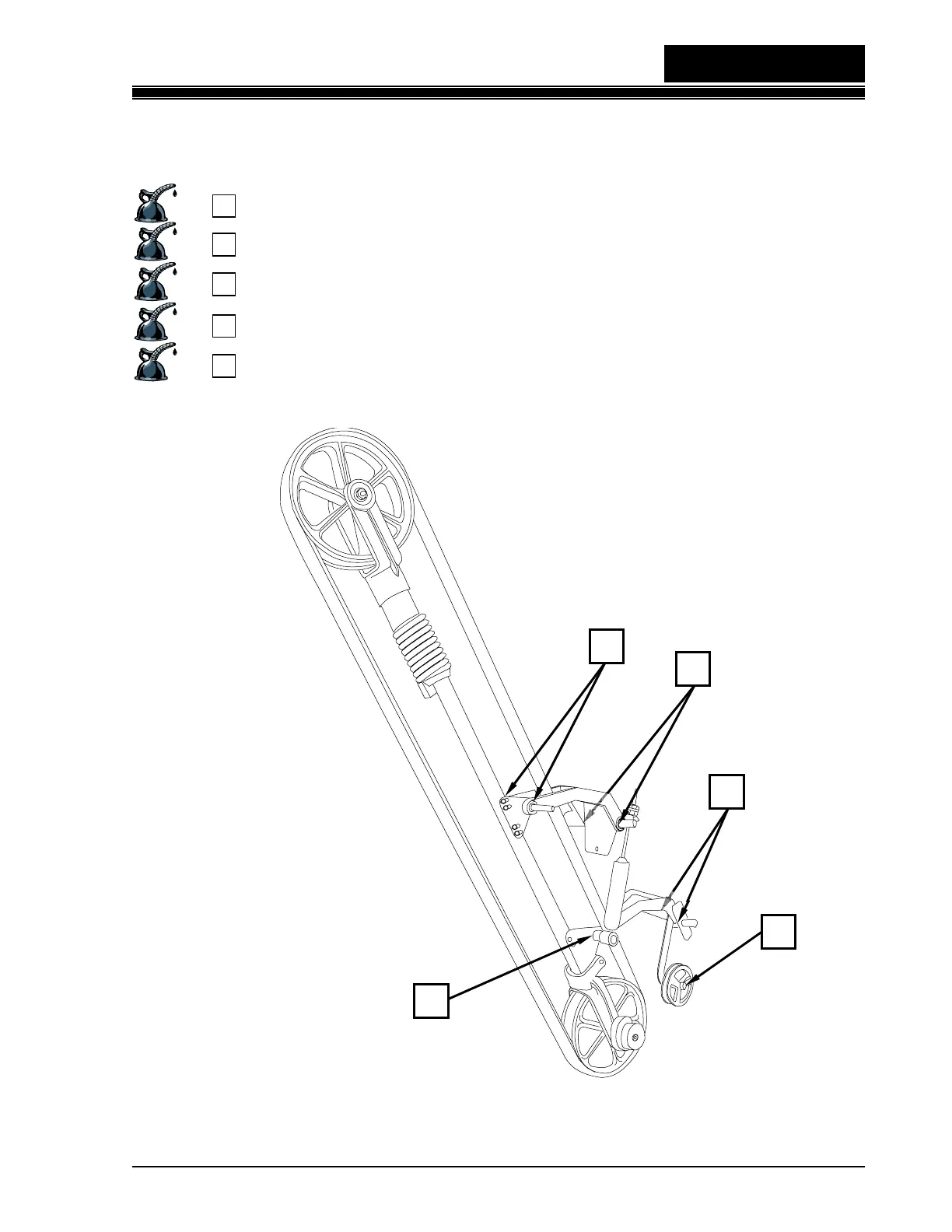

Figure 3-2
PBL
1
5
4
2
3
