AMF 90XLi - Belt Tensioner Lubrication Points (Figure 3-3)

AMF 90XLi PINSPOTTER
400-088-011 Page 3-4 Rev. 10/04

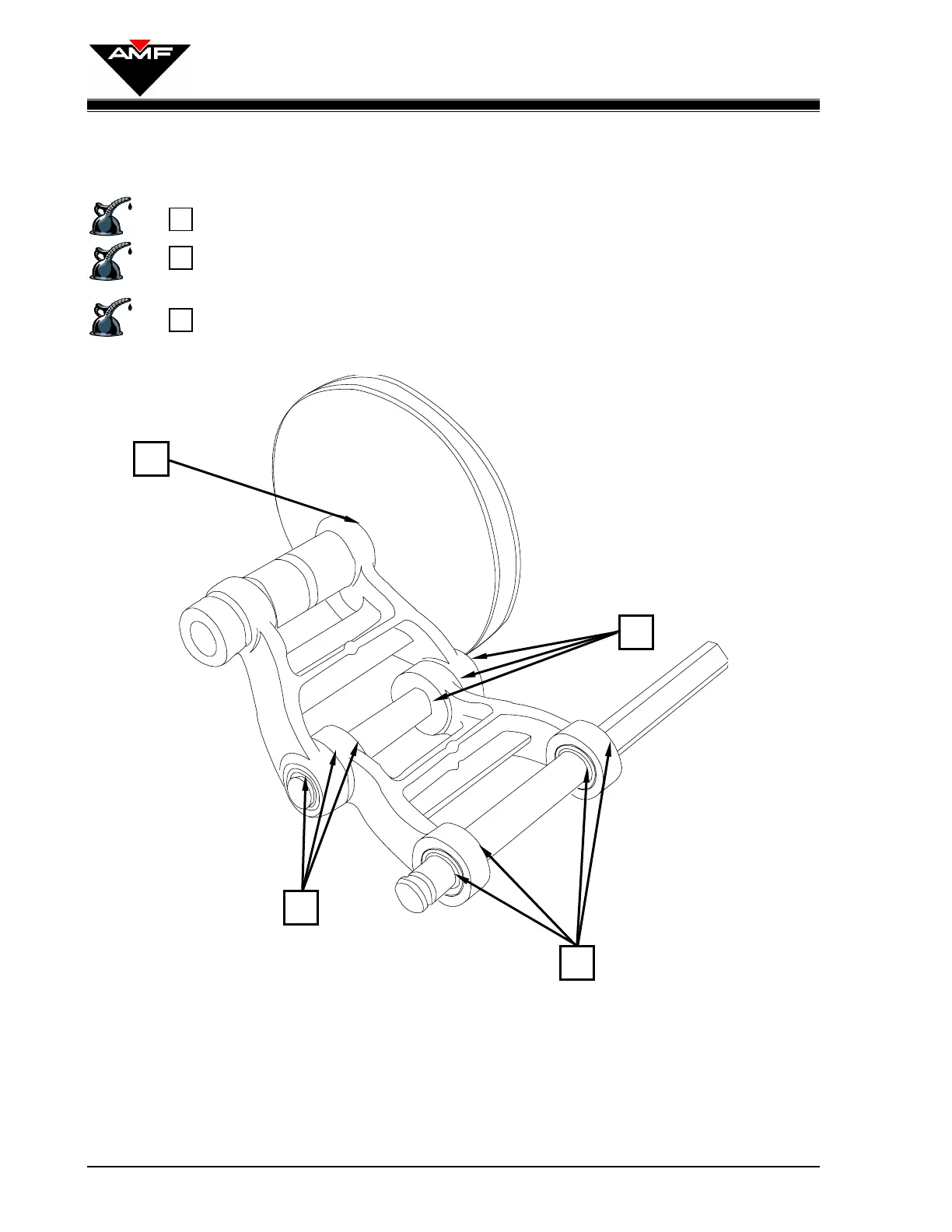

3.3.3 BELT TENSIONER - Figure 3-3
1 Pulley (2 places): apply 1 drop of oil to each side every 3 months.
2 Hanger arm center pivot points (6 places): apply 1 drop of oil every 3
months.
3 Lower shaft sleeve bearings (4 places): apply 1 drop of oil every 3 months.
BELT TENSIONER
1
3
2
2
Figure 3-3
