AMF 90XLi - Light Ball Sensor Lubrication; Ratchet Wheel Lubrication (Figure 3-5)

SECTION 3.0
Lubrication
400-088-011 Page 3-5 Rev. Date 10/04

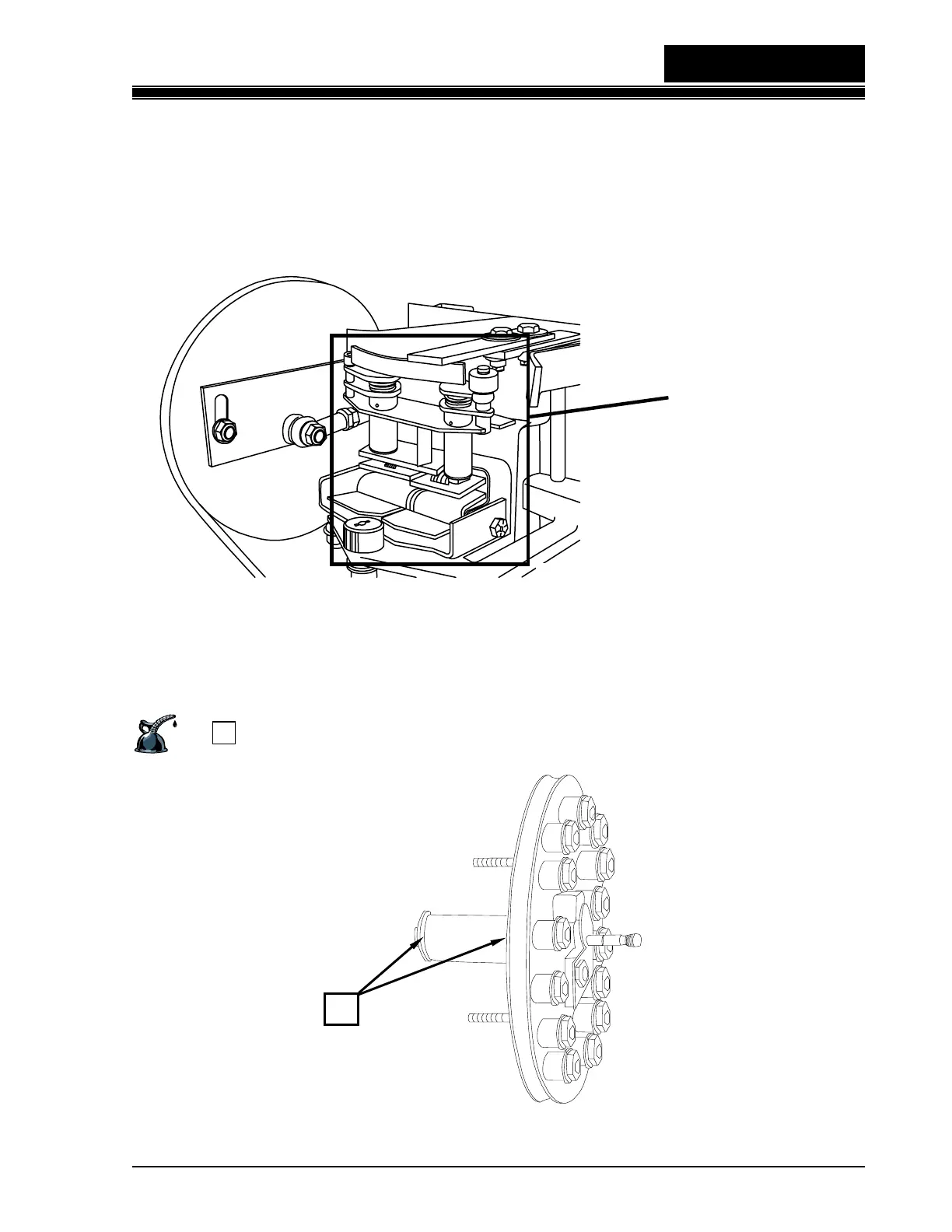

3.3.4 LIGHT BALL SENSOR - Figure 3-4
DO NOT LUBRICATE component parts of the trip cam and rudder cam assembly,
outlined within the square below. Friction is required in this area to allow the sensor to
operate properly.
Figure 3-4
3.3.5 RATCHET WHEEL - Figure 3-5
1 Ratchet wheel shaft flange bearings (2 places): apply 2 drops of oil every
3 months.
RATCHET WHEEL
1
Figure 3-5
DO NOT LUBRICATE
ANY COMPONENTS
WITHIN THIS BOX
SENSOR
- FRONT VIEW
