2.13 Rubber Bumper Adjustment
1. Place a bowling ball on the lift arm assembly (see Figure 2-13).
2. Measure the clearance between the ball and the ball lift belt. This clearance should
be between 3/8 and 1/2 inch. The increase in clearance from earlier units is
needed because of the thicker rail covers of the new Gripper ball return.

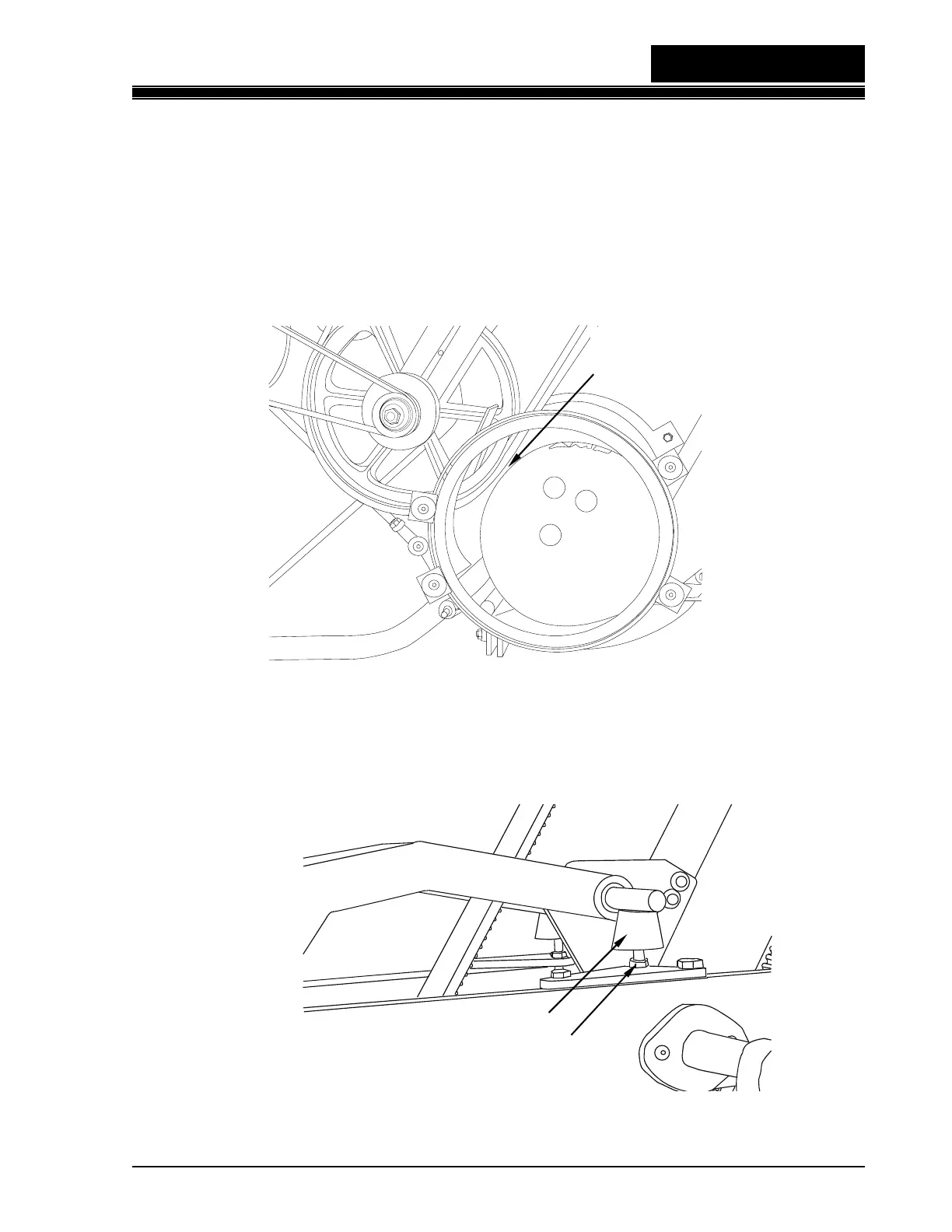

Figure 2-13
3. Adjust this clearance by adjusting the height of the rubber bumpers (see Figure 2-14).
Following adjustment, tighten the jam nuts.
Figure 2-14
PBL CLEARANCE
3/8” to 1/2”
clearance
Rubber Bumper
Jam Nut
