Amtech Axpert-Eazy Series - 5 Control Input; Output Terminals; Programmable Sequence Input (PSI) Wiring; Programmable Analog Input (PAI) Wiring

Axpert-Eazy AC Variable Frequency Drive
5.3
5

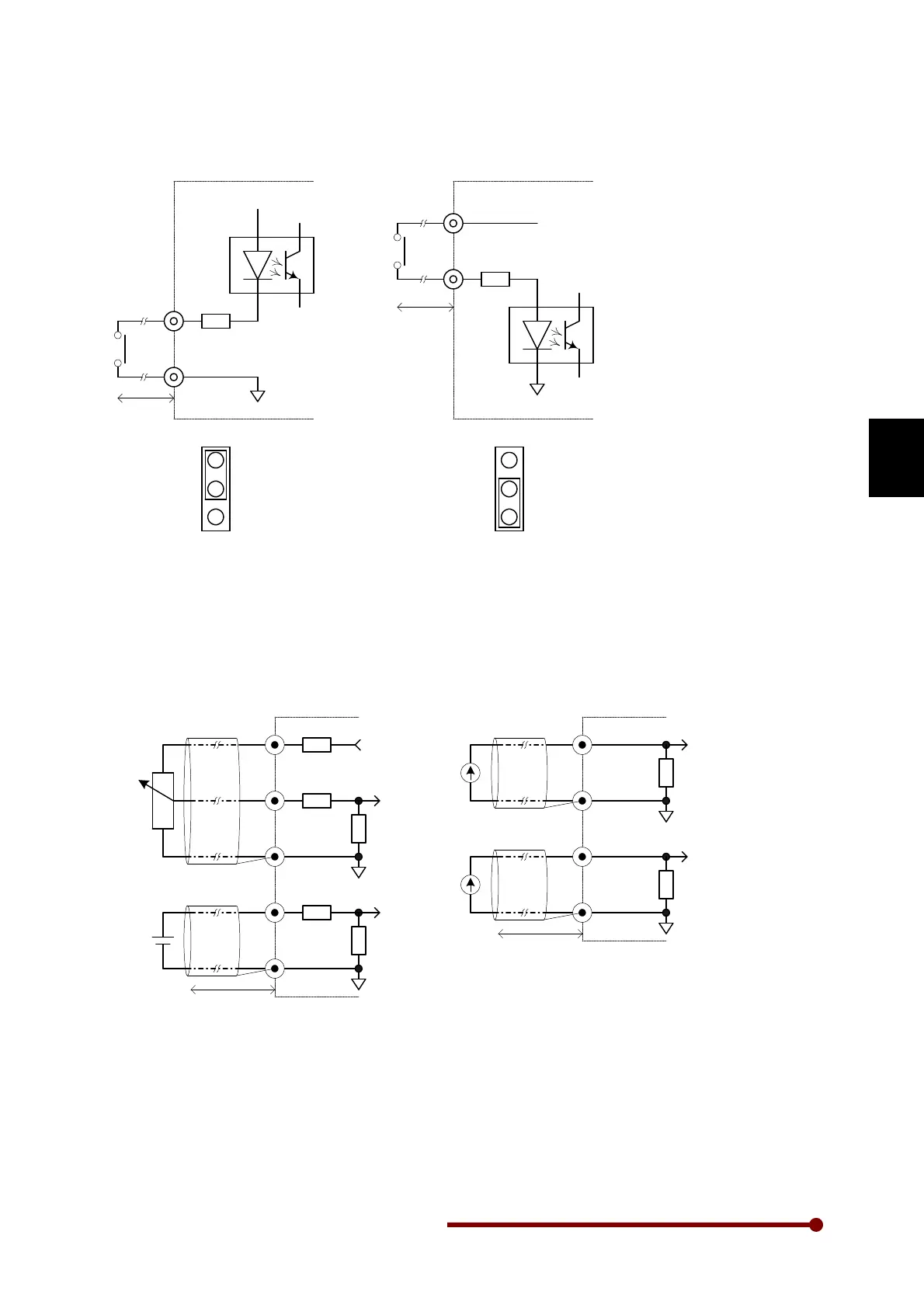

5-2 Programmable sequence input (PSI) wiring
+24V
5.6k
COM
PSI
L<50m
(164')
+24V
5.6k
+24V
PSI
L<50m
(164')
SINK LOGIC SOURCE LOGIC
SINK
SOURCE
JP1
SINK
SOURCE
JP1
Precautions
1. Wiring must not be longer than 50meters (164’).
2. Use minute current contact.
3. Do not connect to the analog input / output.
4. The sink / source logic can be changed with JP1 as shown in the above figure.
5-3 Programmable analog input (PAI) wiring
FSV
P15
+15V
940R
33k
10k
0V
2k/2W
VIN
L<30m (98.4')
33k
10k
0V
FSI
270R
0V
20mA
IIN
L<30m (98.4')
270R
0V
20mA
+10V
Precautions
1. Use 2kΩ / 2W rating potentiometer for the external variable resistor.
2. The maximum input rating of FSV /VIN is 0 to 10.5V.
3. Use a shielded wire shorter than 30meters (98.4’) for the wiring.
4. For the shield connections, open the mate side, and connect to 0V terminal on TB1.
5. The maximum input rating for FSI / IIN is 0 to +21mA or 5.67V.
6. Do not connect to the sequence input.
