Amtech Axpert-Eazy Series - Programmable Sequence Output (Relay) Wiring

Axpert-Eazy AC Variable Frequency Drive
5.5
5

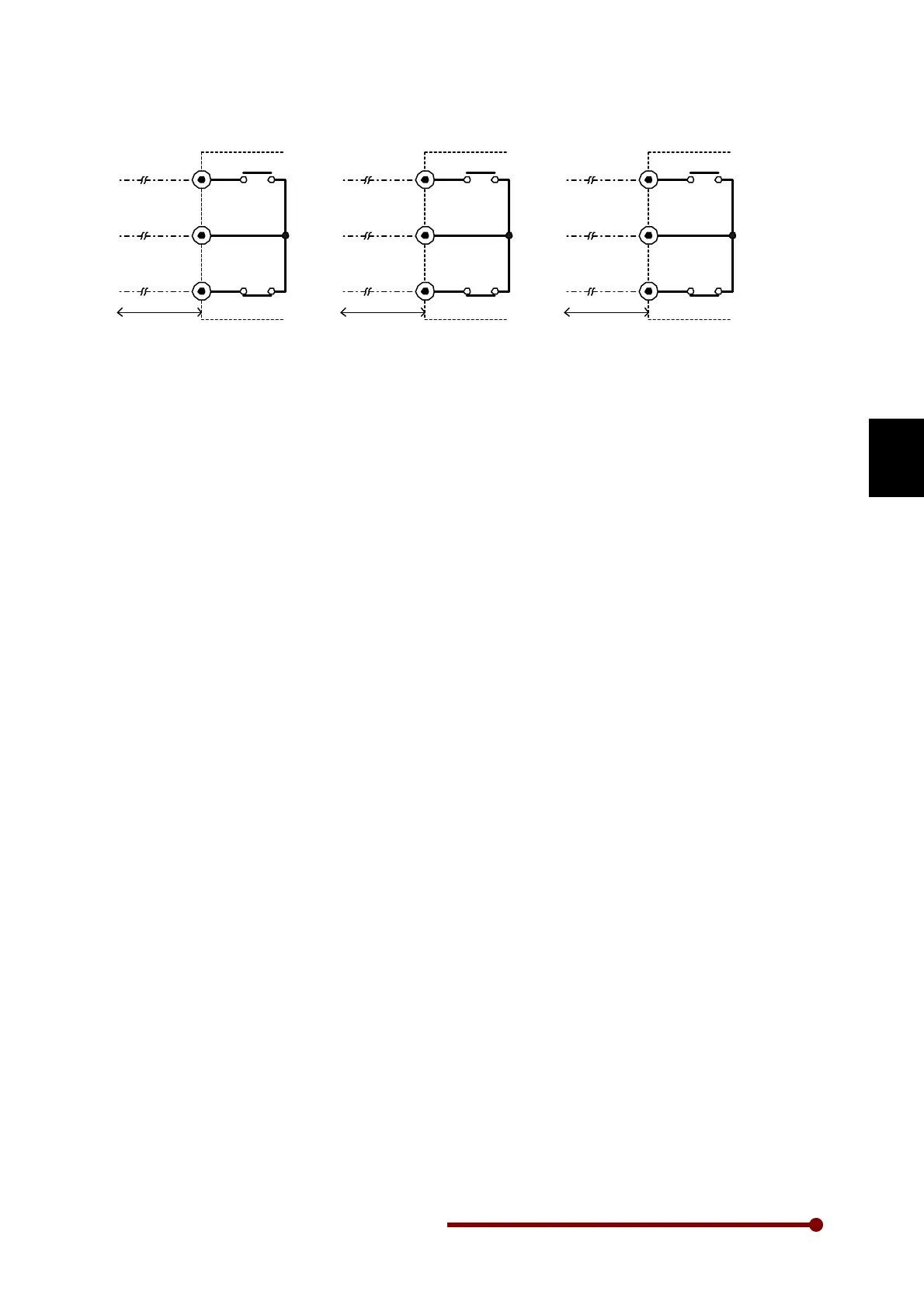

5-6 Programmable sequence output (Relay) wiring
R2C
R2A
R2B
L<50m (164')
FC
FA
FB
L<50m (164')
R1C
R1A
R1B
L<50m (164')
PROGRAMMABLE FAULT
RELAY
PROGRAMMABLE RELAY1 PROGRAMMABLE RELAY2
Precautions
1. Use within the rated range shown below.
Rated capacity (resistance load): 250VAC, 1A or 30VDC, 1A
Maximum Voltage: 250VAC
Max. Current: 1A
Switching capacity: 100VA / 100W
2. The wire must be shorter than 50meters (164’).
