Amtech Axpert-Eazy Series - Programmable Analog Output (PAO) Wiring; Programmable Sequence Output (PSO) Wiring

Amtech
5.4
5

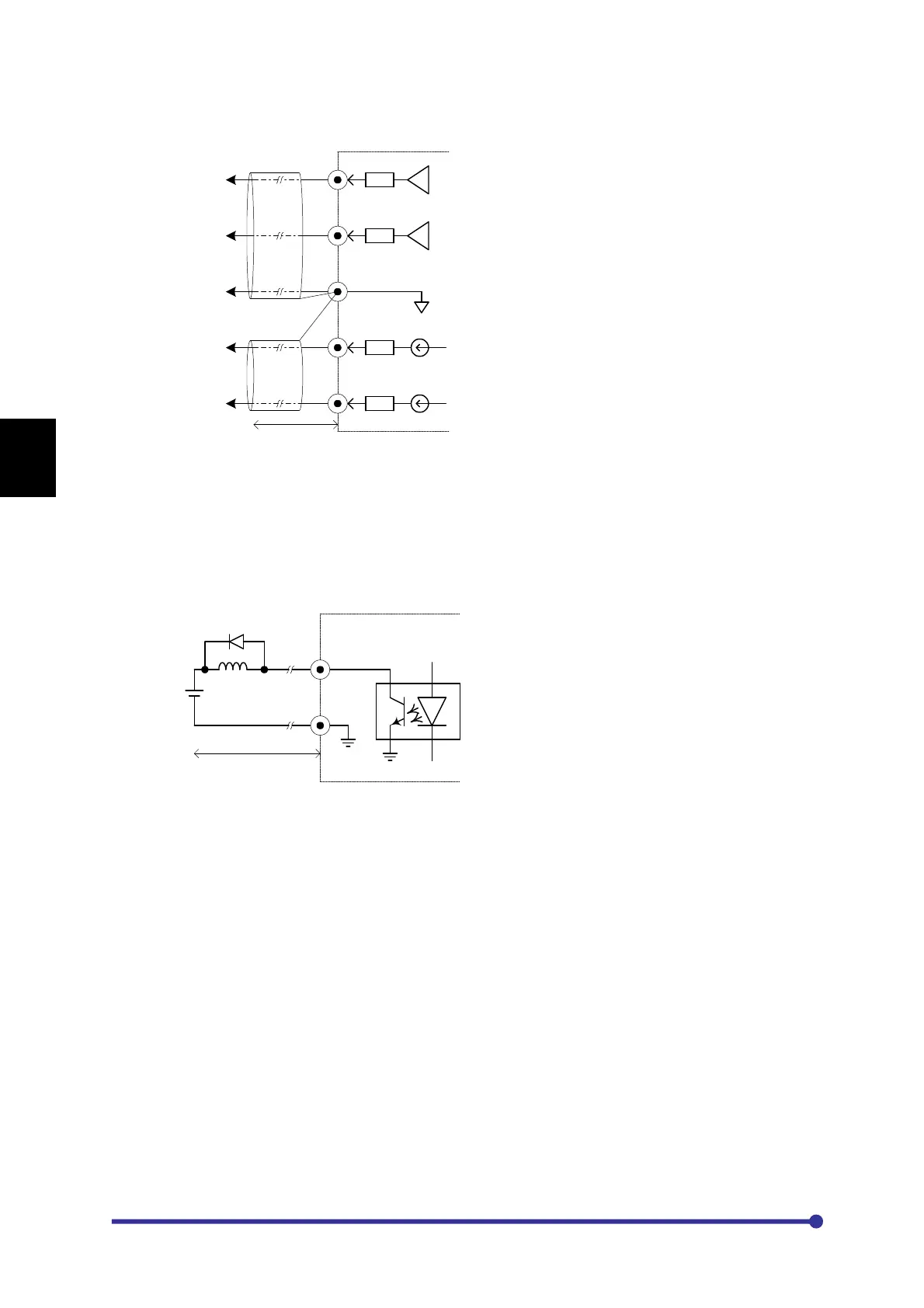

5-4 Programmable analog output (PAO) wiring
VO1
VO2
0V
L<30m (98.4')
IO2
Ground
270R
270R
IO1
50R
50R
Output Frequency
Output Current
Output Power
Output Voltage
(0-10V)
(0-10V)
(4-20mA)
(4-20mA)
Precautions
1. Use 10V full-scale meter (impedance 10k or higher).
2. The maximum output current is 1mA for voltage output.
3. Use a shielded wire shorter than 30meters (98.4’) for the wiring.
4. For the shield connections, open the mate side, and connect to 0V terminal on TB1.
5-5 Programmable sequence output (Open Collector Type) wiring
PSO
L<50m (164')
COM
COIL
Max 30Vdc/
50mA
Precautions
1. To drive an L load, such as a coil, insert the flywheel diode shown in the drawing.
2. Keep the wiring length to 50meters (164’) or less.
3. Use within the 30VDC, 50mA ratings range.
