Attaching Audio Wires
Wiring Sources & Destinations
Source and destination devices will require either balanced (differential) or
unbalanced (single-ended) connections. Figures 11 and 12 illustrate the options for
wiring between the sources and the input connectors and between the output
connectors and the destinations. More than one of these options can be used in the
same system. For balanced and unbalanced wiring details, see page 12.
Installing the Precis
LT
11

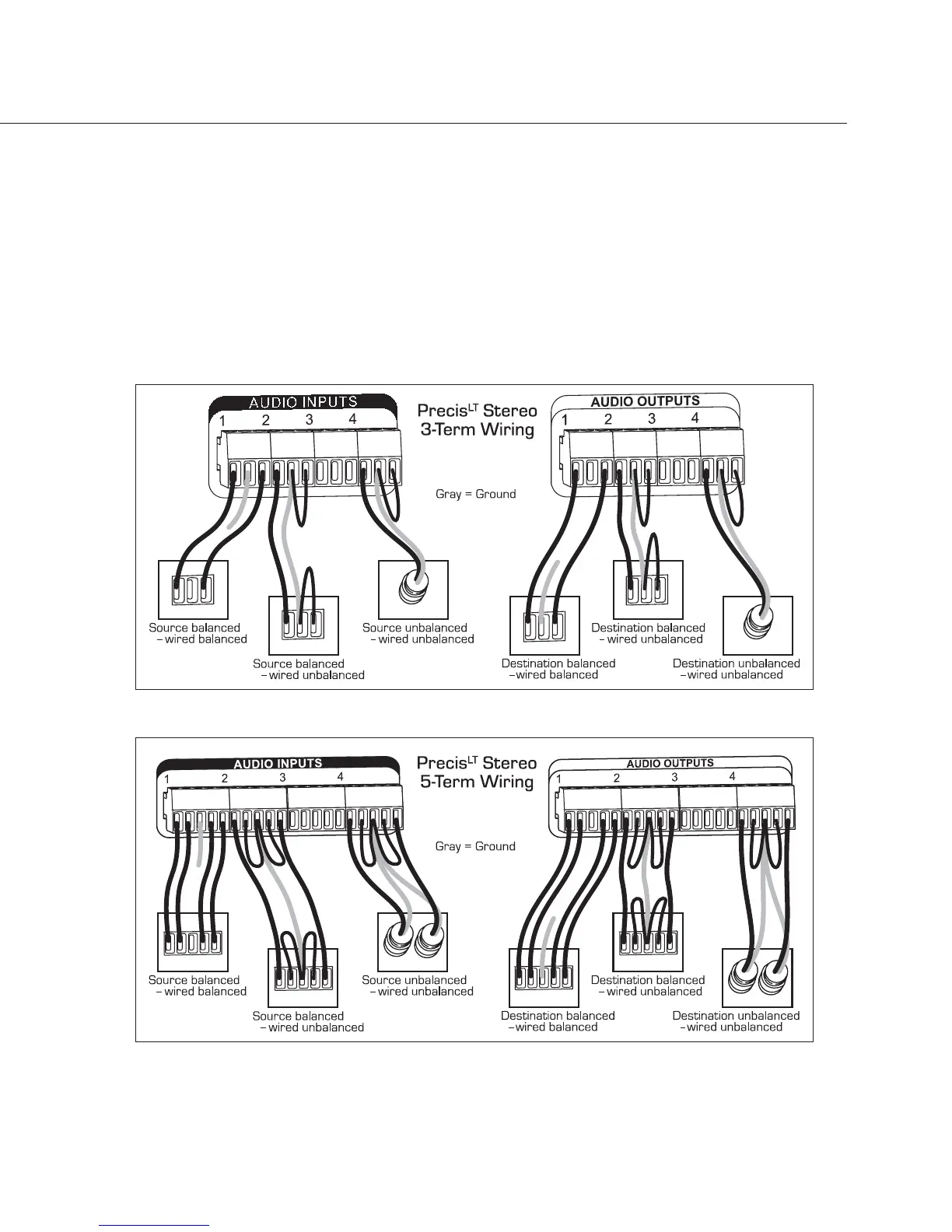

Figure 11: Options for source-to-Precis
LT
-to-destination 3-Term wiring
Figure 12: Options for source-to-Precis
t
-to-destination 5-Term wiring
