AMX Precis LT User Manual

Stereo Audio 3-Term
To attach stereo audio input and output wires:
1. Unscrew the clamps on the audio connector.
2. Insert the wires (see Figure 13 for wire placement for single-ended stereo) and
firmly re-tighten the clamps to make secure connections.
Stereo Audio 5-Term
To attach stereo audio input and output wires:
1. Unscrew the clamps on the audio connector.
2. Insert the wires (see Figure 14 for wire placement for balanced and unbalanced
audio) and firmly re-tighten the clamps to make secure connections.
Note: When using twisted pair wire, connect the shield (ground) at one end only
(recommend receiving end) to minimize low frequency noise (see Figure 12).
12 Installing the Precis
LT

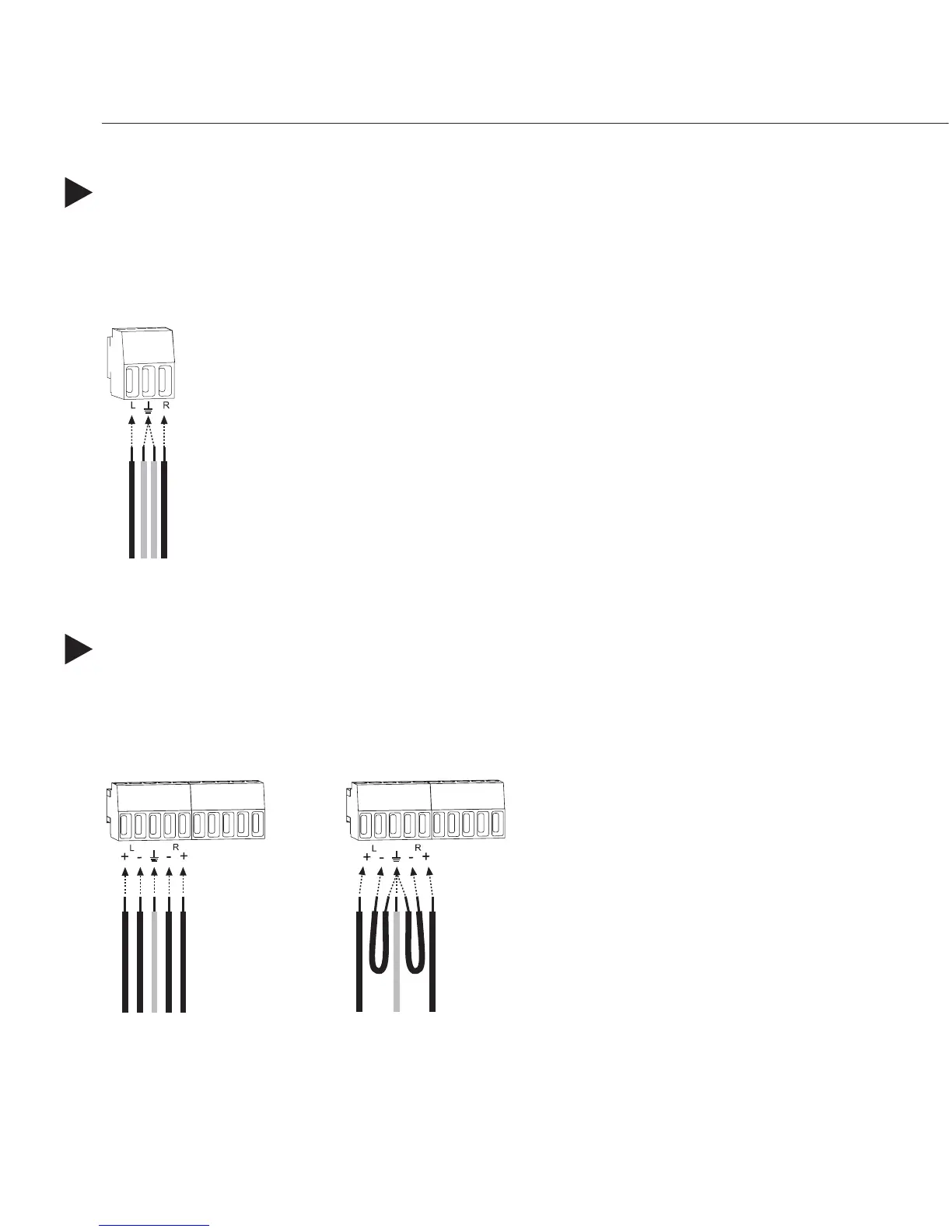

Stereo Audio 3-Term & 5-Term
Figure 13: Insert the wires and re-tighten clamps
Figure 14: Balanced audio Unbalanced audio

AMX Precis LT Specifications

General

Brand	AMX
Model	Precis LT
Category	Matrix Switcher
Language	English
