AMX Precis LT User Manual

Attaching Video & Audio RCA Cables
The example in Figure 15 shows RCA jacks attached for routing Y/Pb/Pr and stereo
audio source signals as Input 1.
Component Video (RCA)
To attach RCA video cables, insert the RCA plugs into the RCA jacks according to
the labels on the enclosure (see Figure 15).
Stereo Audio, Unbalanced (RCA)
To attach RCA stereo audio cables, insert the RCA plugs into the RCA jacks (see
Figure 15).
Installing the Precis
LT
13

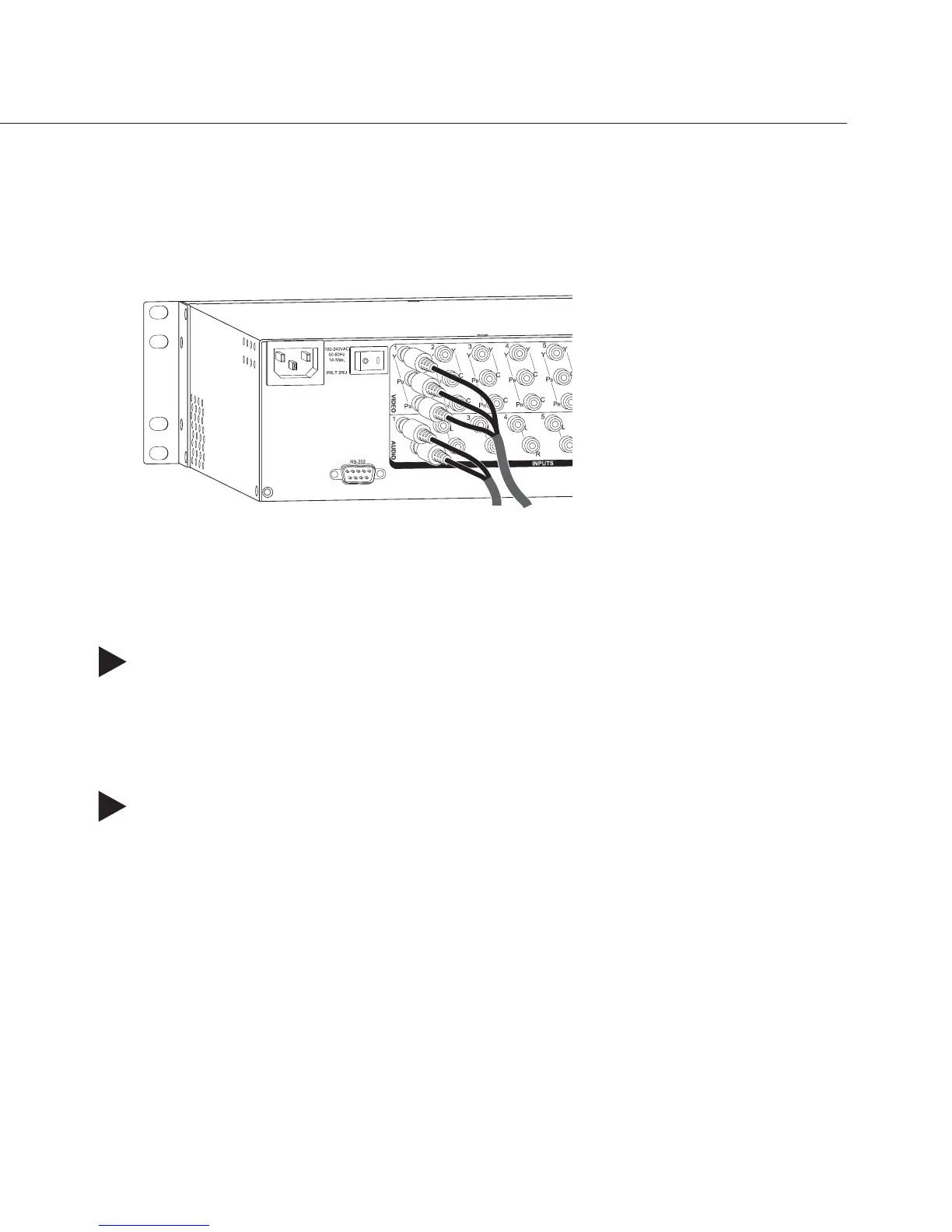

Figure 15: Insert the RCA plugs into the RCA jacks
