Product Specifications
For General and AC Power Specifications, see page 3.
Applies to Precis
LT
RGBHV/HD-15 & Stereo Models (3-Term)
Blank Panels 37-20 37-23 37-26 37-29
Front Control
Panels
P37-0404-844 P37-0408-844 P37-0804-844 P37-0808-844
Parameter Conditions Value
Video
Throughput
Frequency
Response
1toAll
+/-3 dB to 300 MHz or better
+/-1.5 dB to 100 MHz or better
Crosstalk
(adjacent
channel)
f=5MHz
f=30MHz
f = 150 MHz
<-67 dB
<-50 dB
<-40 dB
Signal to Noise
Ratio (SNR)
Vin = 0.7 V,
100% IRE
>65 dB
30 RGBHV/HD-15 & Stereo Models
RGBHV/HD-15 & Stereo Product Specifications

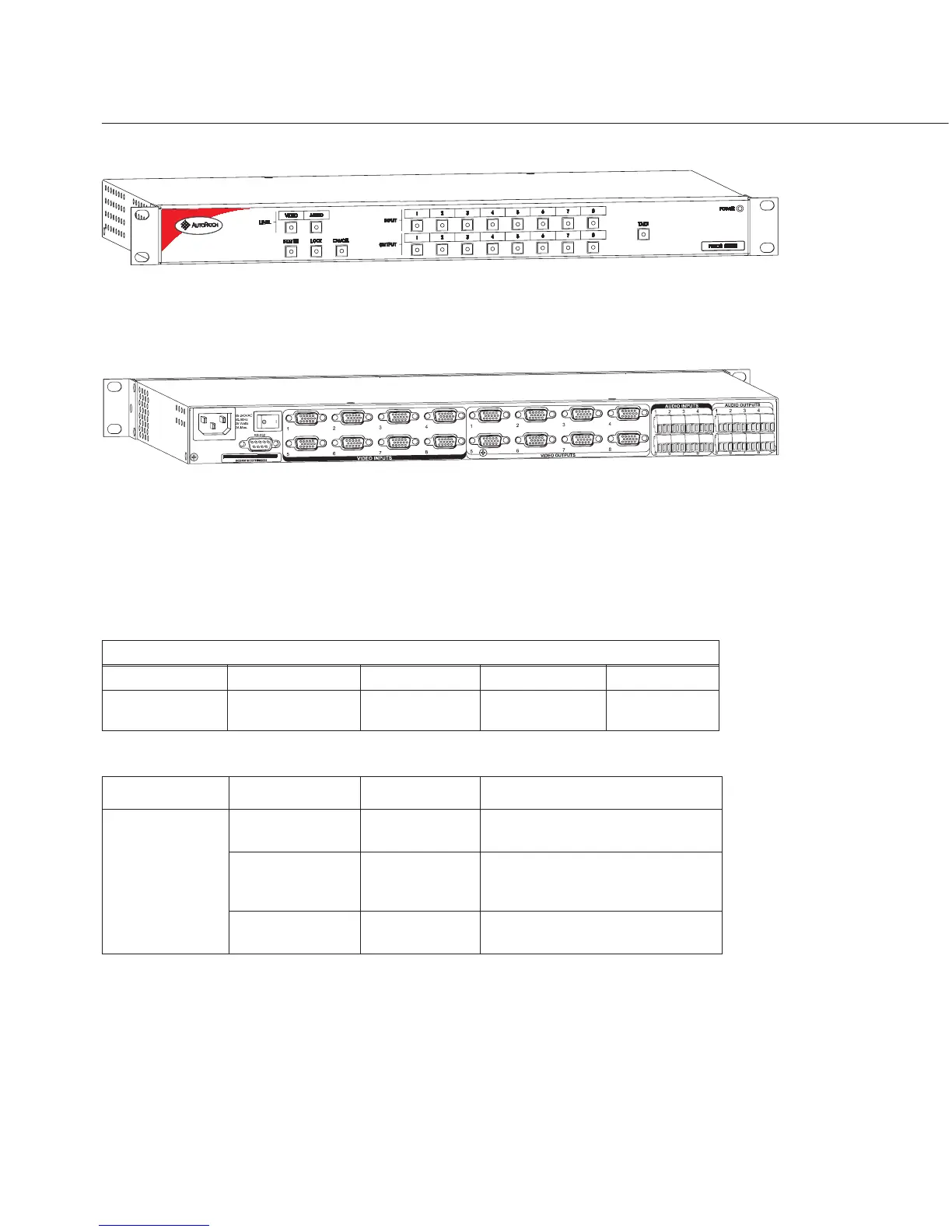

Figure 26: Front view of Precis
LT
Model P37-0808-844
Figure 27: Rear view of Precis
LT
Model 37-29 or Model P37-0808-844
