Note: The number of input and output keys vary depending on the configuration.
Product Specifications
Applies to Precis
LT
Standard Video & Stereo Models (5-Term)
Blank Panels 37-96 37-99 37-02 37-05
Front Control
Panels
P37-0404-115 P37-0408-115 P37-0804-115 P37-0808-115
For General and AC Power Specifications, see page 3.
Parameter Conditions Value
Standard
Video
Throughput
Frequency Response
1toAll
+/-3 dB to 50 MHz or better
+/-1 dB to 15 MHz or better
Differential Gain*
f = 3.58 MHz,
10 to 90% APL
<0.2% or better
Differential Phase*
f = 3.58 MHz,
10 to 90% APL
<0.2° or better
Crosstalk
(adjacent channel)
f = 5 MHz <-65 dB
Signal to Noise Ratio
(SNR)
Vin = 0.7 V,
100% IRE
>65 dB
* Differential gain and phase measurements are performed with a standard 5-step modulated staircase
test signal.

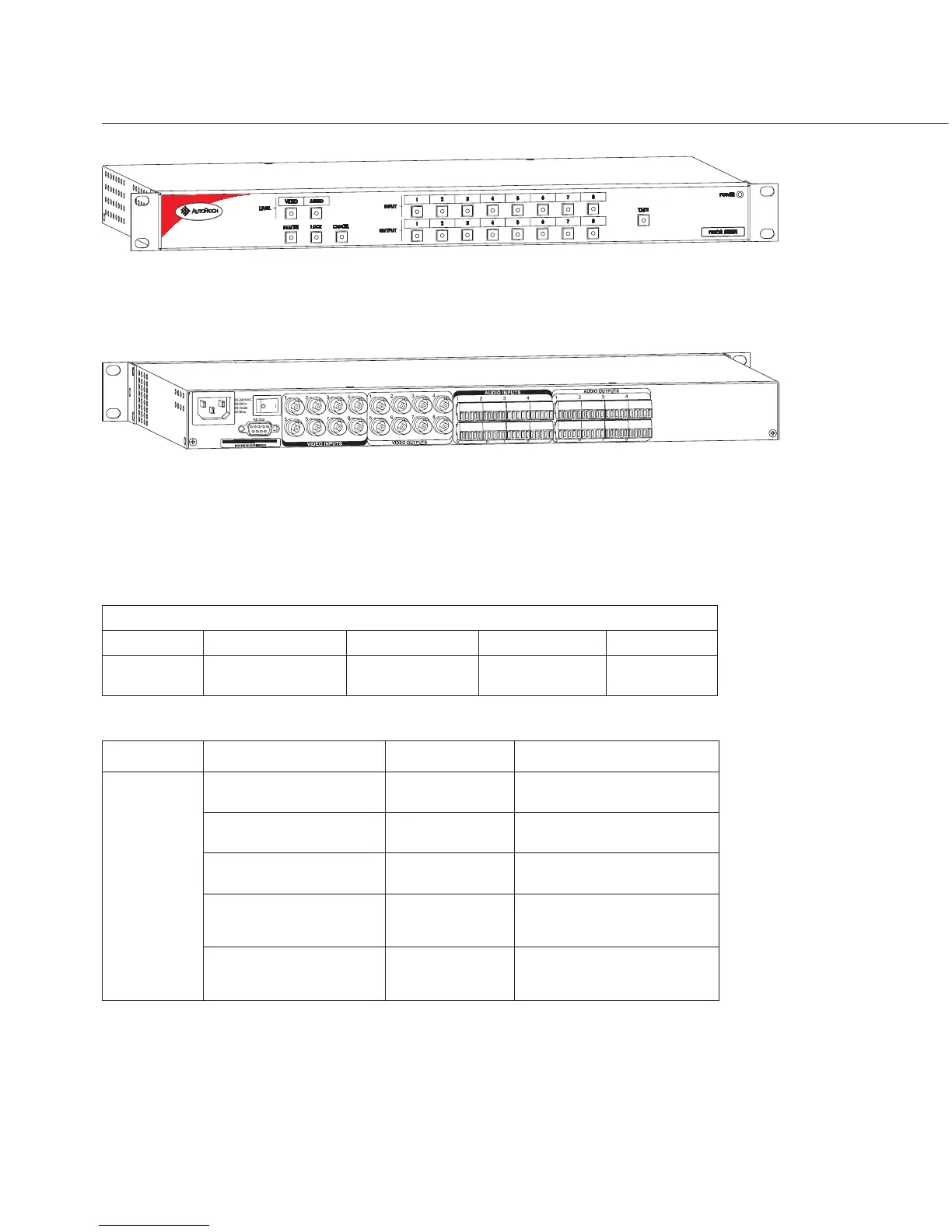

19 Standard Video & Stereo Models
Standard Video & Stereo Product Specifications
Figure 19: Front view of Precis
LT
Model P37-0808-115
Figure 20: Rear view of Precis
LT
Model 37-05 or P37-0808-115
