Radio
The Radio tab (see Figure 287) lets the user configure the channel enablement, Tx and Rx characteristics.
• Select channel control mode (hardware enable signals or API command).
• Select HIGH, MED, or LOW receiver ADC rate.
• Select active Rx ADC from high performance or low power types
• Determine the Analog low-pass filter frequency response
• Select Rx frequency offset correction
• Select DAC, 3 dB boost mode
• Select Tx frequency offset correction
• Select LPF Power consumption for the Tx and Rx.
• Transmit Data Source can be used to send data from the FPGA or from the internal NCO internal signal source.

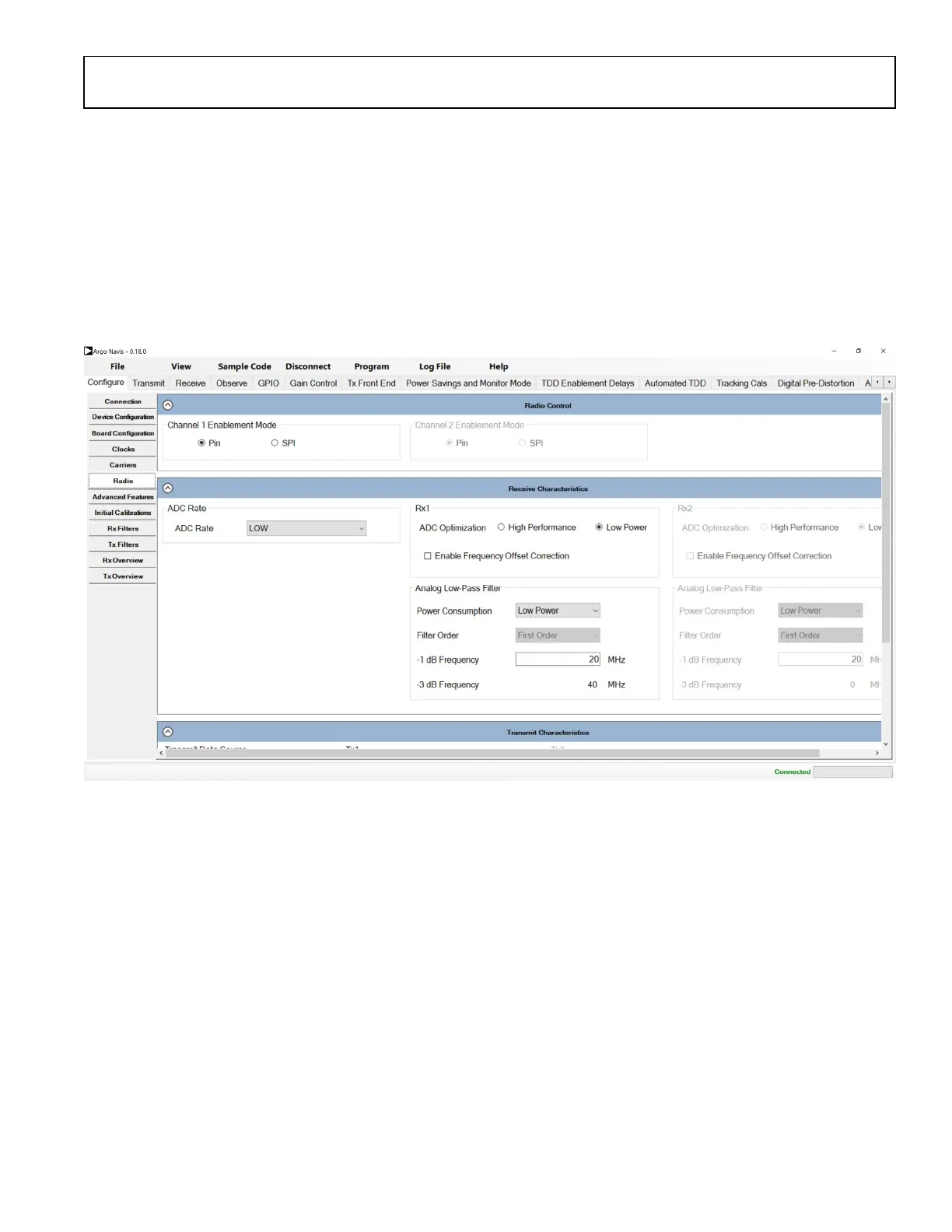

Figure 287. Radio Configuration Tab
