EVAL-ADuCM355QSPZ Evaluation Board UG-1308
Rev. A | Page 11 of 24
16887-014

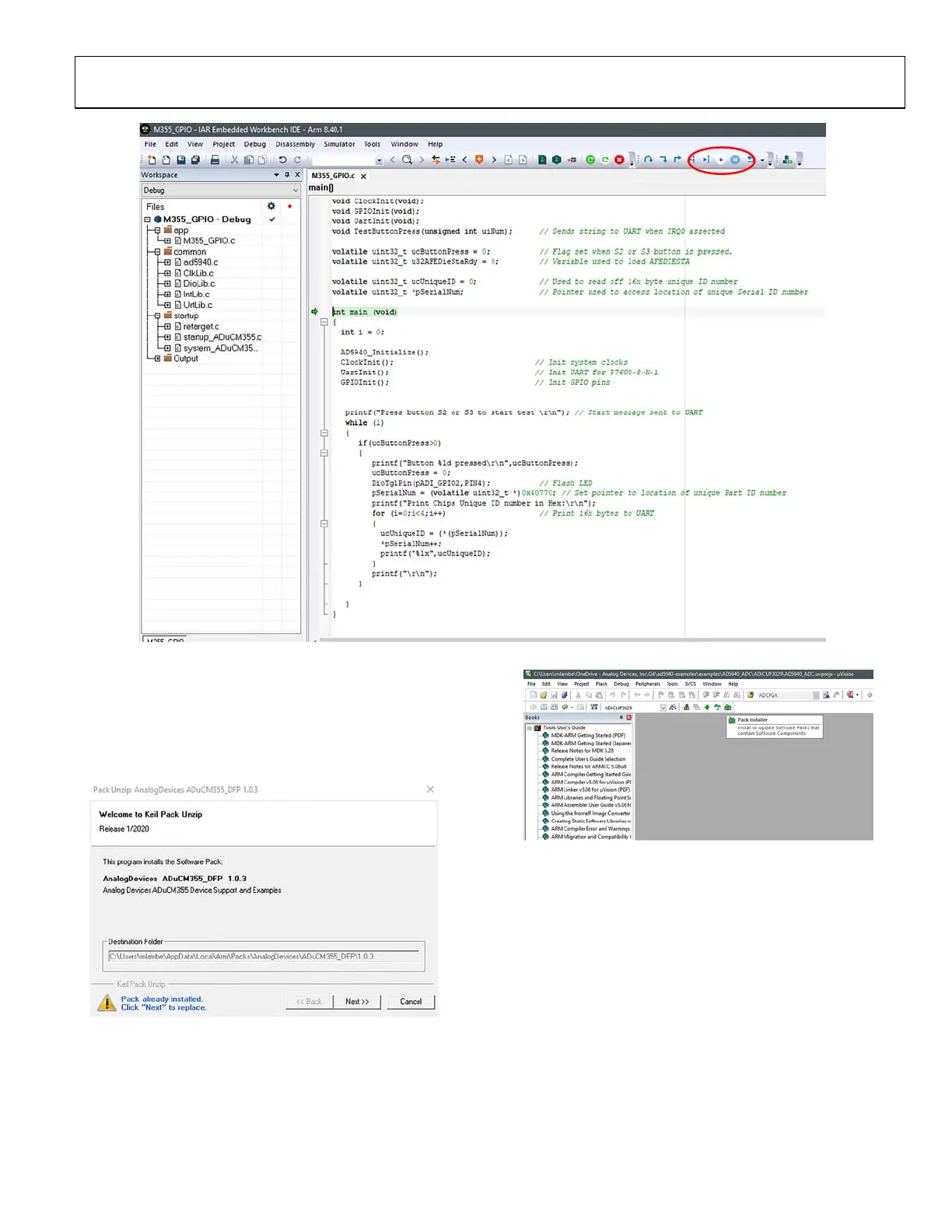

Figure 14. Debug Interface
RUNNING A GPIO EXAMPLE IN KEIL μVISION
To download the ADuCM355 device family pack for Keil μVision,
visit the Keil website and search for MDK5 software packs. Save
the .pack file to a directory on the PC. Double click the file to
install the pack.
16887-215
Figure 15. ADuCM355 Pack Installer
Follow the on screen instructions to unzip the contents from
the .pack file, and click Finish when complete. Open Keil μVision,
and open the pack installer, as shown in Figure 16.
16887-216
Figure 16. Opening Pack Installer in Keil μVision
On the left side of the pack installer window, click the Devices
tab and select the ADuCM355, as shown in Figure 17. On the
right side of the pack installer window, click the Examples tab
(see Figure 18). All supported example projects for the
ADuCM355 display as shown in Figure 18.
