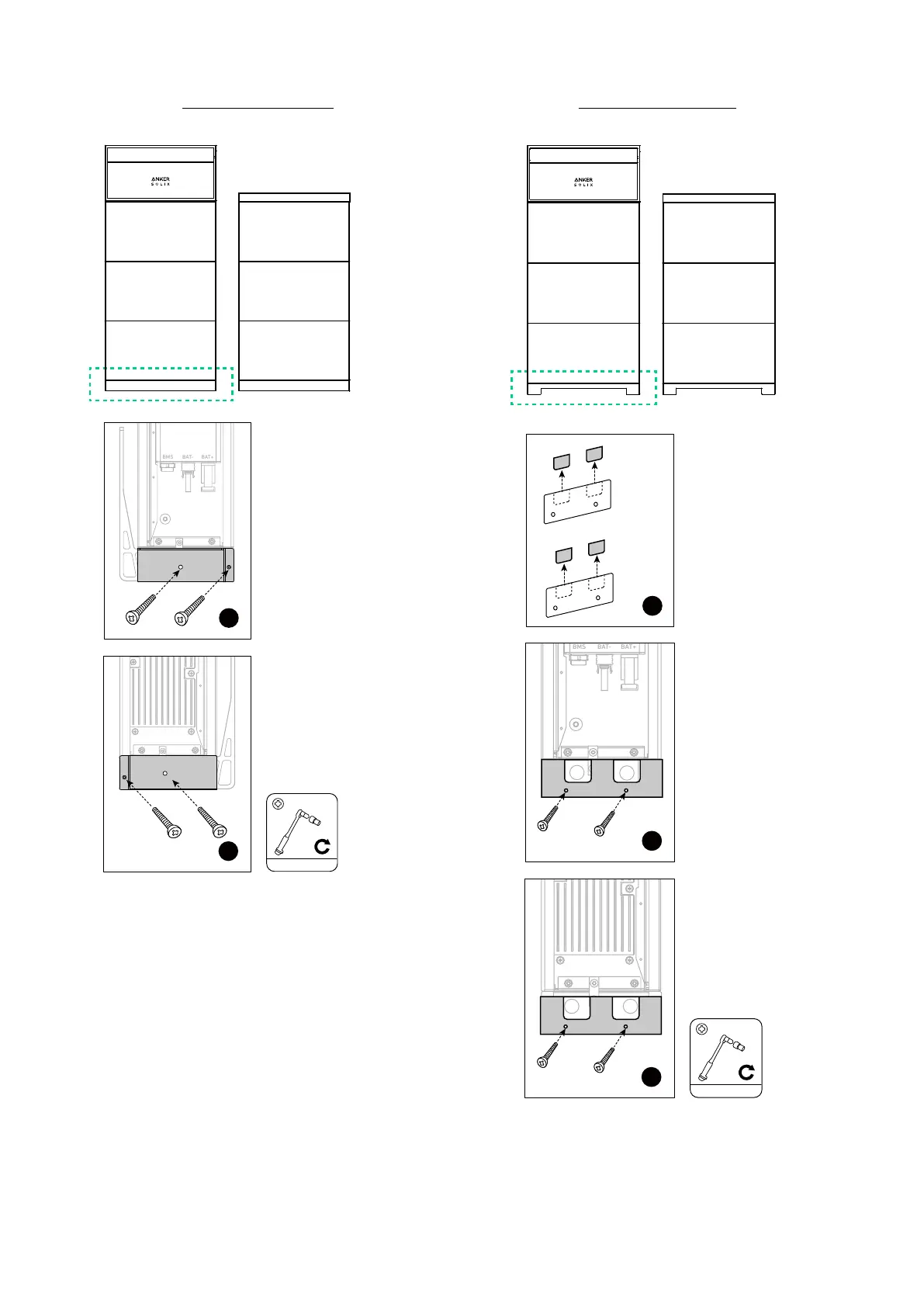

4. Install the base baes when installing two columns of modules.
Wall-Mounted Modules Floor-Mounted Modules
a
1.2 N·m
M4×10 mm
b
BMS
BAT-
BAT+
BMS
BAT-
BAT+
c
1.2 N·m
M4×10 mm
a
BMS BAT- BAT+
BMS BAT- BAT+
b
Figure: Install the base baes for wall mounting.
a
1.2 N·m
M4×10 mm
b
BMS
BAT-
BAT+
BMS
BAT-
BAT+
c
1.2 N·m
M4×10 mm
a
BMS B AT- BAT+
BMS B AT- BAT+
b
Figure: Install the base baes for floor mounting.
