Equipment Dimensions

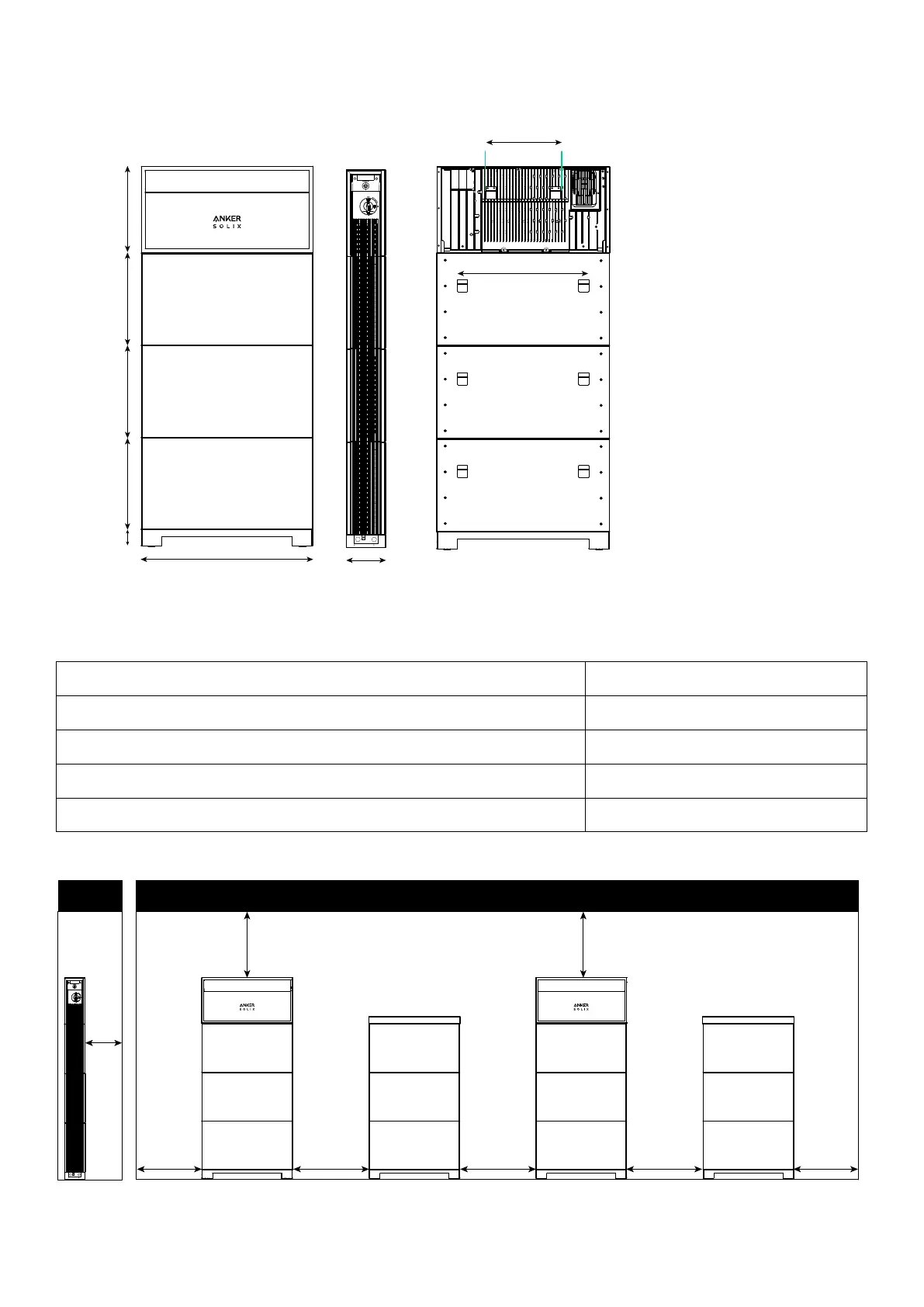

Figure: Dimensions of Anker SOLIX X1.
150 mm
335 mm
360 mm
70 mm
670 mm
360 mm
360 mm
510 mm
307 mm
Installation Clearance
Ensure sucient spacing for cabling, heat dissipation, and safety isolation.
Minimum clearance from the wall on both sides 300 mm
Minimum clearance from the ceiling 500 mm
Clearance between side-by-side modules 300 mm to 600 mm
Minimum clearance in front of the modules 500 mm
Minimum clearance from any heat source (hot water system, gas heater or the like) 1 m
Figure: Installation space for floor-mounted modules.
＞500 mm ＞500 mm
≥ 300 mm ≥ 300 mm
≥ 500
mm
300-600 mm 300-600 mm 300-600 mm
Side View Front View
