4.2 Plan Conduit Run
1. Plan a short and ecient conduit run. When connecting two columns of modules, it is recommended to follow the
instructions below.
For floor mounting, route cables into the second column from the inside of the floor mounting base in the first column.

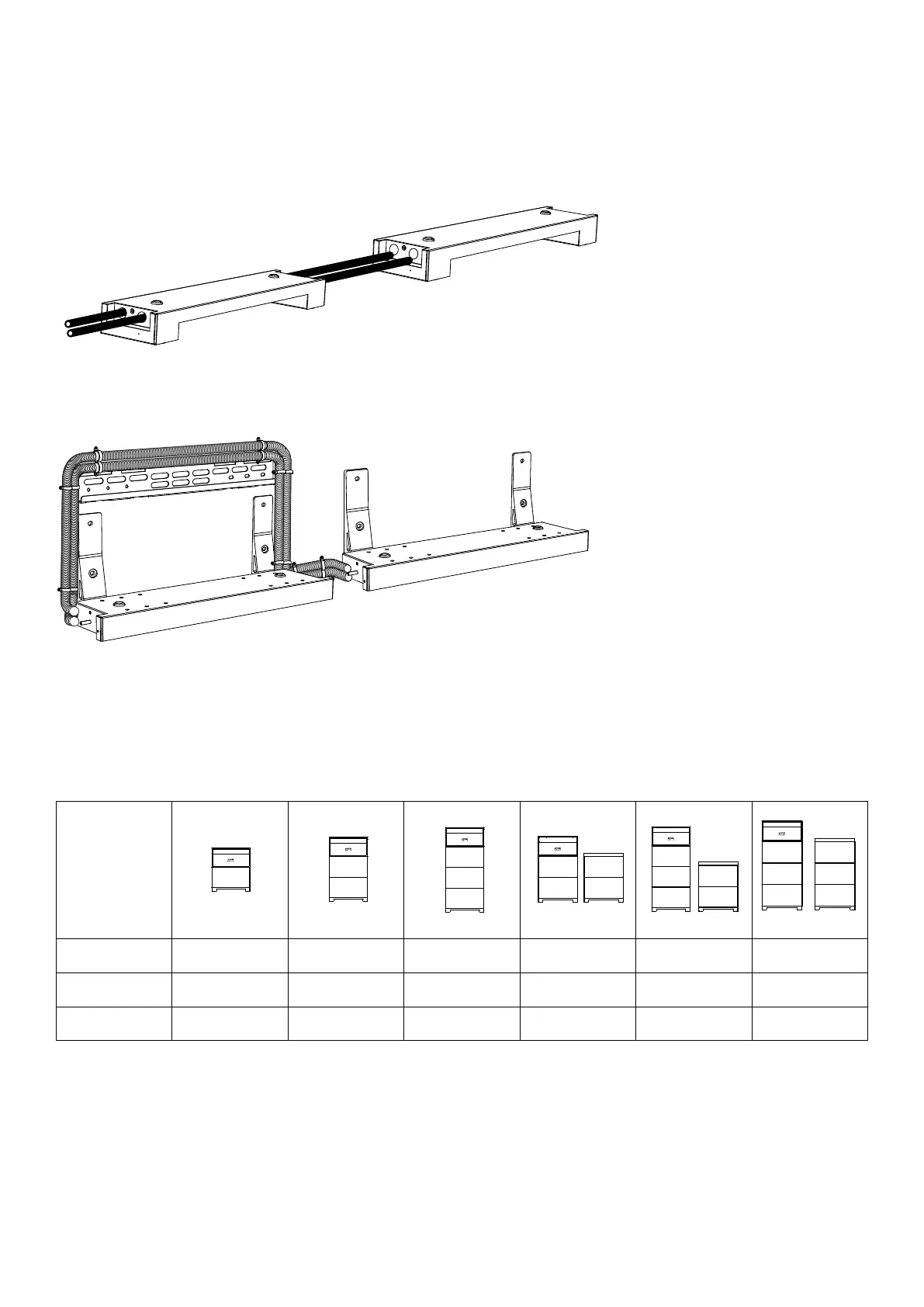

Figure: Conduit run for floor mounting.
For wall mounting, route cables from the back of the first column into the second column.
Figure: Conduit run for wall mounting.
4.3 Measure the Distance
Reserve sucient space for heat dissipation and safety isolation. Follow the dimensions below to measure the distance
between system components.
Stacking
Stack no more than one power module and three battery modules per column.
Anker SOLIX X1
Battery Module ×1 ×2 ×3 ×4 ×5 ×6
Energy Capacity 5 kWh 10 kWh 15 kWh 20 kWh 25 kWh 30 kWh
System Model X1-P6K-B05-S X1-P6K-B10-S X1-P6K-B15-S X1-P6K-B20-S X1-P6K-B25-S X1-P6K-B30-S
