Anker SOLIX X1 - Power Module

04
Power module
Battery modules
Floor mounting base (for floor mounting)
·
Use the baseplate for wall mounting.
Heat sink
Wall-mount cleats
3.2 Power Module

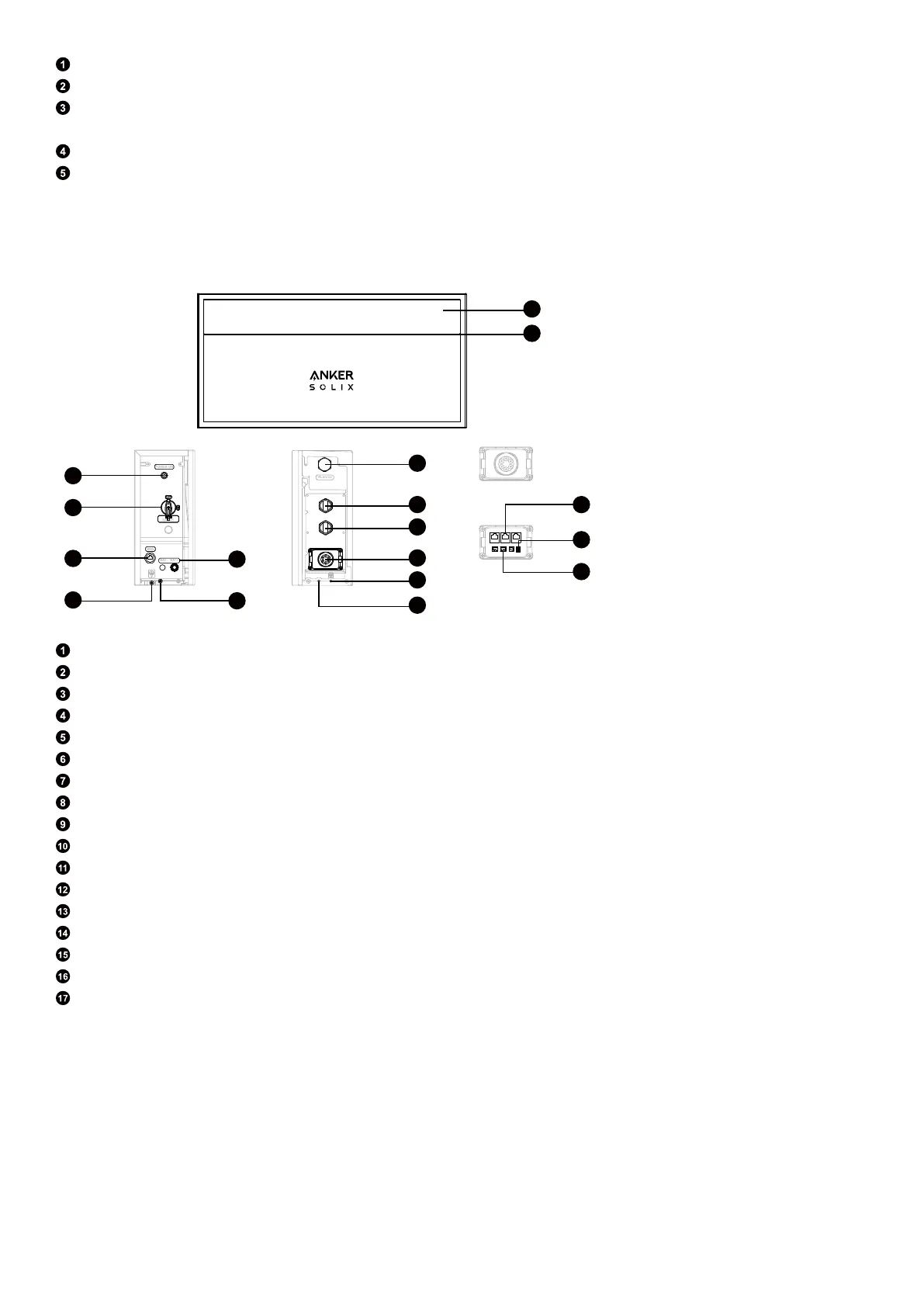

Figure: Appearance of the power module.
3
4
5
6
7
1
9
2
8
BAT
SWITCH
BMS
BAT- BAT+
POWER ON
BAT
SWITCH
BMS
BAT- BAT+
POWER ON
WLAN/4G
10
11
12
13
14
15
17
16
LED screen
Status light
Black start button
BAT switch
BMS port
Internal ground point
DC power ports (BAT+ / BAT–)
Screw hole for locking modules
WLAN / 4G port
AC grid port
AC backup port
Wiring compartment cover
External ground point
Screw hole for locking modules
COM ports (DRM / PCS_COM2 / PCS_COM1)
DIP switches
COM terminals (NC1 / NC2 / Meter)
