[4] Cursor distance information
A: Distance from the origin of the trace to Cursor A
B: Distance from the origin of the trace to Cursor B
A->B: Distance between Cursor A and Cursor B
As you move the cursors, the cursor distance information updates
simultaneously.
[5] Loss mode, Measurement, and Reflectance

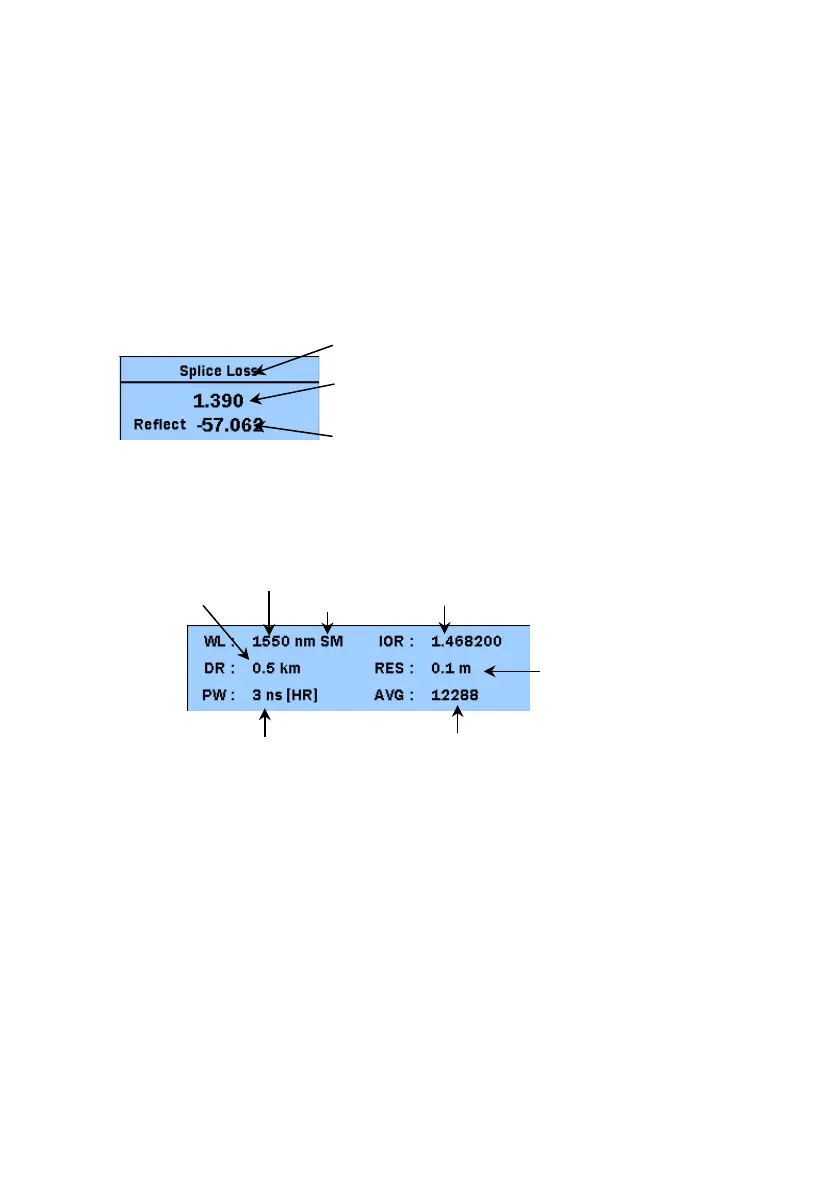

[6] Test Parameters
Test parameters used for test are displayed.
A progress bar is displayed during measurement.
WL: Wavelength, Fiber Type
DR: Distance Range
PW: Pulse Width
IOR: IOR
RES: Resolution
AVG: Averaging times
Test parameters for the primary trace are displayed for a trace
recalled from a file
The Pulse width value is followed by the Dead-zone mode.
●
ER: Enhanced Range
●
HR: Standard
Loss Mode
Cu
rrent measured loss (dB)
or transmission loss (dB/km)
Reflectance (dB) if event is reflective
Pulse Width
Averaging times
Distance
Range
Wavelength
IOR
Fiber Type
Resolution
