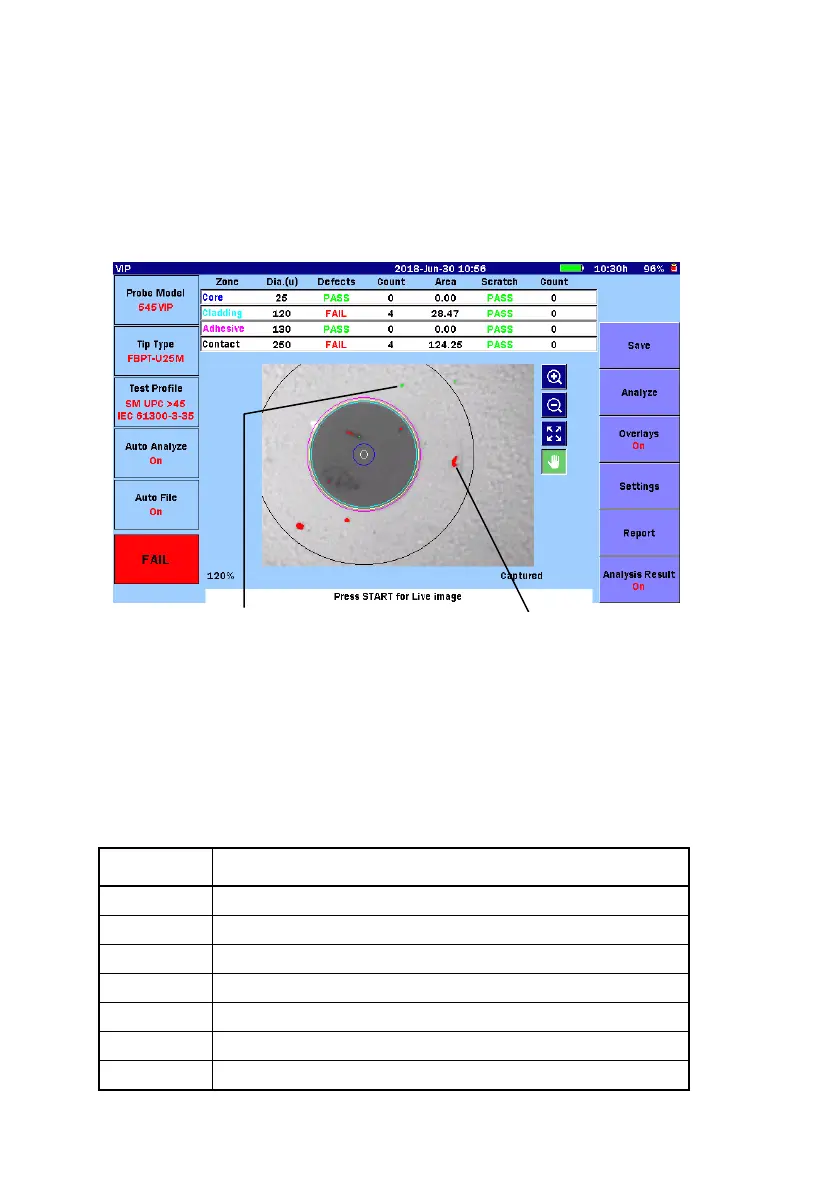

[8] Pass/Fail Result
Displays the result judged from the number of defects and scratches
which are discovered from analyzing the image.
Touch
Analysis to display PASS or FAIL. Touch Analysis Result to set to
On, analysis results of each zone are displayed.
If the size of a defect found on the fiber endface is acceptable, the defect
is highlighted in green. If the size of a defect found on the fiber endface
is unacceptable, the defect is highlighted in red.
The following items appear in the analysis result table.
Table 6 Items in Analysis Result
Item Explanation
Name of the analysis area
Measurement result of the diameter (µm)
Pass/Fail result of defects
Number of measured defects
Total area of the detected defects (µm
2
)
Pass/Fail result of scratches
Number of measured scratches
Acceptable Defect
(Green)
To Next Page
