For complete instructions on operation and maintenance, we refer to the separate OEM
owner’s manual that was developed specifically for this equipment. It is provided with the
Anytec document bag.
4.5.2 Simrad radar system (optional)
The boat may be delivered with an optional radar system. The radar is an extension
module to the Simrad NSS12 evo3 navigation system and shares the same display at the
cockpit helm.
It consists of a radar module which is mounted under the helm and connected to the
NSS12 unit, and a radar antenna mounted on the targa. Due to the advanced technology
of the radar, we refer to the OEM manual. Your Anytec dealer can also assist you if
needed.

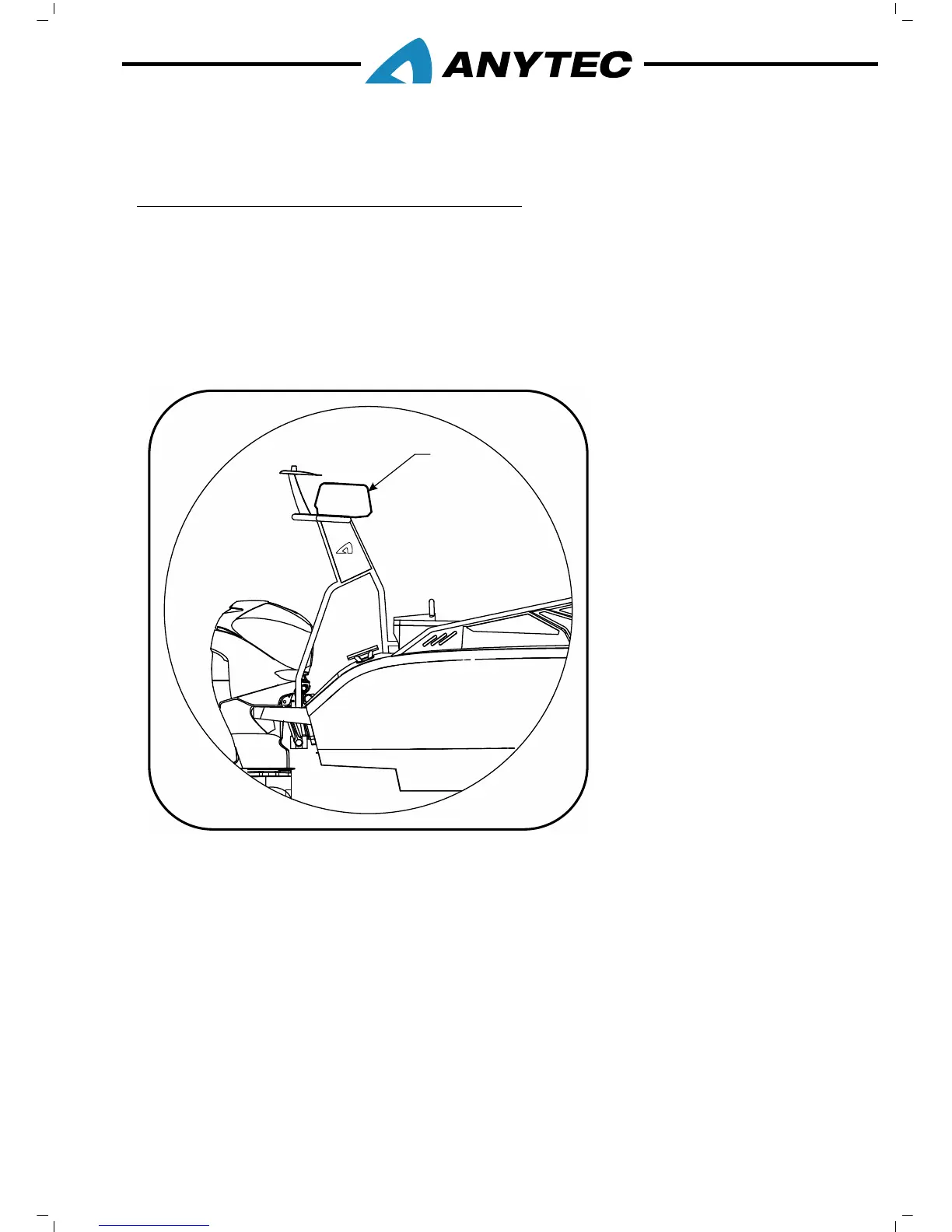

1. Radar
Principal figure only
For complete instructions on operation and maintenance, we refer to the separate OEM
owner’s manual that was developed specifically for this equipment. It is provided with the
Anytec document bag.
4.6 ENGINE CONTROLS AND INSTRUMENTATION
The engine controls and the instrumentation will vary depending on the engine brand
and model; thus it is covered by the engine owner’s manual. Refer chapter 3.11 for
typical locations of controls and instruments.
Gas and gear throttle
This control is used for controlling the gear and has 3 positions (forward, neutral,
backward). To shift it in neutral while engine is running, the engine rpm must be at idle.
