AT-D868UV CodePlug Programming Guide
V-1.18
Page 12 of 25 © 2017 Trygve Svärd KD0PNQ
STEP 7 - CHANNEL – FREQUENCY SET-UP

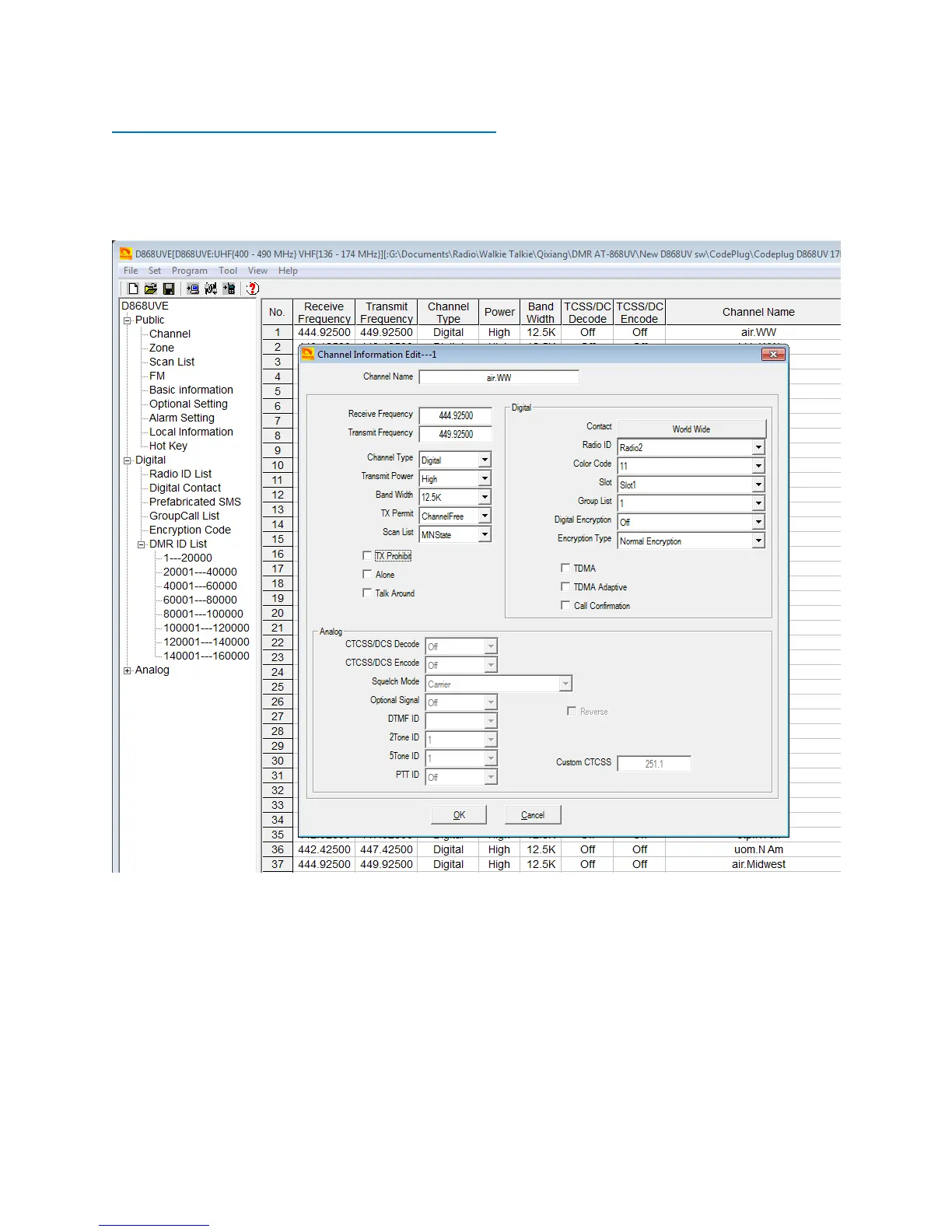

The AT-D868UV offers programming of 4,000 channels for UHF and VHF. To start
double click on the first line No.1 to open the Channel Information programming window
for that channel:
The Channel Information Edit window contains several options which will be explained
below:
Channel Name: the name of the channel (typically name of repeater and TG)
Receive Freq.: the VHF or UHF frequency
Transmit Freq.: the VHF or UHF frequency
Channel Type: Select Analog, Digital, Mixed Analog or Mixed Digital
Transmit Power: Select one of four levels 6W/2.5W/1W/0.5W
Wide Narrow: Select the bandwidth of transmit
