3.2. Installing Motherboard into Chassis
This server chassis supports the motherboard form factor of SSI, Baby AT, AT, Full ATX &
AT, which can be integrated into a standalone or standard 19” rack mount, and thus greatly
enlarges its working field.
H800 provides an Intel standard I/O port bracket, please check the motherboard
I/O port to see whether it can meet the size and port output or not. If not, you’ll
have to get a correct one from motherboard accessory and change the port
bracket before installing the motherboard.

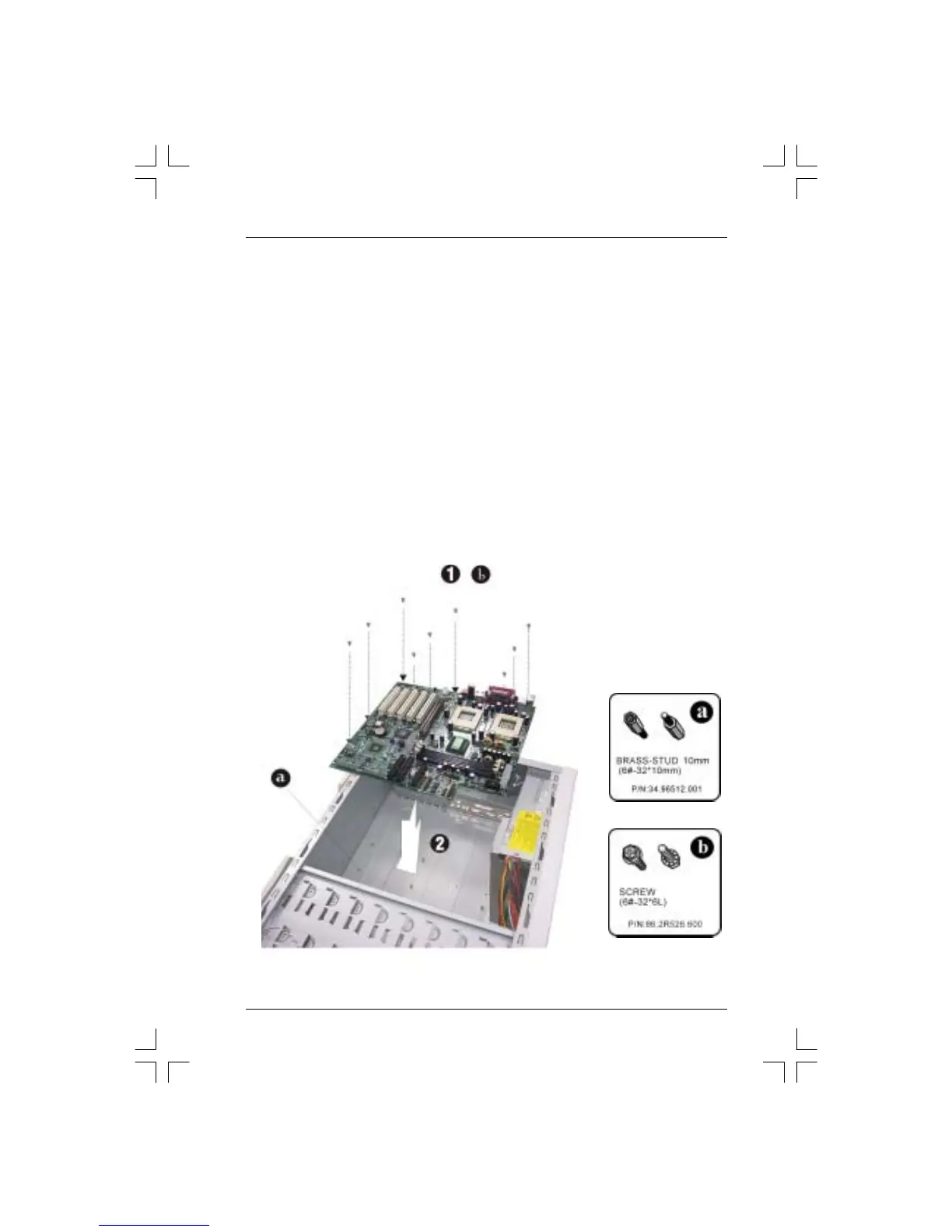

Locate and align the screw holes on the motherboard and chassis, place the
motherboard at the correct position, and then screw brass columns onto chassis’s
metal shell.
Secure the motherboard on the brass columns with screws #6-32.
