Parts Description
2-3

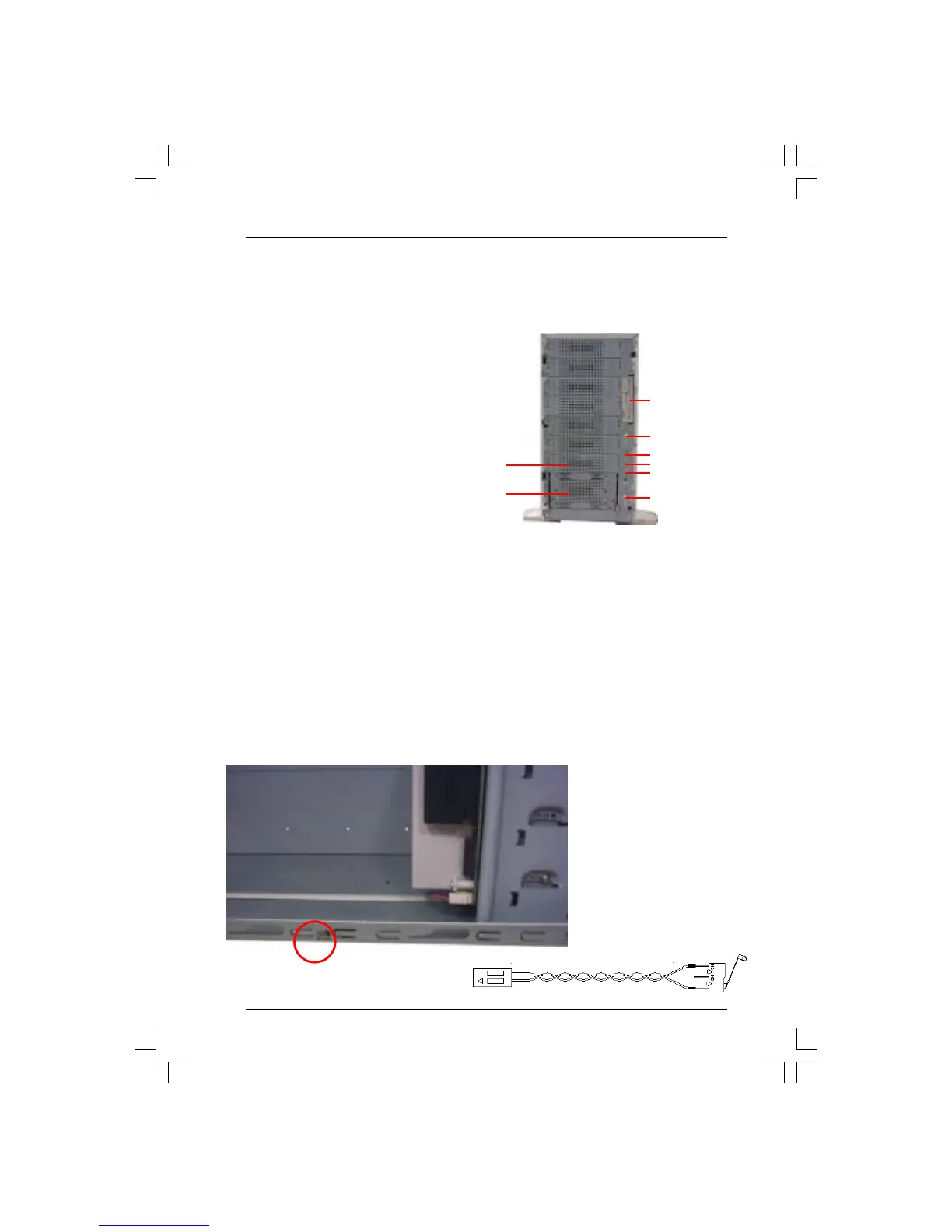

2.1.2 Front panel
Drive Bays:
Reset Knob
HDD LED
System Status LED
Power LED
Power Knob
3.5-inch Drive Bays
The H800 is designed with nine
5.25” drive bays and one 3.5”
drive bays. You can occupy the
space of two 5.25” drive bays
with one standard HDD cage;
and the space of HDD cage can
be occupied with three 3.5” IDE
HDD likewise. The Drive Bays
can be easily arranged based on
your needs to have the best
system performance.
5.25-inch
Drive Bays
HDD Cage
Power Knob:
Press the power knob to boot the system.
Reset Knob:
Press the Reset knob to reset the system.
LED Indicators:
There are three LED on the lower right side of the front panel indicating the status of
(1) Power LED - green, (2) Hard Disk Drive - orange, and (3) System Status - yellow.
Intrusion Alarm Detector:
This micro switch is used to detect the opening of front cover and only works when
connected to motherboard. Please check you MB manual then install this connector into
MB.
P/N: 50.93301.001
Intrusion Alarm
