Optional Parts Lists
4-1

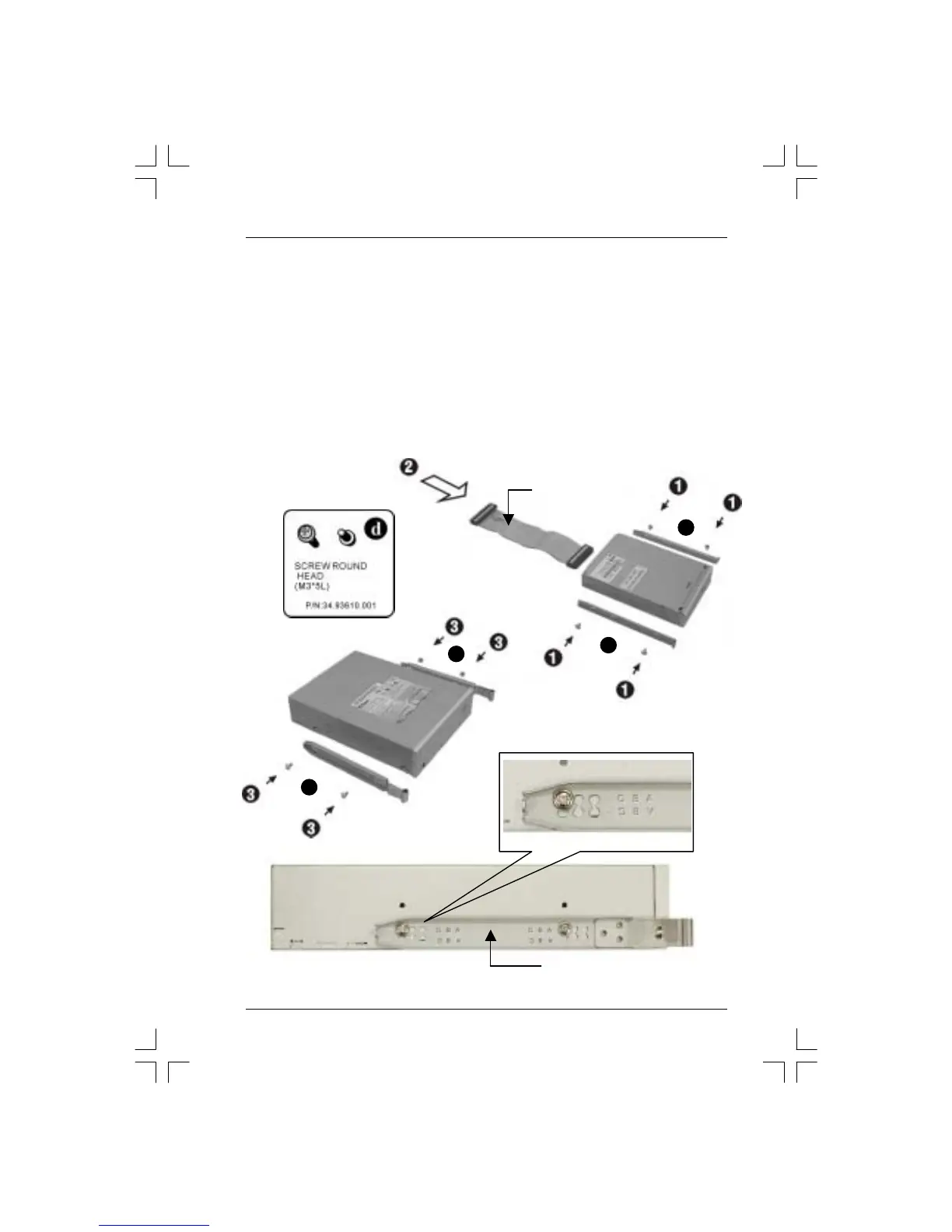

3.3. Fastening Slide Rails to FDD and 5.25” CD-ROM
Secure each slide rails on the left and right side of FDD with four screws.
Connect the FDD cable.
Choose screw hole for slide rails and then secure each slide rails on the left and
right side of 5.25” CD-ROM with four screws. (please screw your device to the
c-hole on the rail if the device is a standard type. If not, please adjust the screw
hole to meet request. )
P/N: 50.01905.001
d
d
d
d
P/N : 60.96505.001
User’s Guide
To Next Page
