3.8. Explosive View, parts and icon

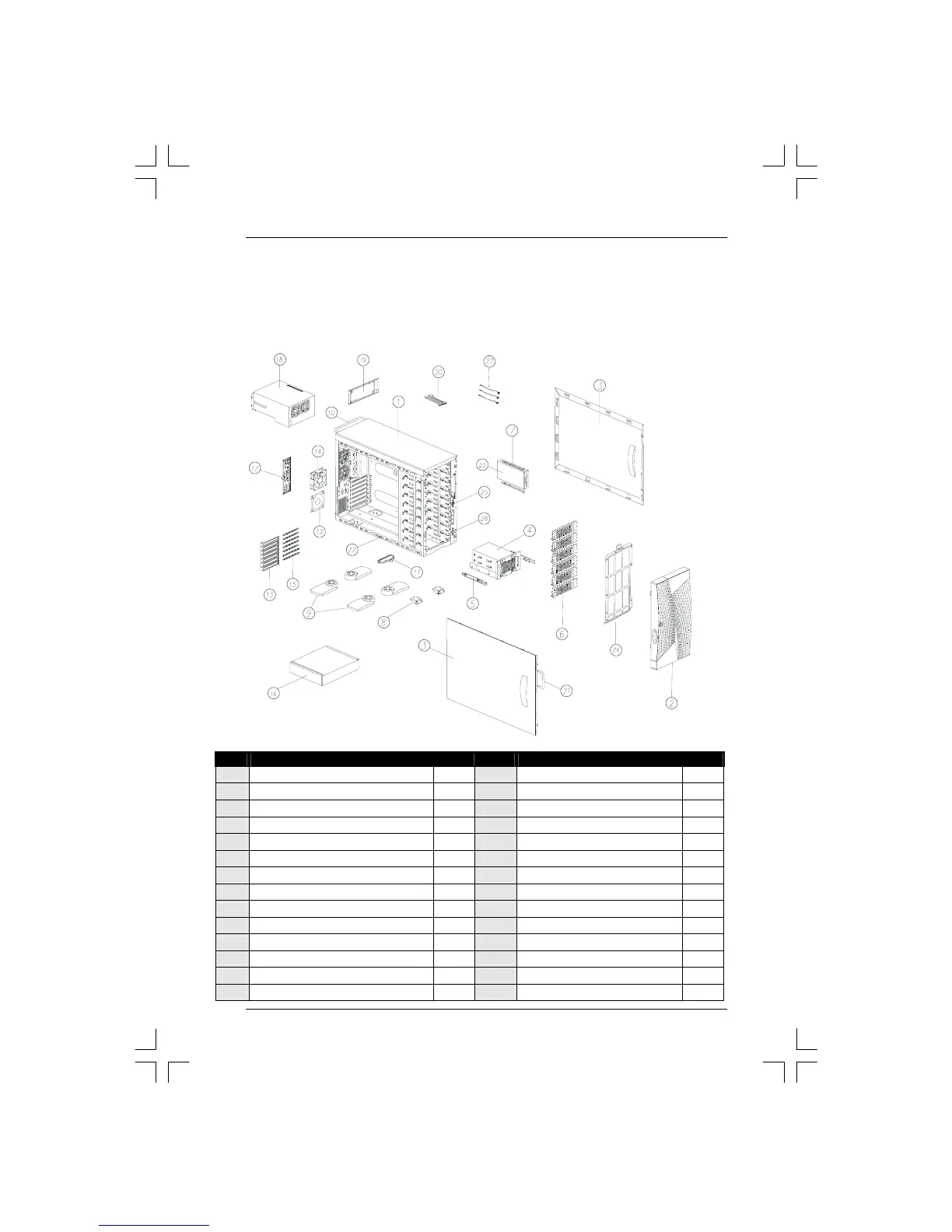

3.8.1. Explosive view
H800 Server Chassis
ITEM PARTS NAME Q’TY ITEM PARTS NAME Q’TY
1
ASS’Y L-CASE ACER 002( C ) H800
1
15
SPRING EMI (LONG)
8
2
PANEL ASS’Y
1
16
BOX FOR H800 ACCESSORY
1
3
SIDE COVER
2
17
ASSY I/O BRACKET A3.2
1
4
HDD CAGE ASS’Y
1
18
POWER SUPPLY
1
5
RAIL ASS’Y
2
19
POWER BRACKET (OPTIONAL)
1
6
EMI COVER
6
20
FDD CABLE
1
7
FDD RAIL
2
21
SIDE COVER HANDSET
1
8
WHEEL (OPTIONAL)
2
22
CABLE & LED SET
3
9
FOOT
4
23
FLOPPY
1
10
HANDSET (OPTIONAL)
1
24
FILTER
1
11
LONG CARD HOLDER
2
25
POWER
1
12
FAN COVER
1
26 RESET 1
13
SLOT I/O SECC
7
27 INTRUSION ALARM 1
14
FAN
1
