Optional Parts Lists
4-1

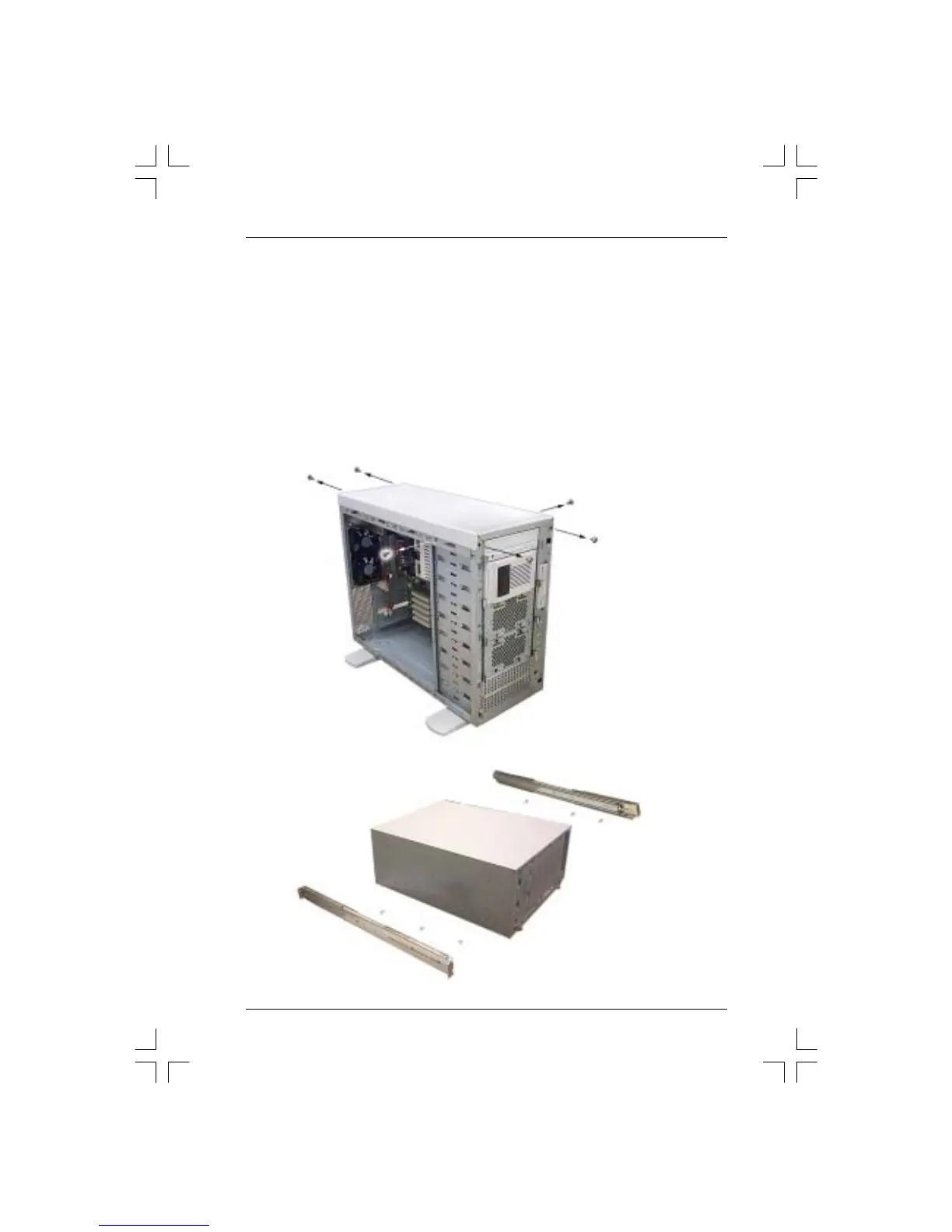

3.7. Rack Mount Placement
Release all handle, wheels, and foot stands first.
Release top cover. Screw off the top cover 6pcs screw then change the top cover
to rack mount type and screw on. For another assembly please follow up rack
mount kits install manual for detail.
Secure each slide tracks on top and bottom of the cover with three screws.
Put the chassis into the rack mount.
Release top
cover
Install rack
mount kits
User’s Guide
