APE 50 - II-2. Hose Identification

7032 SOUTH 196th - KENT, WA 98032 - (253) 872-0141 / FAX (253) 872-8710
OPERATION / MAINTENANCE MANUAL
MODEL 50 VIBRATORY HAMMER WITH MODEL 260 POWER UNIT
1 2 1" Grey hose x 50' #411010
1" Hose #100R12
2 2 1" Grey Hose x 50' #411010
1" Hose #100R12
3 2 3/4" Two Wire Hose x 50' #421009
3/4" 100R2AT w/ #HU1212NJ Ea. End
4 4 3/8" Gates Hose x 50' #421010
w/ #HU66NJ Ea. End
5 1 Fitting #6 JIC Male/#6 Female #421011
6 4 Fitting #24 Male JIC Union #421012
7 2 Fitting #12 Male JIC Union #421013
8 6 Fitting #6 Male JIC Union #421014
9 2 Fitting #16 JIC x #16 Pipe #421018
II. COMPONENT DEFINITION (Continued...)
II-2. Hose Identification
The following is a general listing of the standard hoses that are shipped with the Model 50 Vibra-
tory Hammer. (Please see Figure 2-B. for component location.)
QtyItem Part #Description
QtyItem Part #
Description
Table 2-B. Hose Identification
10 1 Fitting#12 JIC/#12 Pipe #421016
11 1 Fitting #6 JIC/#6 Pipe #421017
12 1 Aeroquip Male Q.D. #5100S112B #421020
13 1 Aeroquip Dust Cap #5100S712B #421021
14 2 Safeway Female Q.D. #S35-3 #421024
15 2 Safeway Male Q.D. #S31-3 #421025
16 2 Safeway Cap #S39-3 #421026
17 2 Safeway Plug #S34-3 #421027
18 2 Q.D. Hydraulic Female Coupling #400301
19 2 Q.D. Hydraulic Male Coupling #400303
20 1 APE Dust Plug #400704
21 1 APE Dust Cap #400703
22 2 Reducer #24 Pipe/#16 Pipe #411045

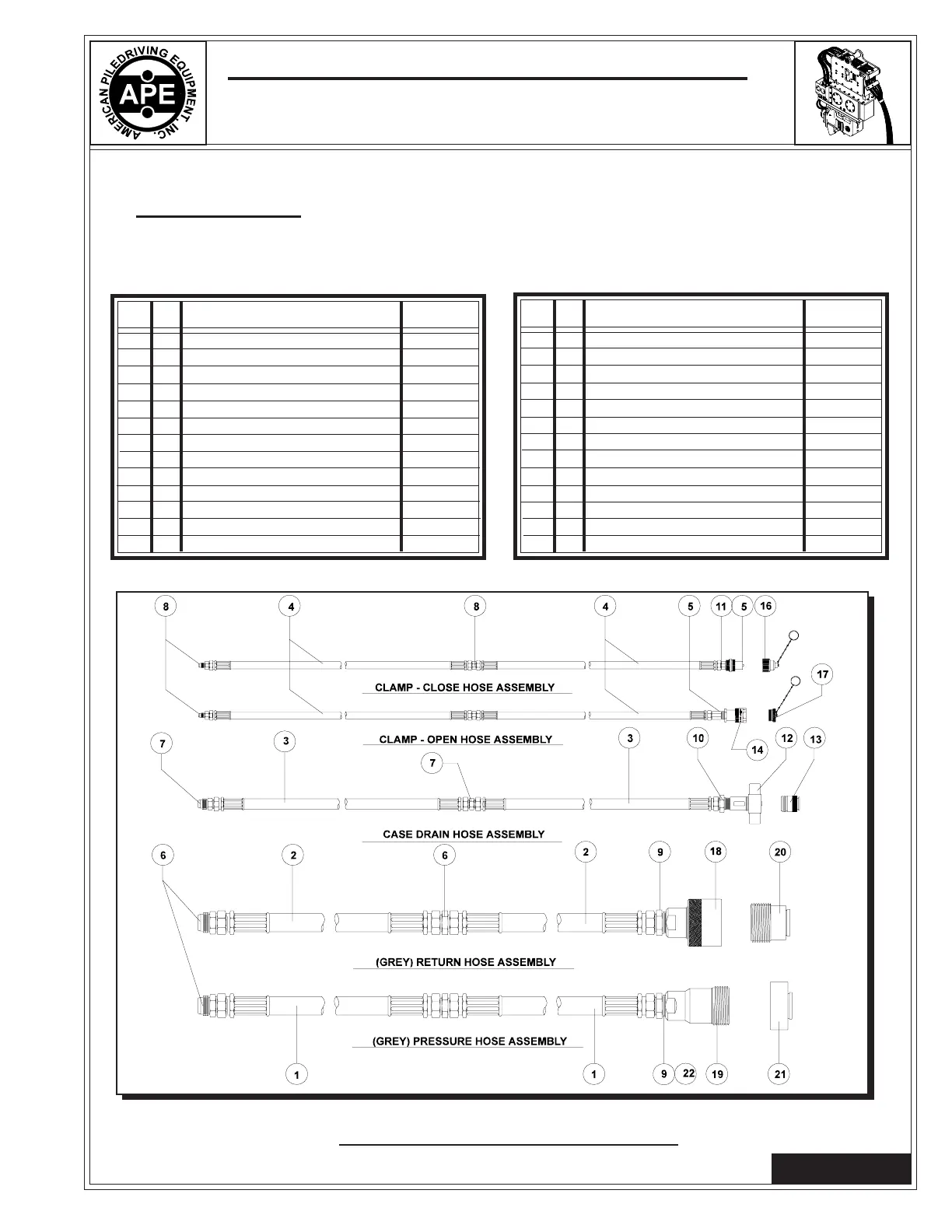

Figure 2-B. Hose Bundle Identification
Page 2-3
