OPERATION / MAINTENANCE MANUAL
MODEL 50 VIBRATORY HAMMER WITH MODEL 260 POWER UNIT
VII. MODEL 260 POWER UNIT (Continued...)

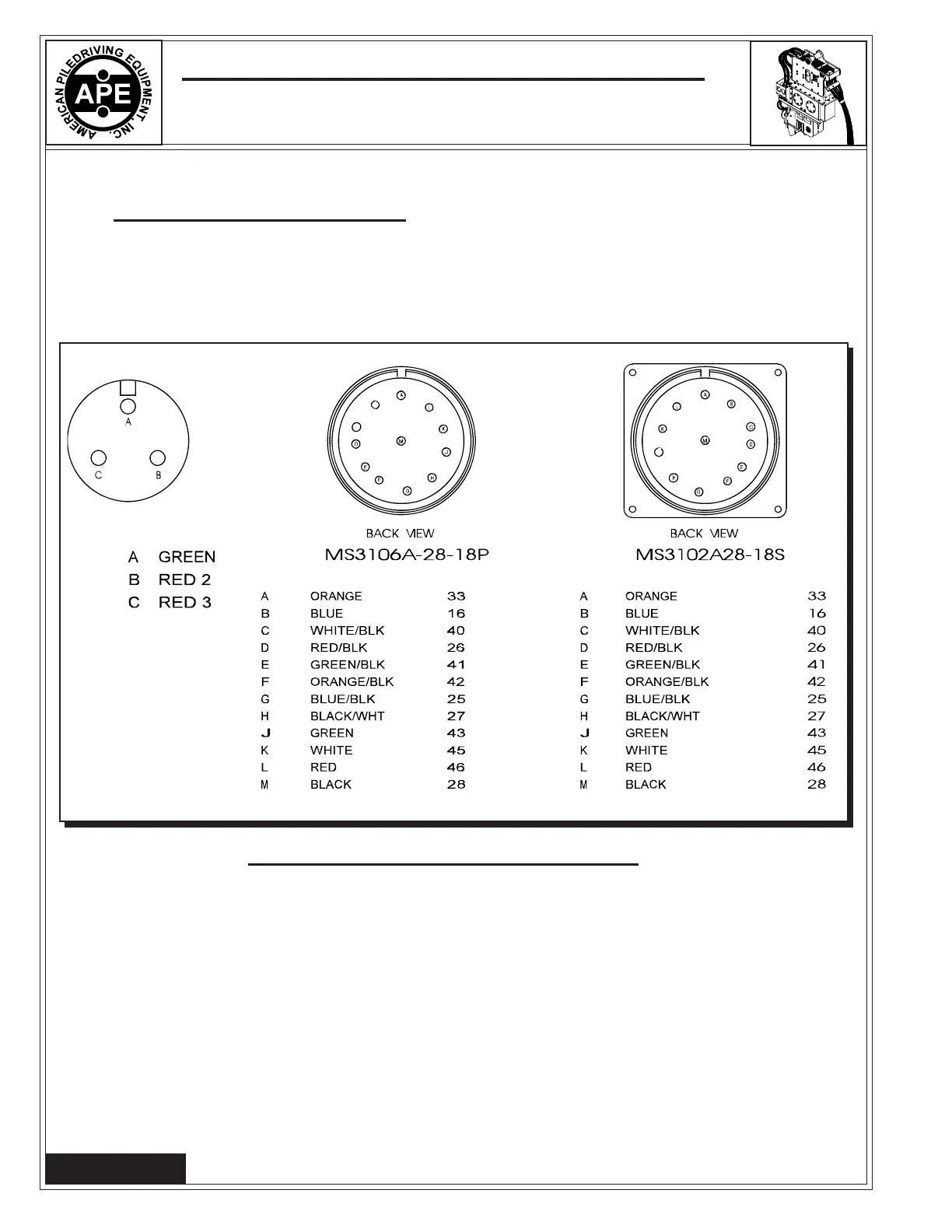

VII-3A. Remote Pendant Wiring Diagram
The following is the pin wiring configuration and the wire colors of the amphenol connectors for
the remote control pendant cable.
Figure 7-C. Remote Pendant Wiring Diagram
J
B
C
Page 7-10
To Next Page
