OPERATION / MAINTENANCE MANUAL
MODEL 50 VIBRATORY HAMMER WITH MODEL 260 POWER UNIT
VII. MODEL 260 POWER UNIT (Continued...)
Page 7- 9
VII-3. Remote Control Pendant
A "REMOTE HAND HELD CONTROL PENDANT" is provided to allow operation of the power unit at
a distance of up to 50 feet (15 meters) and can be extended using 50 foot extension cables. The
"REMOTE HAND HELD CONTROL PENDANT" is connected to the control panel via a multiconnector
plug.
This remote can be used to check all the electrical control valves by simply disconnecting the wire to the
engine oil pressure switch and pushing in the safety shut down button and then turning on the star switch
to the on position. Once this is done, you can walk over to the valves while holding the pendant in your
hand. As you switch the valves you can see the lighted connectors go on and off on the top of the four
solenoids: clamp open, close & drive forward and reverse.

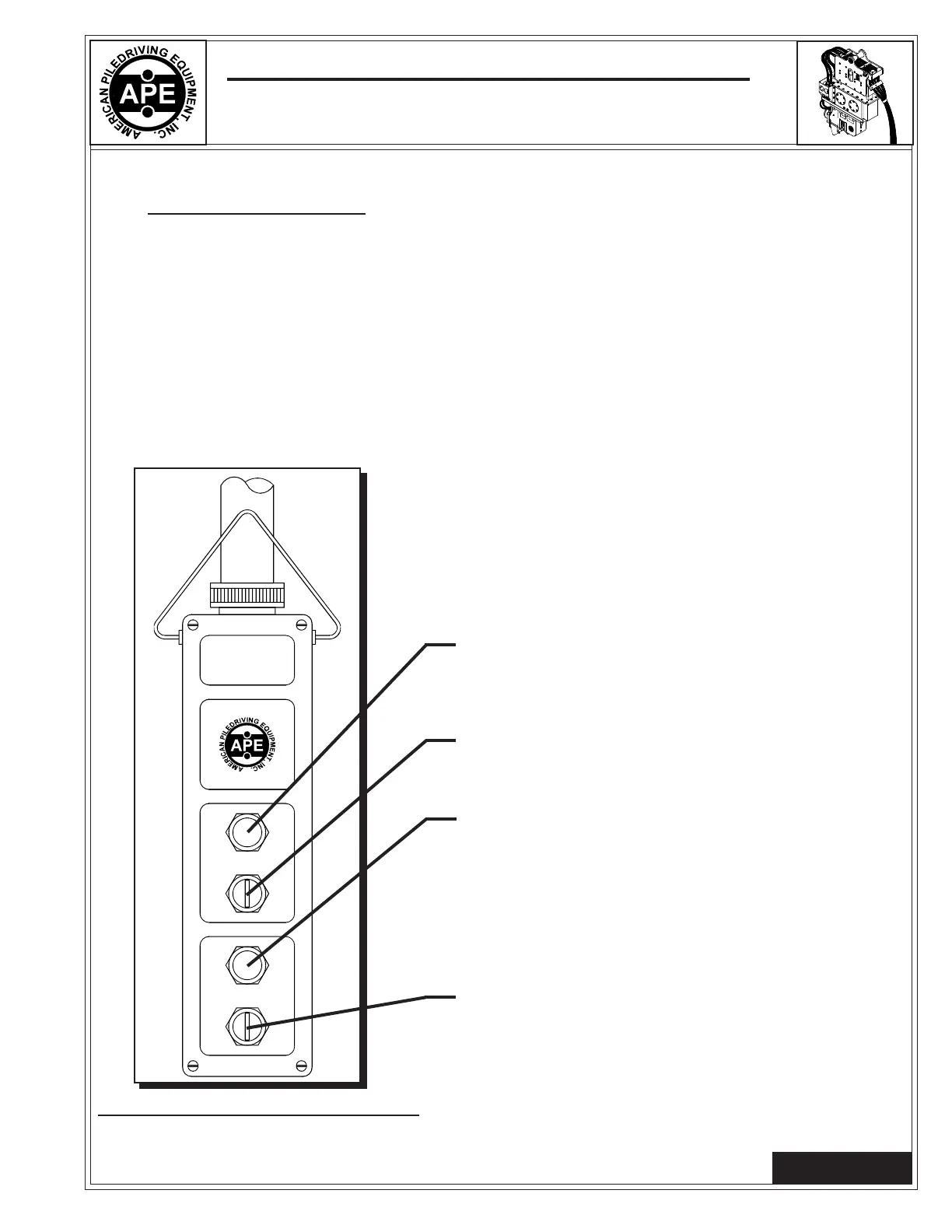

Figure 7-B. Remote Control Pendant
WARNING: Never leave vibro clamped to a pile without the crane line attached. The clamp cylinder could bleed
off causing the vibro to drop. Neverhoist a pile in the air without a safety line attached to the pile. Should the
clamp close line become damaged and leak, the clamp cylinder could lose pressure and drop the pile.
EMERGENCY STOP
GOVERNER
CLAMP
DRIVE
REV
OFF
FWD
RAISE
LOWER
OPEN CLOSE
ENGINE EMERGENCY SHUTDOWN SWITCH
Press and hold to shut engine off. Do not use to shut engine
off at the end of shift. Shut unit off at panel at end of shift. Button
is for emergency only.
ENGINE THROTTLE "RAISE/LOWER" RPM
Three Position Switch.Press and hold button to raise or lower
deisel engine rpm.
CLAMP OPEN/CLAMP CLOSE
Lighted switch. Move to close to extend jaw and clamp vibro
to pile. Light comes on when clamp is closed and locked.Turn
to open to retract jaw and release vibro from pile. Switch must
remain in closed position to hold clamp to pile. Sometimes the
light will not come on. It could be burnt out or shorted. Check
clamp pressure gauge and make sure it reads at least 3800 psi
before vibrating any pile. Contact APE if light is not working.
FORWARD/OFF/REVERSE
Three position switch. Turn to forward to operate vibro. Turn
to off to stop vibro. Turn to reverse when using power unit to
run a drill motor. Vibro is not supposed to vibrate in reverse. If
it does then switch the two yellow cables labled "drive" and
"reverse" located on the other side of the control
panel.
