OPERATION / MAINTENANCE MANUAL
MODEL 50 VIBRATORY HAMMER WITH MODEL 260 POWER UNIT
II. MAJOR COMPONENT DEFINITION (Continued...)
II-4. Quick Disconnect Couplings
The APE Quick Disconnect Couplings are high pressure hydraulic couplings designed for rugged
applications. Service in many such applications has proven the design compatible to extreme
pressures, structural and system induced shock loads. The construction of the coupling assembly
promotes ease of use and maintenance.
Design Features:
- Excellent flow characteristics for continuous duty applications.
- High strength design endures high surge and shock conditions.
- Flat crested stub-ACME threads and all steel construction withstand storage and rig-up
damage.
- Structurally compatible with weight of 5,000 P.S.I. flex-hose and system induced shock loads.
1 1 Q.D. Hydraulic Female Coupling #400301
2 1 Q.D. Hydraulic Male Coupling #400303
3 1 Q.D. Hydraulic Coupling Sleeve #400302
4 1 Q.D. O-Ring Carrier "A" #400202
5 1 Q.D. O-Ring Carrier "B" #400201
6 1 Q.D. Plunger #400101
7 1 Q.D. Plunger #400101
8 1 Q.D. Plunger Spring #400701
9 1 Retaining Ring - "Inverted External" #I-275
10 2 Retaining Ring - "Truarc Internal" #N5000-168
11 2 Parker O-Ring #2-230 & One Parback
12 2 Parker O-Ring #2-216
QtyItem
Description
Table 2-D. Quick Disconnect Coupling Identification

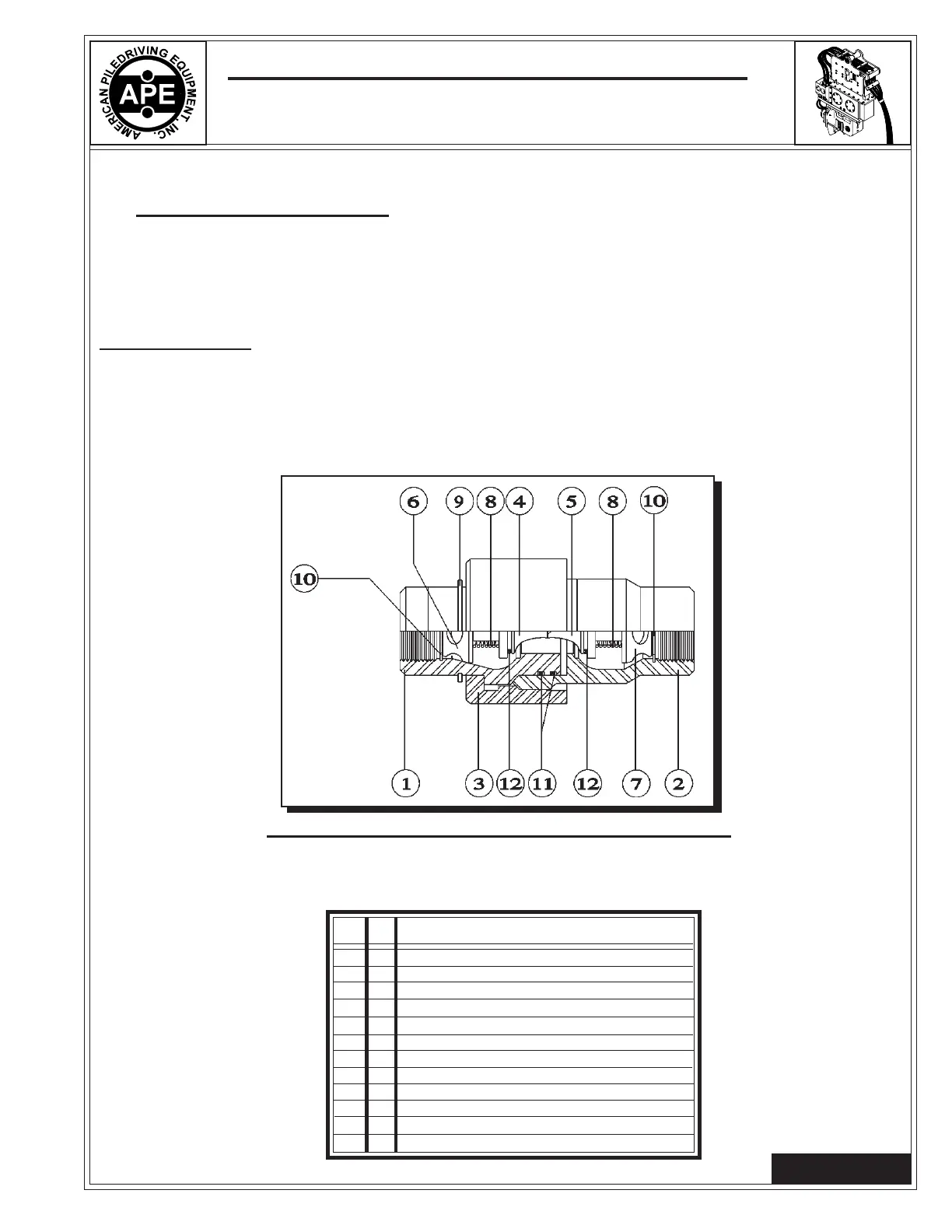

Figure 2-D. Quick Disconnect Coupling Identification
Page 2-5
